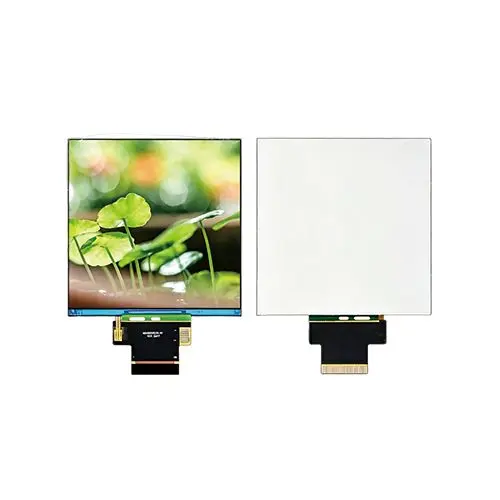

Product Overview
The NoseDisplay ND039TSN320320-A01 is a 3.9-inch IPS TFT display module with a 320×320 image format and MCU/SPI interface options. Its ST7796 controller is identified in the module parameters, while the required operating configuration should be checked in the model-specific documentation. The square display format can be evaluated for embedded control interfaces, smart home panels and compact instruments. Engineers should confirm host signaling, initialization, connector pin assignments and enclosure fit before integration. NoseDisplay provides specification and drawing support for module evaluation and discussions of touch or other customization requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND039TSN320320-A01 |
| Display Size | 3.9 inch |
| Resolution | 320×320 pixels |
| Display Type | IPS TFT LCD |
| Display Mode | Transmissive |
| Touchscreen | No (Optional with Yes) |
| Outline Dimensions | 74.72 × 76.86 × 2.10 mm |
| Active Area | 71.136 × 69.824 mm |
| Parameter | Specification |
| Supply Voltage | 2.8V-3.3V |
| Luminance | 320 cd/m² |
| Display Interface | MCU/SPI |
| Connection Type | 40 pin connector |
| IC | ST7796 |
| Weight | -- |
| Operating Temperature | −20°C to +70°C |
| Storage Temperature | −30°C to +80°C |

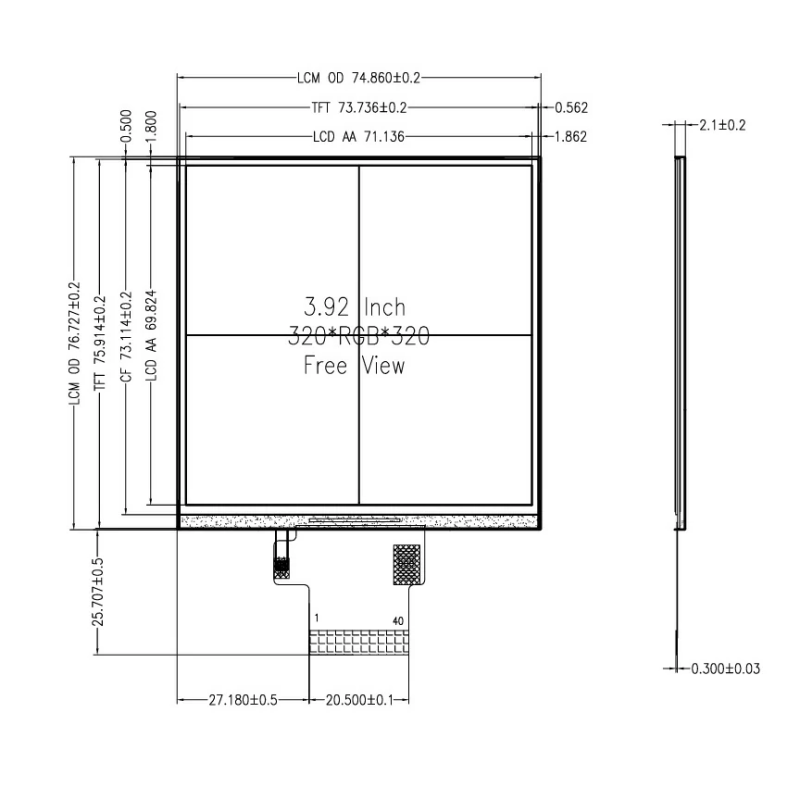

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | LEDK | Backlight Cathode |
| 02 | LEDA | Backlight Anode |
| 03 | GND | Ground |
| 04 | VCC | POWER SUPPLY |
| 05 | IOVCC | I/O POWER SUPPLY |
| 06 | GND | Ground |
| 07 | RESET | Reset |
| 08 | CS | Chip Select |
| 09 | RS | Data/Command Select |
| 10 | WR | Write Enable |
| 11 | RD | Read Enable |
| 12 | GND | Ground |
| 13 | IM0 | Interface Mode Select |
| 14 | IM1 | Interface Mode Select |
| 15 | IM2 | Interface Mode Select |
| 16 | SDO | Serial Data Output |
| 17 | SDA | SPI Data |
| 18 | GND | Ground |
| 19 | DB0 | Data Bus |
| 20 | DB1 | Data Bus |
| 21 | -- | -- |
| 22 | DB3 | Data Bus |
| 23 | DB4 | Data Bus |
| 24 | -- | -- |
| 25 | DB6 | Data Bus |
| 26 | DB7 | Data Bus |
| 27 | DB8 | Data Bus |
| 28 | DB9 | Data Bus |
| 29 | DB10 | Data Bus |
| 30 | DB11 | Data Bus |
| 31 | DB12 | Data Bus |
| 32 | DB13 | Data Bus |
| 33 | DB14 | Data Bus |
| 34 | DB15 | Data Bus |
| 35 | GND | Ground |
| 36 | CTP-VDD | Touch Power Supply |
| 37 | -- | -- |
| 38 | CTP-SCL | Touch I2C Clock |
| 39 | CTP-INT | Touch Interrupt |
| 40 | STP-RST | Touch Reset |
