NDTI50480854 | TFT Display 5 inch 480x854 Resolution IPS Screen SPI Interface ST7701SN Controller Full View
The NDTI50480854 5 inch IPS display delivers sharp and vivid visuals with a 480×854 resolution and IPS full viewing angles. Designed with a SPI interface and ST7701SN controller, this module ensures smooth performance and wide compatibility. Measuring 86.29mm x 146.80mm x 3.75mm, it provides a 5 inch screen with an active area of 61.56mm x 109.53mm, perfect for compact yet powerful embedded projects.
With 380cd/m² brightness, it offers excellent visibility, while the optional capacitive touchscreen enhances interactivity. The display is fully compatible with Arduino, Raspberry Pi, and similar development boards, making it an ideal 5 inch LCD screen for Raspberry Pi projects, IoT devices, handheld terminals, and industrial applications. Its wide operating temperature range (-20°C to 70°C) ensures reliability in diverse environments.
Search Keywords: 5 inch screen, 480×854 Resolution, 5 inch display, 5 inch screen, screen 5 inches, 5 inch screens, 5 inch tft screen, 5 inch display raspberry pi, 5 inch lcd, 5 lcd display, 5 inch lcd display, 5 inch touch screen, 5 screen, 5 lcd screen, 5 inch lcd screen, 5 inch tft display arduino
Specifications
| Part No.: | NDTI50480854 |
| Size: | 5.0 inch |
| Display Format: | 480×854 Resolution |
| Display Type: | IPS Display |
| Display Mode: | Transmissive |
| Touchscreen: | Yes (Optional with No) |
| Optimal View: | Full View |
| Outline Dimension: | 86.29 (H) X146.80(V) X3.75(T) mm |
| Active Area: | 61.56(H) X109.53 (V) mm |
| Supply Voltage: | 2.8V |
| Luminance | 380cd/m² |
| Interface: | SPI |
| Connection Type: | 40 pin connector |
| Controller： | ST7701SN-G5-1 |
| Compatibility: | Arduino and similar development boards |
| Operating Temperature: | -20°C ~ 70°C |
| Storage Temperature: | -30°C ~ 80°C |
| Mount Frame: | None |

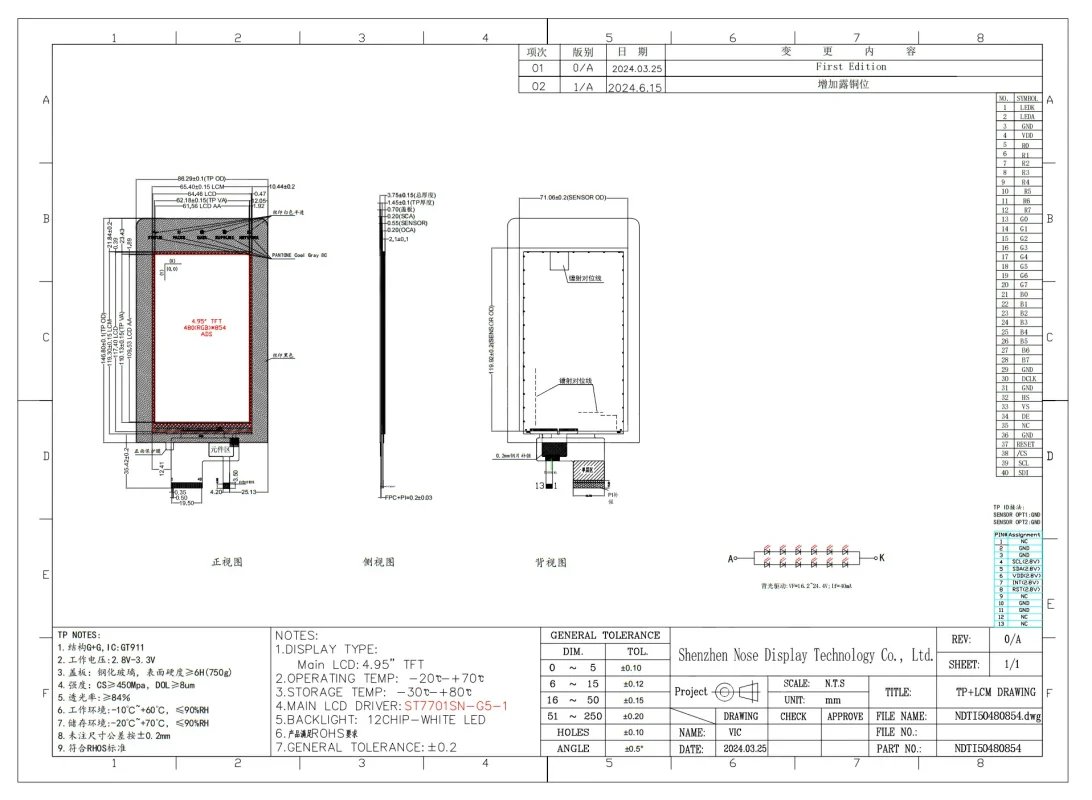

Display Drawing
Interface Definition
| NO. | Symbol | Level | Description |
|---|---|---|---|
| 1 | LEDK | LEDK | |
| 2 | LEDA | LEDA | |
| 3 | GND | Ground | |
| 4 | VCC | Power setting | |
| 5-12 | R0-R7 | Red data | |
| 13-20 | G0-G7 | Green data | |
| 21-28 | B0-B7 | Blue data | |
| 29 | GND | Ground | |
| 30 | CLK | Pixel clock | |
| 31 | GND | Ground | |
| 32 | HS | Horizontal Sync input | |
| 33 | VS | Vertical Sync input | |
| 34 | DE | Data input enable | |
| 35 | NC | No connection | |
| 36 | GND | Ground | |
| 37 | RESET | This signal wll reset the device and it must be applied to properly | |
| 38 | CS | -Chip selection pin | |
| 39 | SCL | Serial command clock input | |
| 40 | SDI | Serial command data input |
Custom 5'' TFT Display
We offer customized 5.0'' TFT LCD modules, giving you the flexibility to define specifications like resolution, brightness, interface options, and touch functionality. Our services also include PCB layout, connector adjustments, and cover glass design to ensure dependable performance and smooth integration with your system.
LCD Connector Custom
Cable length and connector positioning for 5.0” LCD modules can be customized to fit your design, ensuring stable operation and seamless system integration.
Custom LCD Interfaces
“5.0” LCD modules support flexible cable lengths and connector arrangements, providing stable performance and easy integration into your system.

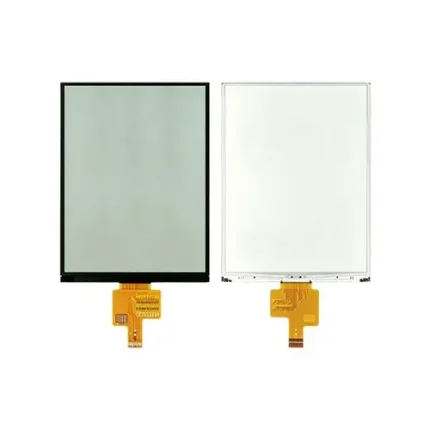

5.0'' LCD PCB Design
The 5.0” LCD modules are compatible with multiple interfaces such as MCU parallel, LVDS, SPI, RGB, HDMI, and MIPI DSI. Our team assists in choosing the most suitable interface
5.0'' Touchscreen Adds
Upgrade your 5.0” TFT display with capacitive or resistive touch, providing smooth integration, accurate control, and a more natural user interaction.
