7.0″ UART HMI Touch Display for Embedded Control

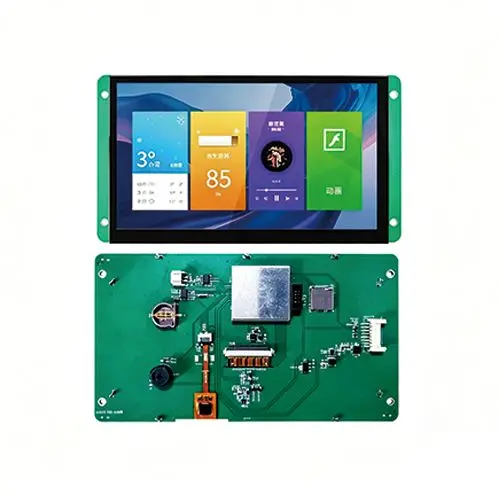

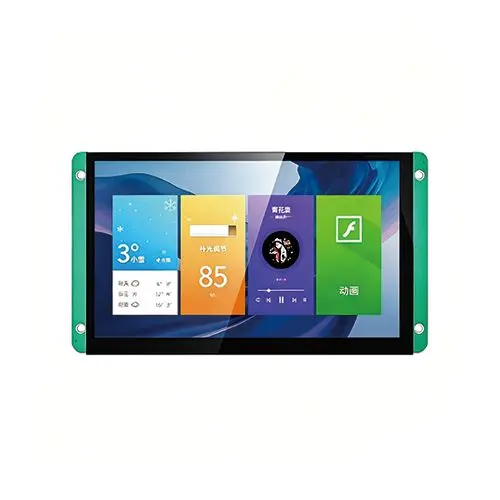

The ND070SHG800480-C01 is a 7.0-inch UART HMI touch display designed for embedded control, smart equipment, industrial interfaces, and interactive display applications. It combines an 800×480 TN TFT display, capacitive touchscreen, GC924G-N60I controller, and TTL UART or RS-232 communication options in an open-frame module.
The TTL UART version can be integrated with Raspberry Pi, Arduino, ESP32, and other UART-capable controllers when the signal voltage levels are correctly matched. Raspberry Pi GPIO UART uses 3.3 V logic, so confirm the display-module UART logic level before connection. The RS-232 version requires an appropriate RS-232 transceiver or converter and must not be connected directly to GPIO UART.
7.0″ UART HMI Touch Display Technical Specifications
| Model | ND070SHG800480-C01 |
|---|---|
| Display | 7.0″ TFT LCD, 800 × 480 |
| Display Type | TN TFT |
| Brightness | 250 cd/m² |
| Touch | Capacitive Touchscreen (CTP) |
| HMI Controller | GC924G-N60I |
| Communication Protocol | UART Serial Protocol |
| Interface Options | TTL UART or RS-232, depending on configuration |
| Power Input | 12 V DC |

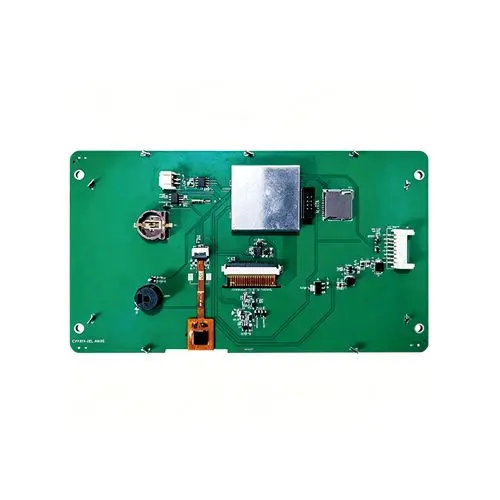

| Structure | TFT + PCBA + CTP |
| Serial Connector | 8-Pin Connector, 2.0 mm Pitch |
| Overall Dimensions | 193.50 × 116.41 × 18.45 mm |
| Active Area | 154.01 × 86.72 mm |
| Mounting | Open-Frame / Embedded Integration |
| Operating Temperature | −20°C to +70°C |
| Storage Temperature | −30°C to +80°C |
| Controller Compatibility | Raspberry Pi, Arduino, ESP32, and other UART-capable controllers through the TTL UART version with confirmed logic-level matching; use an appropriate transceiver for RS-232 |
Mechanical Drawing
Development and Integration Support
GUI software, command protocol, pin definitions, interface documentation, and sample code are supplied according to the confirmed hardware and firmware configuration. Contact NoseDisplay with model ND070SHG800480-C01 and the required TTL UART or RS-232 version for the applicable development package.
Customization Options
Hardware Customization
Optional customization includes display brightness, touch solution, external memory, PCBA functions, connector layout, power input, and mechanical structure.
Interface Customization
Available standard communication configurations include TTL UART and RS-232. Additional communication interfaces may be developed based on project requirements and engineering evaluation.
Software & UI Customization
Optional services include GUI development, command protocol customization, multilingual fonts, icons, themes, boot screens, and application-specific interface design.
Environmental Customization
Optional enhancements may include extended-temperature components, optical bonding, customized cover glass or enclosures, EMC improvements, and upgraded environmental protection. Final specifications are subject to engineering evaluation.
