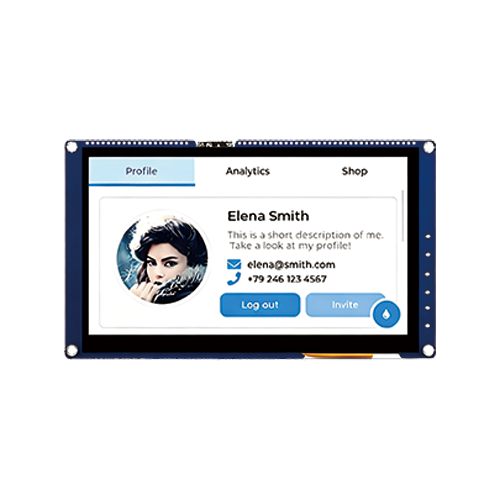

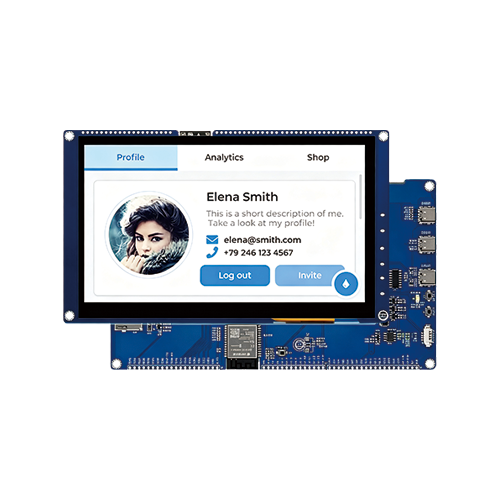

7 Inch 1024x600 ESP32-P4 Smart Display UART RS485 WiFi6 Touch HMI IPS TFT Module
The ND070SHG1024600E-A is a high-performance 7 inch 1024×600 smart HMI display designed for embedded and industrial applications. Powered by an ESP32-P4 dual-core 400MHz processor with an ESP32-C6 co-processor, it delivers strong computing performance with WiFi 6 and Bluetooth 5 connectivity.
Featuring a MIPI-DSI IPS TFT touchscreen, 32MB PSRAM, and 16MB Flash, it supports smooth LVGL-based GUI development. Rich interfaces including UART, RS485, USB OTG, SDIO, and GPIO enable easy integration with MCUs and PLCs.
With camera, audio, and multimedia support, it is ideal for industrial control, smart home, medical, EV charging, and AIoT edge applications.
Product Features
High Performance Processing – ESP32-P4 dual core 400MHz with 32MB PSRAM ensures smooth multitasking and complex GUI rendering;
Advanced Connectivity – Integrated ESP32-C6 enables WiFi 6 and Bluetooth 5 for reliable high speed wireless communication;
Rich Display Experience – 7 inch 1024×600 IPS with MIPI DSI interface provides wide viewing angles and vivid color output;
Touch Interaction – Capacitive multipoint touchscreen ensures fast accurate and responsive touch user interaction experience;
Multimedia Acceleration – Built-in PPA and H264 support enables 1080P video and advanced 2D graphics processing performance;

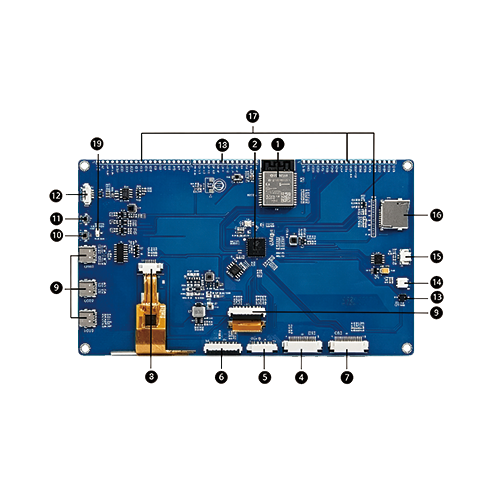

Industrial Interfaces – Supports UART RS485 USB OTG SDIO and GPIO for flexible industrial and integration applications;
AIoT Ready Design – Supports MIPI CSI camera microphone and speaker for AI vision and voice interaction applications;
Rapid Development – Compatible with ESP-IDF Arduino and LVGL frameworks reducing development time and integration complexity;
Reliable Industrial Grade – Robust design ensures stability durability and long term operation in harsh industrial environments.Application Scenarios
Smart home control panels with real-time data visualization and intuitive touch interaction
Industrial automation HMI for monitoring equipment, sensors, and production line status
EV charging station interfaces with dynamic UI and wireless connectivity support
Medical device displays requiring stable performance and responsive multi-touch control
AIoT edge devices integrating camera, voice, and cloud-based communication features
Portable diagnostic tools with compact design and high-performance graphical interfaceCompetitive Advantages
Dual-chip architecture combining ESP32-P4 computing power and ESP32-C6 wireless connectivity
400MHz RISC-V CPU with large PSRAM enables smooth LVGL graphics and multitasking
Integrated Wi-Fi 6 and Bluetooth 5 ensure fast, stable, and future-proof communication
Rich interfaces including RS485, USB OTG, SDIO, and multiple GPIO expansion options
Built-in multimedia support with H.264 encoding, camera input, and audio interfaces
Optimized for rapid development with LVGL, Arduino, and ESP-IDF ecosystem supportSpecifications

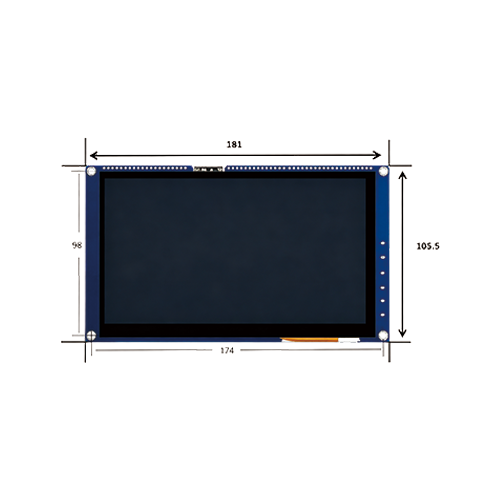

Weight: 0.3 kg Dimensions: 26 × 15 × 6 cm Model ND070SHG1024600E-A OS RTOS CPU ESP32-P4 400Mhz Ram 32MB Flash 16MB Wireless 2.4GHz Wi-Fi 6 + Bluetooth 5 LE Interface RS485/UART/USB Display Type IPS TFT Screen Size 7 Inch Resolution 1024*600 Brightness 350 cd/m2 Touch Screen Capacitive Outline Demension 105.36(W)*67.1(H)*2.88(D) Operating Voltage 5V Operating Current 150mA Operating Temp -20~70℃ Storage Temperature -30-80°C
Custom Your Display
We provide fully customized 7.0-inch Serial Display, covering both hardware and software aspects. Our tailored solutions facilitate smooth integration, accelerate development, and deliver dependable performance, enabling you to bring unique, high-quality products to market efficiently.
LCD Hardware Customization
We offer fully customized 7.0-inch Serial Display, giving you the ability to adjust size, resolution, panel type, touch functionality, brightness, power supply, and PCB design—ensuring seamless integration and an optimized experience for end users.
LCD Interface & Communication Custom
Our 7.0-inch Serial Display support customizable UART, CAN, and SPI interfaces, offering versatile protocol options to guarantee dependable performance and smooth integration for your LCD applications.
LCD Software Customization
For 7.0-inch Serial Display, we create tailored UIs, icons, themes, and multilingual fonts, integrating storage, command sets, and development resources—enabling faster product launches with distinctive and robust functionality.
LCD Industrial Grade Adaptation
For 7.0-inch Serial Display, we adapt modules for industrial and automotive use, supporting temperature ranges from -40°C to 85°C, with IP65/IP67 sealing, enhanced EMC performance, and vibration-resistant design—delivering durable and dependable operation in demanding environments.
