Product Overview

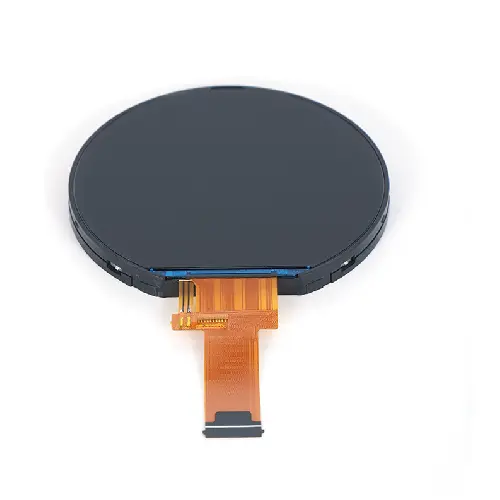

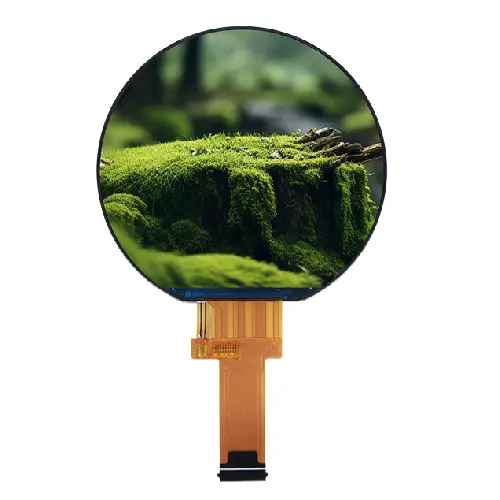

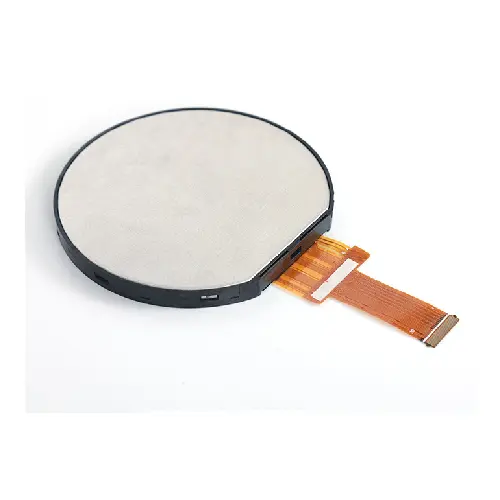

NoseDisplay ND036TRN544506-A01 is a round IPS TFT LCD module with a mounting frame for instrument displays, equipment controls, smart appliances and embedded IoT interfaces. Its high brightness supports evaluation for interfaces used in bright ambient conditions, while the display format suits graphical dials, sensor readings and status dashboards. The ST72566 controller and LVDS interface require suitable host hardware, display timing, firmware, power and backlight circuitry; STM32, ESP32, Arduino and Raspberry Pi projects need an appropriate driver solution. NoseDisplay supports OEM FPC integration, cover lens options and mechanical evaluation for circular display designs.
NoseDisplay ND036TRN544506-A01 is a round IPS TFT LCD module with a mounting frame for instruments, equipment controls and embedded IoT interfaces. Its high brightness suits evaluation in bright ambient conditions. The ST72566 controller and LVDS interface require suitable display hardware and firmware; STM32, ESP32, Arduino and Raspberry Pi projects need an appropriate driver solution. NoseDisplay supports OEM FPC, cover lens and mechanical evaluation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND036TRN544506-A01 |
| Display Size | 3.6 Inch |
| Resolution | 544×506 pixels |
| Display Type | IPS TFT LCD |
| Display Mode | Transmissive |
| Touchscreen | None (touch options) |
| Outline Dimensions | 98.80 × 94.12 × 7.79 mm (with frame) |
| Active Area | 89.76 × 83.49 mm |
| Parameter | Specification |
| Supply Voltage | 2.8 ~ 3.3 V |
| Luminance | 1000 nits |
| Display Interface | LVDS (24-bit RGB options ) |

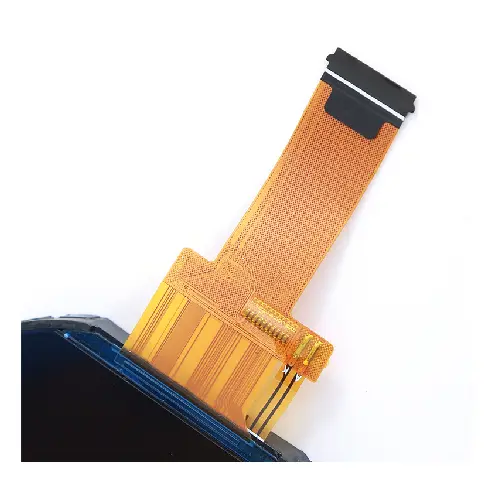

| Connection Type | 30-pin connector |
| IC | ST72566 |
| Weight | 35±3g |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -30°C ~ 80°C |

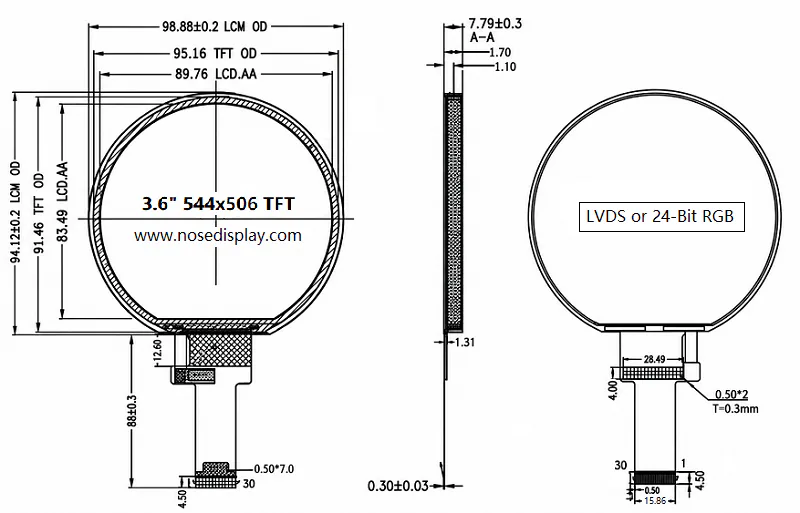

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | LED_A | LED backlight anode |
| 2 | LED_K | LED backlight cathode |
| 3 | LVDS_D3N | LVDS_DSI DATA signal (Level: H/L) |
| 4 | LVDS_D3P | LVDS_DSI DATA signal (Level: H/L) |
| 5 | GND | Ground |
| 6 | LVDS_D2N | LVDS_DSI DATA signal (Level: H/L) |
| 7 | LVDS_D2P | LVDS_DSI DATA signal (Level: H/L) |
| 8 | GND | Ground |
| 9 | LVDS_CLKN | LVDS_DSI clock signal (Level: H/L) |
| 10 | LVDS_CLKP | LVDS_DSI clock signal (Level: H/L) |
| 11 | GND | Ground |
| 12 | LVDS_D1N | LVDS_DSI DATA signal (Level: H/L) |
| 13 | LVDS_D1P | LVDS_DSI DATA signal (Level: H/L) |
| 14 | GND | Ground |
| 15 | LVDS_D0N | LVDS_DSI DATA signal (Level: H/L) |
| 16 | LVDS_D0P | LVDS_DSI DATA signal (Level: H/L) |
| 17 | GND | Ground |
| 18 | IOVCC | Power supply for LVDS Signal (Level: H) |
| 19 | IOVCC | Power supply for LVDS Signal (Level: H) |
| 20 | BIST | Built in self Test Pin |
| 21 | SDA | SPI data signal (Level: H/L) |
| 22 | SCL | SPI clock signal (Level: H/L) |
| 23 | STANDBYB | Device Standby pin |
| 24 | RESET | the reset Pin (Level: H/L) |
| 25 | CS | Chip selection pin (Level: H/L) |
| 26 | AVDD | Supply voltage for logic |
| 27 | GND | Ground (Level: L) |
| 28 | VDD | Power setting for Display (Level: H) |
| 29 | VDD | Power setting for Display (Level: H) |
| 30 | VCOM/NC | nc |
Sample Ordering & Delivery
Samples are available for engineering evaluation. Shipping excludes import duties and taxes. Estimated delivery times are in calendar days, including 4 days of preparation. Final terms are confirmed before payment.
Sample MOQ
3 pcs per modelMinimum order quantity.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
Typical Applications & Customization
NoseDisplay supports round TFT LCD and rotary knob display projects for smart controls, appliances, instruments, robotics and embedded IoT devices. OEM engineering support covers display selection, circular UI layouts, mechanical design, touch and cover lenses, FPC connections and driver board integration.
Explore round LCD and rotary knob display applications, with OEM support for display selection, circular UI layouts, housings, cover lenses and driver boards.
BCDTEK Industrial ParkTypical Applications
Illustrative applications across our round display and rotary knob range. Display size, touch, enclosure and driver hardware are selected for each project.
Smart Home Controls
Round thermostat displays for HVAC settings, room temperature and smart home control.
Smart Appliance Controls
Round LCD interfaces for blender modes, kitchen appliances and operating status.

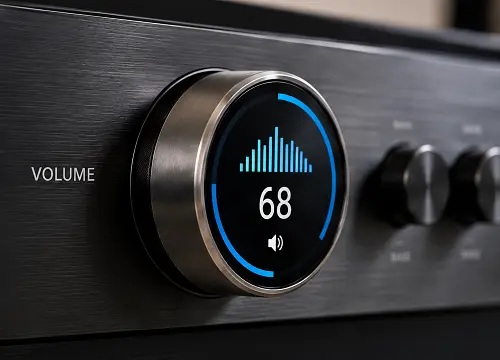

Rotary Control Interfaces
Circular knob displays for audio volume adjustment, menu navigation and parameter selection.
Motorcycle Dashboards
Circular instrument displays for speed, vehicle status and dashboard information.

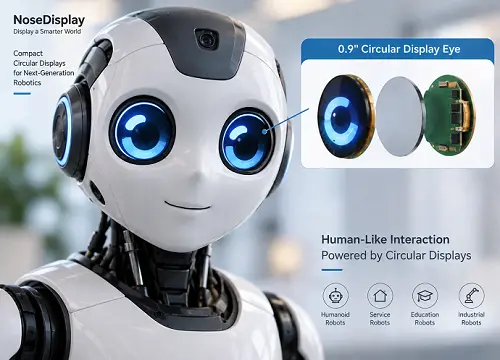

Robot Eye Displays
Miniature circular screens for animated robot eyes, expressions and interactive devices.
Robotic Lawn Mowers
Round equipment displays for mowing modes, battery status and local controls.
Monitoring Instruments
Circular readouts for sensor values, measurement status and equipment monitoring.
AI Desktop Companions
Round displays for animated expressions, assistant status and interaction in AI companion devices.
Customization Options
Engineering options are evaluated according to the selected module and OEM project requirements.
Display & UI Options
Review round display size, resolution, brightness and circular UI layouts for your OEM application.

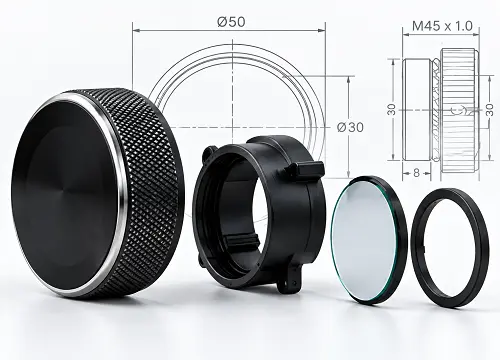

Knob & Housing Design
Evaluate knob dimensions, enclosure materials, mounting details and mechanical fit for your product.

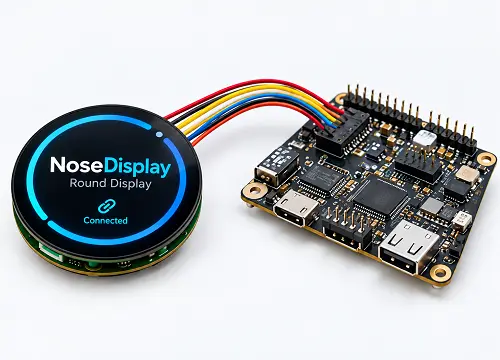

PCB & Interface Integration
Review FPC connections, adapter PCBs, driver boards and host interfaces for the selected display.
Prototype & Firmware Evaluation
Evaluate display driving, animation firmware and controller compatibility during prototype development.
Quality & Compliance Support
We provide quality and compliance documentation for qualified OEM projects
based on the selected module, BOM and manufacturing configuration.
RoHS
EU RoHS compliant materials and process control
REACH
Support REACH regulation compliance
Reliability Testing
Environmental & mechanical reliability testing reports
ESD Control
ESD protection design and testing capability
Quality System
Manufactured under a certified quality management system
Documentation availability and scope are confirmed according to the selected module, BOM, manufacturing source and project requirements.
