NDTC801001 | Character 8x1 LCD Display FSTN Grey 8x1 LCD Display White Backlight SPLC780C controller 6800 Parallel Interface
Upgrade your embedded projects with our 8×1 Character LCD Display — a compact yet powerful solution for engineers who value performance, durability, and easy integration. Featuring FSTN-LCD Grey technology with a transflective mode, this module guarantees clear, sharp visibility whether indoors or under bright light.
Powered by trusted controller IC SPLC780, this display ensures seamless compatibility and industry-standard reliability. With a white LED backlight, developers can achieve crisp contrast and effortless readability in any environment.
Its compact outline dimension (55.0 × 17.0 × 8.5 mm) and slim viewing area (39.5 × 8.0 mm) make it a perfect choice for space-constrained designs such as handheld devices, industrial meters, and portable instrumentation. The 6800 4/8-bit parallel interface with 16-pin connection makes it truly plug-and-play with Arduino, Raspberry Pi, Adafruit, and similar development boards, saving both time and development costs.
Built for demanding applications, this 8×1 LCD display operates reliably in a -20°C to 70°C range and stores safely from -30°C to 80°C. Whether you need an 8×1 character display for consumer products, industrial control, or prototyping, this module delivers professional-grade performance at cost-effective value.
Why Choose Our 8×1 Character LCD?
Crystal-clear visibility with FSTN transflective technology
Wide compatibility with multiple industry-standard controllers
Compact size designed for portable and embedded devices
Reliable durability for harsh industrial environments
Easy integration with Arduino and development boards
Specifications
| Display Format: | 8×1 Characters |
| Display Type: | FSTN-LCD Grey |
| Display Mode: | Transflective |
| Controller IC: | AIP31066/HD44780/KS0066/SPLC780/ST7066 |
| Viewing Angle: | 6:00 |
| Outline Dimension: | 55.0(W)x17.0(H)x8.5(T)mm |
| Viewing Area: | 39.50×8.00mm |
| Supply Voltage: | 5V |
| Backlight: | White Color |
| Interface: | 6800 4/8-bit parallel |
| Connection Type: | 16 Pin |
| Compatibility: | Arduino and similar development boards |
| Operating Temperature: | -20°C ~ 70°C |
| Storage Temperature: | -30°C ~ 80°C |

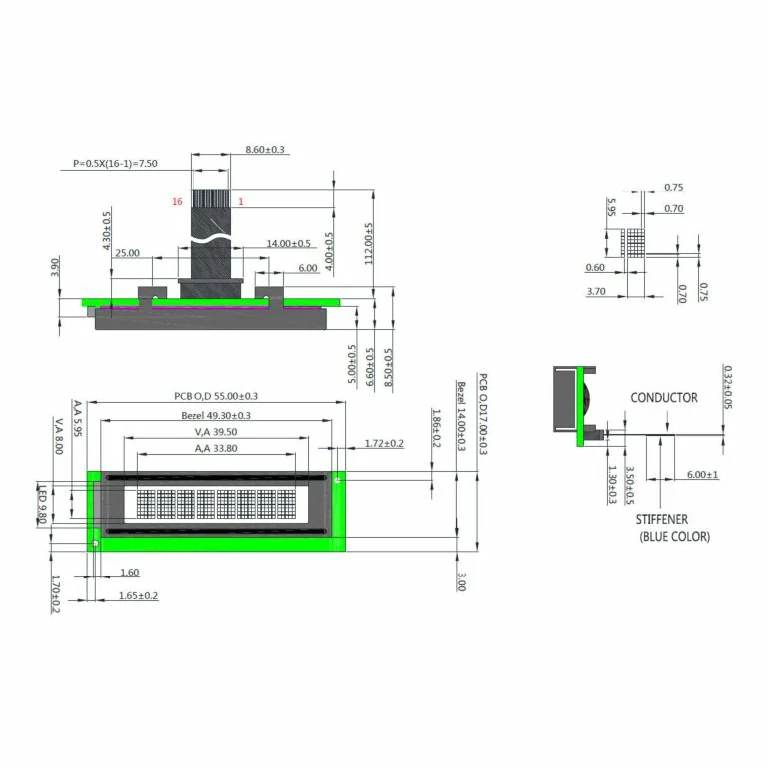

Display Drawing
Custom 8x1 Character Display Solutions
We deliver tailored custom display solutions with flexible sizes, interfaces, and designs, including 8x1 character displays, to perfectly match your product’s application needs.
Cable Customization
Customize the cable length, position, and pinout to perfectly fit the compact 8×1 character FSTN-LCD display. Add connectors or modify configurations for secure and efficient connections to your hardware.
Connector Custom
Modify connectors for your 8×1 character FSTN-LCD display to meet your specific needs. Our engineers can handle soldering pin headers, right-angle headers, or any other connectors to ensure seamless integration with your design.
Interface Custom
Choose from a variety of interface options like HDMI, USB, SPI, and more to ensure smooth integration with your 8×1 character LCD display. Our team will assist you in selecting the best interface for your project’s specific requirements.
Tailored PCB Design
Tailor the shape, size, pinout, and component layout of your PCB to perfectly integrate with the 8×1 character FSTN-LCD display. We offer a wide range of customization options to ensure flawless PCB integration.
