ND116THM19201080A01 | 11.6 Inch IPS LCD Display 1920x1080 LVDS High Brightness Industrial Display Wide Temp BOE QV116FHB-N81

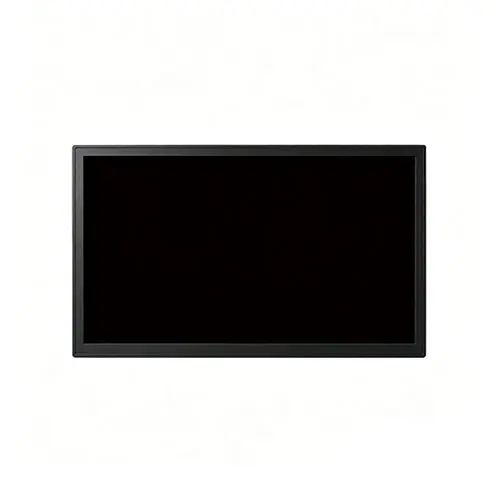

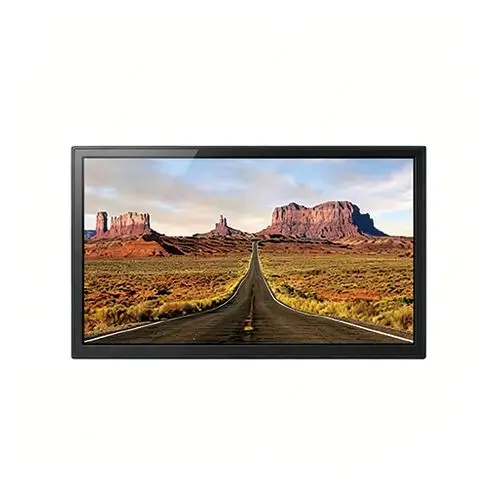

ND116THM19201080A01 11.6inch 1920×1080 Resolution LVDS Interface IPS Display, adopting original BOE LCD Panel (OC Model: QV116FHB-N81) with transmissive display mode. It features 400cd/m² typical luminance for clear visibility in diverse environments, 89°/89°/89°/89° full-view angle to avoid visual distortion from any direction, and 30-pin connector for stable data transmission via LVDS interface. Compatible with Arduino, ESP32, Raspberry Pi and similar development boards, it operates at 3.3V-3.6V supply voltage, adapting to -0~+50℃ operating and -10~+60℃ storage temperatures. With optional touchscreen for flexible customization, it’s an ideal choice for engineers in industrial control, IoT and smart device projects requiring high-definition, reliable display.
General Specifications
| Part No.: | ND116THM19201080A01 |
| Size: | 11.6 inch |
| Display Format: | 1920×1080 Resolution |
| Display Type: | IPS Display |
| Display Mode: | Transmissive |
| OC Model No.: | QV116FHB-N81 |
| LCD Panel Brand: | BOE |
| Touchscreen: | No (Optional with Yes) |
| Optimal View: | 89/89/89/89 (Typ.) |
| Outline Dimension: | 263.4×157.22×2.7mm |
| Active Area: | 256.32×144.18mm |
| Supply Voltage: | 3.3V – 3.6V |
| Luminance | 400cd/m²（Typ.） |
| Interface: | LVDS |
| Connection Type: | 30 pin connector |
| Compatibility: | Arduino, ESP32, Raspberry Pi and similar development boards |
| Operating Temperature: | -0~+50℃ |
| Storage Temperature: | -10~+60℃ |
| Mount Frame: | None |

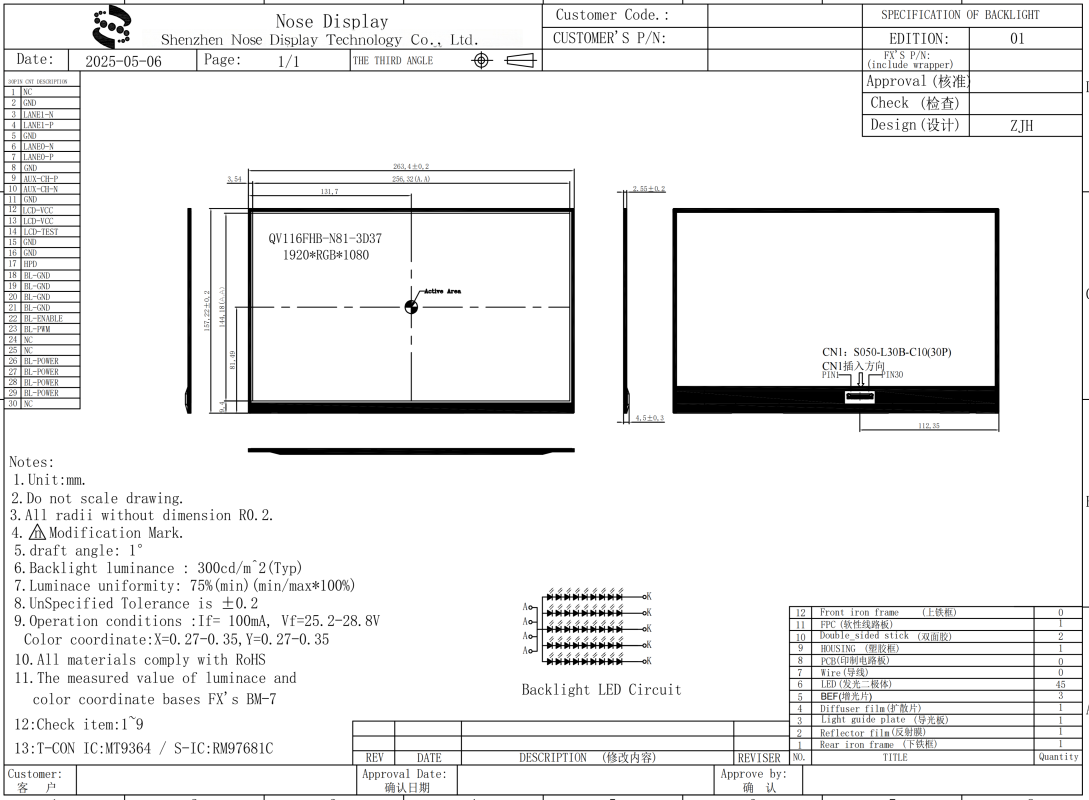

Display Drawing
Interface Definition
| Pin No. | Symbol | Description | I/O |
|---|---|---|---|
| 1 | CABC-EN | CABC-EN | |
| 2 | GND | Power Ground | |
| 3 | LANE1-N | eDP RX channel 1 negative | |
| 4 | LANE1-P | eDP RX channel 1 positive | |
| 5 | GND | Power Ground | |
| 6 | LANEO-N | eDP RX channel O negative | |
| 7 | LANEO-P | eDP RX channel 0 positive | |
| 8 | GND | Power Ground | |
| 9 | AUX-CH-P | eDP AUX CH positive | |
| 10 | AUX-CH-N | eDP AUXCH negative | |
| 11 | GND | Power Ground | |
| 12 | LDC-VCC | 3.3V | |
| 13 | LCD-VCC | 3.3V | |
| 14 | LCD-TEST | Panel self test enable | |
| 15 | GND | Power Ground | |
| 16 | GND | Power Ground | |
| 17 | HPD | Hot plug detect output | |
| 18 | BL-GND | Power Ground | |
| 19 | BL-GND | Power Ground | |
| 20 | BL-GND | Power Ground | |
| 21 | BL-GND | Power Ground | |
| 22 | BL-ENABLE | BL-ENABLE | |
| 23 | BL-PWM | Reset low active | |
| 24 | MSCL | FOR DEBUG | |
| 25 | MSDA | FOR DEBUG | |
| 26 | BL-POWER | BL-POWER | |
| 27 | BL-POWER | BL-POWER | |
| 28 | BL-POWER | BL-POWER | |
| 29 | BL-POWER | BL-POWER | |
| 30 | NC | NC |
