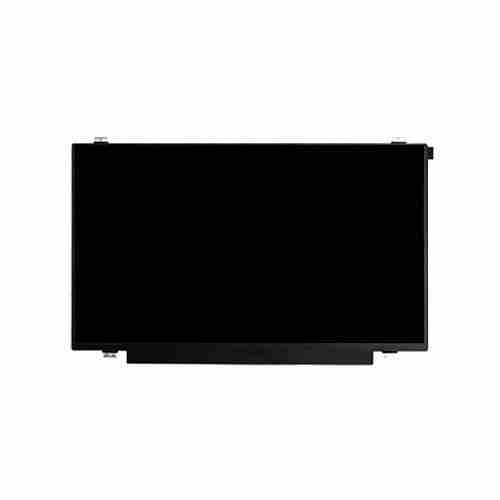

ND133THM19201080A01 | 13.3 Inch IPS LCD Display 1920x1080 EDP High Brightness Industrial Display Wide Temp BOE QV133FHB-N50
ND133THM19201080A01 13.3inch IPS Display with 1920×1080 Resolution, EDP Interface – Powered by BOE LCD Panel, Transmissive Display Mode, 300cd/m² High Luminance, 85/85/85/85 Wide Viewing Angles. Compatible with Arduino, ESP32, Raspberry Pi Development Boards, Optional Touchscreen, 3.3V-3.6V Supply Voltage, -0~+50℃ Operating Temperature, Ideal for Engineer Selection of Industrial Control, IoT Projects.
General Specifications
| Part No.: | ND133THM19201080A01 |
| Size: | 13.3 inch |
| Display Format: | 1920×1080 Resolution |
| Display Type: | IPS Display |
| Display Mode: | Transmissive |
| OC Model No.: | QV133FHB-N50 |
| LCD Panel Brand: | BOE |
| Touchscreen: | No (Optional with Yes) |
| Optimal View: | 85/85/85/85 (Typ.) |
| Outline Dimension: | 305.2×188.29×5.5mm |
| Active Area: | 293.76×165.24mm |
| Supply Voltage: | 3.3V – 3.6V |
| Luminance | 300cd/m²（Typ.） |
| Interface: | EDP |
| Connection Type: | 30 pin connector |
| Compatibility: | Arduino, ESP32, Raspberry Pi and similar development boards |
| Operating Temperature: | -0~+50℃ |
| Storage Temperature: | -20~+60℃ |
| Mount Frame: | None |

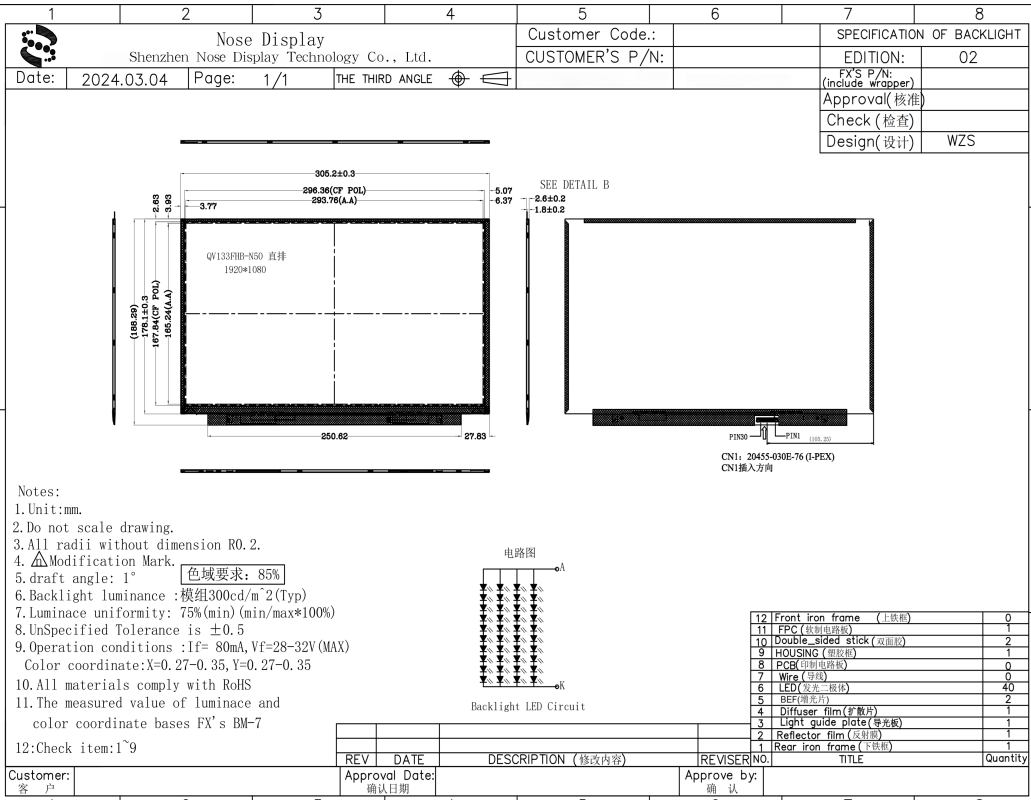

Display Drawing
Interface Definition
| Pin No. | Symbol | Description | I/O |
|---|---|---|---|
| 1 | NC | Description | |
| 2 | H-GND | No connection | |
| 3 | LAN1_N | Ground | |
| 4 | LAN1_P | Complement Signal Link_Lane1 | |
| 5 | H-GND | True Signal Link_Lane1 | |
| 6 | LANO_N | Ground | |
| 7 | LANO_P | Complement Signal Link_Lane0 | |
| 8 | H-GND | True Signal Link_Lane0High Speed Ground | |
| 9 | AUXP | True Signal Link_Auxiliry Channel | |
| 10 | AUXN | Complement Signal Link _Auxiliry Channel | |
| 11 | H-GND | Ground | |
| 12 | LCD_VCC | Power Supply,3.3V (typ.) | |
| 13 | LCD_VCC | Power Supply, 3.3V (typ.) | |
| 14 | BIST | Panel self test enable | |
| 15 | H-GND | Ground | |
| 16 | H-GND | Ground | |
| 17 | HPD | HPD(Hot Plug Detect) Signal Pin | |
| 18 | BL_GND | High Speed Ground | |
| 19 | BL_GND | High Speed Ground | |
| 20 | BL_GND | High Speed Ground | |
| 21 | BL_GND | High Speed Ground | |
| 22 | BL_EN | Backlight on/off Control pin | |
| 23 | BL_PWM | Back light PWM Dimming | |
| 24 | NC | No connection | |
| 25 | NC | No connection | |
| 26 | BL_PWR | Backlight power | |
| 27 | BL_PWR | Backlightpower | |
| 28 | BL_PWR | Backlightpower | |
| 29 | BL_PWR | Backlightpower | |
| 30 | NC | No connection |
Applications of 13.3 inch BOE Industrial Displays
Industrial HMI
Medical Displays
Automotive Dashboard
Transport & Logistics
Millitary & Aviation
Cranes & Farming
Kiosks
Oil & Gas
Custom 13.3" IPS Display
We offer full customization of 13.3 inch industrial-grade TFT LCD modules, focusing on wide temperature operation, high brightness, sunlight readability, and rugged design. Our services include customization of resolution, interface, and touch options, PCB design, connector modification, cover glass, and enclosure integration, supporting applications such as advertising displays, automotive dashboards, medical devices, treadmills, and industrial systems.
LCD Cable Custom
Adjust LCD cable length, pin layout, and connector position of IPS display 13.3 inch to match your system. Engineered for reliable and optimized connectivity.
LCD Interface Custom
Choose interfaces of LCD 13.3 inch TFT from MCU parallel, LVDS, SPI, RGB, and beyond. We’ll guide you in selecting and integrating the best LCD interface fit for your project.
13.3'' LCD PCB Design
Customize PCB shape, size, pin configuration, and component layout of TFT 13.3 inch display to guarantee precise fit and smooth integration with your device.
13.3'' Touchscreen Adding
Enhance your TFT LCD 13.3 inch IPS display with resistive or capacitive touch. Seamless integration delivers smooth control and intuitive operation.
