Product Overview

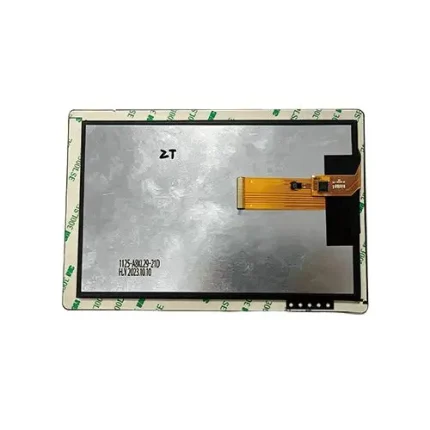

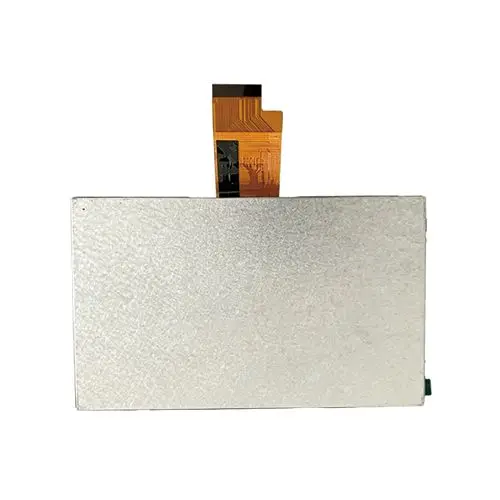

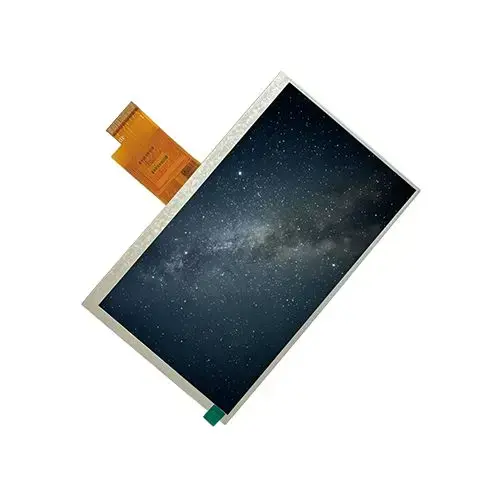

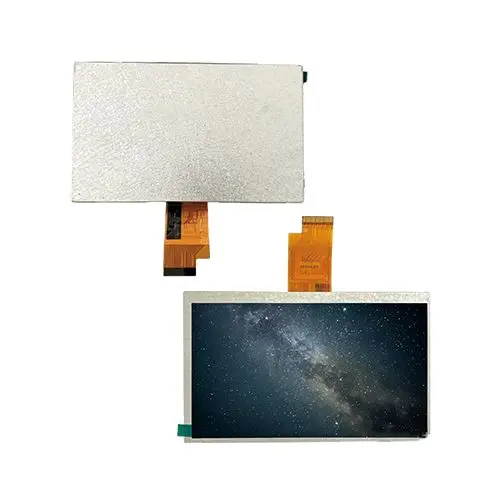

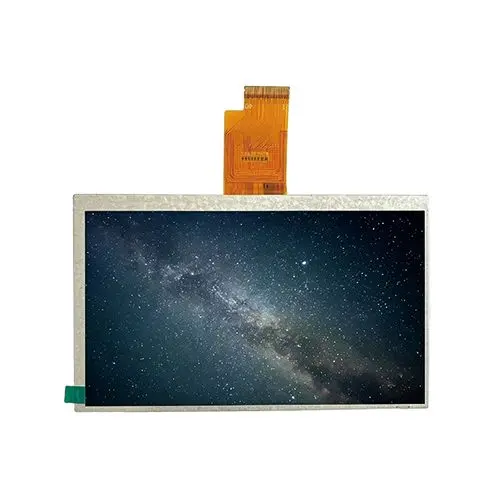

NoseDisplay ND070TSN1024600-A01 is a 7 inch IPS TFT LCD module with a 1024×600 pixel display for product interface development. Its LVDS interface and EK73215/EK79001 controller support integration into host display designs for handheld instruments, embedded controls and compact equipment interfaces. The panel can present operating status, menus and visual prompts within a model-specific hardware design. Review the specification, mechanical drawing and pin definitions when planning host connections, backlight control and enclosure integration. NoseDisplay can help evaluate display requirements, samples and project-specific customization before selecting the final configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND070TSN1024600-A01 |
| Display Size | 7.0 Inch |
| Resolution | 1024×600 pixels |
| Display Type | IPS TFT LCD |
| Display Mode | Transmissive |
| Touchscreen | No (Optional with Yes) |
| Outline Dimensions | 100.00 × 164.90 × 3.5 mm |
| Active Area | 154.08 × 85.92 mm |
| Parameter | Specification |
| Supply Voltage | 2.8V |
| Luminance | 400 Cd/m² |
| Display Interface | LVDS |
| Connection Type | 40 pin connector |
| IC | EK73215/EK79001 |
| Weight | -- |
| Operating Temperature | -20°C ~ 60°C |
| Storage Temperature | -25°C ~ 70°C |

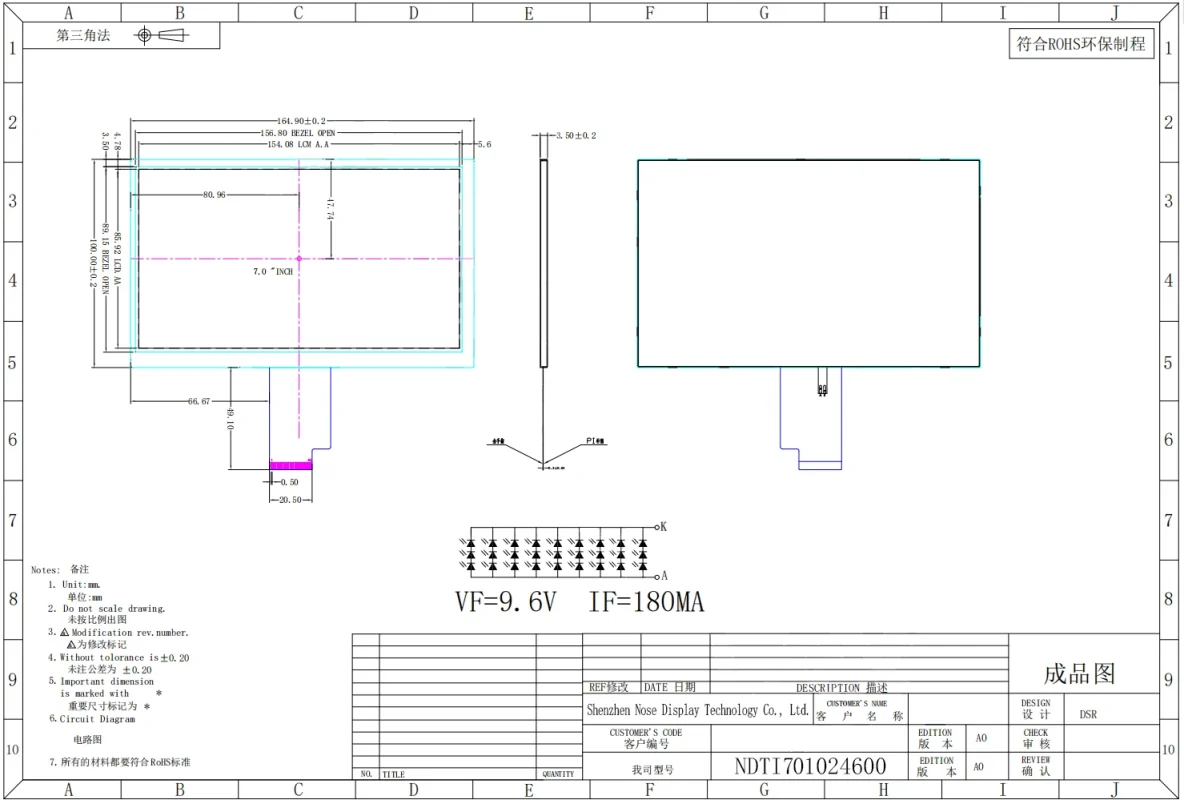

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | VCOM | Common Voltage |
| 02 | VDD | POWER SUPPLY |
| 03 | VDD | POWER SUPPLY |
| 04 | NC | No Connection |
| 05 | RESET | Reset |
| 06 | STBYB(3.3V) | -- |
| 07 | GND | Ground |
| 08 | RXIN0- | Differential Data - |
| 09 | RXIN0+ | Differential Data + |
| 10 | GND | Ground |
| 11 | RXIN1- | Differential Data - |
| 12 | RXIN1+ | Differential Data + |
| 13 | GND | Ground |
| 14 | RXIN2- | Differential Data - |
| 15 | RXIN2+ | Differential Data + |
| 16 | GND | Ground |
| 17 | RXCLKIN- | Differential Clock - |
| 18 | RXCLKIN+ | Differential Clock + |
| 19 | GND | Ground |
| 20 | RXIN3- | Differential Data - |
| 21 | RXIN3+ | Differential Data + |
| 22 | GND | Ground |
| 23 | NC | No Connection |
| 24 | NC | No Connection |
| 25 | GND | Ground |
| 26 | NC | No Connection |
| 27 | DIMO(3.3V) | Backlight PWM |
| 28 | SELB(1.8V) | -- |
| 29 | AVDD | POWER SUPPLY |
| 30 | GND | Ground |
| 31 | LEDK | Backlight Cathode |
| 32 | LEDK | Backlight Cathode |
| 33 | UR(1.8V) | -- |
| 34 | U/D(1.8v) | -- |
| 35 | VGL | Gate Low Voltage |
| 36 | GND | Ground |
| 37 | GND | Ground |
| 38 | VGH | Gate High Voltage |
| 39 | LEDA | Backlight Anode |
| 40 | LEDA | Backlight Anode |
Typical Applications
Industrial Control
Smart Home Panels
Portable Instruments
Embedded IoT Devices
TFT LCD displays are widely used in industrial control panels, handheld instruments, smart home devices, embedded systems, IoT equipment, medical devices and other human-machine interface applications requiring clear, responsive visual output.
Customization Options
NoseDisplay supports project evaluation for panel selection, FPC integration, cover lenses, touch options and driver boards. Final feasibility and specifications depend on the selected display configuration and application requirements.
FPC & Connector Integration
Review FPC length, routing, pin layout and connector position against your selected panel, host board and enclosure. Final cable and connector specifications are confirmed during project review.
Panel & Interface Selection
Evaluate alternative TFT panels when your project needs a different resolution, brightness, viewing direction or interface. Supported interfaces depend on the selected panel and display IC.
PCB & Driver Board Design
Adapter PCB and driver board development can be reviewed for your host platform, power design, connector and mounting requirements. Firmware scope and package contents are confirmed for the project.
Touchscreen & Cover Lens
Resistive or capacitive touch, cover glass and PMMA lenses can be evaluated for the product housing. Sensor selection, lens thickness, printing and touch performance are confirmed during project review.
