ND133THM19201080A02 | 13.3 Inch IPS LCD Display 1920x1080 EDP High Brightness Industrial Display Wide Temp BOE QV133FHB-N81(8D32)
ND133THM19201080A02 13.3inch FHD (1920×1080) EDP Interface BOE IPS LCD Display, Transmissive Mode with 800cd/m² High Luminance, 85° Full-View Angle, 30 Pin Connector, Ultra-Wide Operating Temperature Range of -20~+70℃, Compatible with Arduino/ESP32/Raspberry Pi, Ideal for Engineer Selection in Harsh Environment Embedded Systems, Portable Devices and Industrial Control Projects.
General Specifications
| Part No.: | ND133THM19201080A02 |
| Size: | 13.3 inch |
| Display Format: | 1920×1080 Resolution |
| Display Type: | IPS Display |
| Display Mode: | Transmissive |
| OC Model No.: | QV133FHB-N81(8D32) |
| LCD Panel Brand: | BOE |
| Touchscreen: | No (Optional with Yes) |
| Optimal View: | 85/85/85/85 (Typ.) |
| Outline Dimension: | 307.6×183.05×5.5mm |
| Active Area: | 293.76×165.24mm |
| Supply Voltage: | 3.0V – 3.6V |
| Luminance | 800cd/m²（Typ.） |
| Interface: | EDP |
| Connection Type: | 30 pin connector |
| Compatibility: | Arduino, ESP32, Raspberry Pi and similar development boards |
| Operating Temperature: | -20~+70℃ |
| Storage Temperature: | -30~+80℃ |
| Mount Frame: | None |

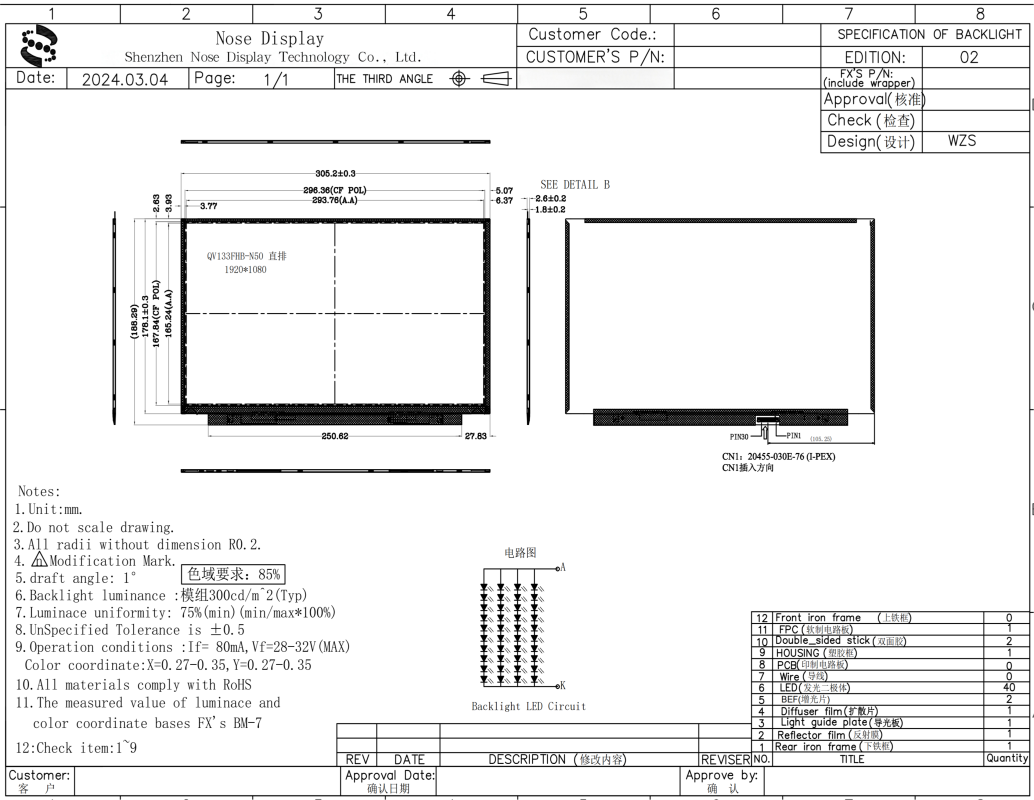

Display Drawing
Interface Definition
| Pin No. | Symbol | Description | I/O |
|---|---|---|---|
| 1 | CABC-EN | CABC-EN | |
| 2 | GND | Power Ground | |
| 3 | LANE1-N | eDP RX channel 1 negative | |
| 4 | LANE1-P | eDP RX channel 1 positive | |
| 5 | GND | Power Ground | |
| 6 | LANEO-N | eDP RX channel 0 negative | |
| 7 | LANE0-P | eDP RX channel 0 positive | |
| 8 | GND | Power Ground | |
| 9 | AUX-CH-P | eDP AUX CH positive | |
| 10 | AUX-CH-N | eDP AUX CH negative | |
| 11 | GND | Power Ground | |
| 12 | LDC-VCC | 3.3V | |
| 13 | LDC-VCC | 3.3V | |
| 14 | LCD-TEST | Panel self test enable | |
| 15 | GND | Power Ground | |
| 16 | GND | Power Ground | |
| 17 | HPD | Hot plug detect output | |
| 18 | BL-GND | Power Ground | |
| 19 | BL-GND | Power Ground | |
| 20 | BL-GND | Power Ground | |
| 21 | BL-GND | Power Ground | |
| 22 | BL-NABLE | BL-ENABLE | |
| 23 | BL-PWM | Reset low active | |
| 24 | MSCL | FOR DEBUG | |
| 25 | MSDA | FOR DEBUG | |
| 26 | BL-OWER | BL-POWER | |
| 27 | BL-POWER | BL-POWER | |
| 28 | BLPOWER | BL-POWER | |
| 29 | BLPOWER | BL-POWER | |
| 30 | NC | NC |
Applications of 13.3 inch BOE Industrial Displays
Industrial HMI
Medical Displays
Automotive Dashboard
Transport & Logistics
Millitary & Aviation
Cranes & Farming
Kiosks
Oil & Gas
