NDT091PBM12832-A02 | 0.91 inch OLED Display 128x32 Resolution with Touchscreen Option and I2C Interface Compatible with Arduino

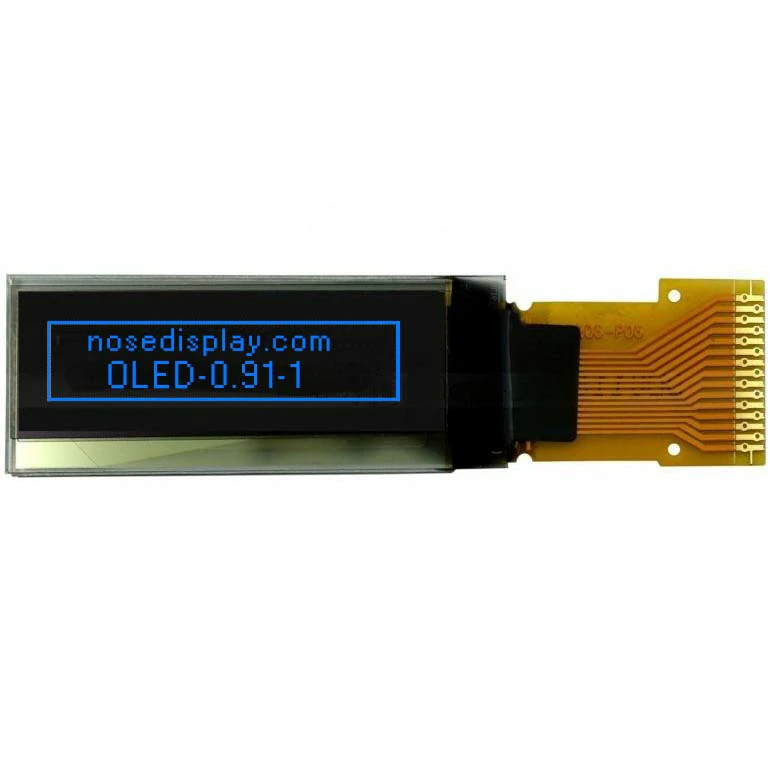

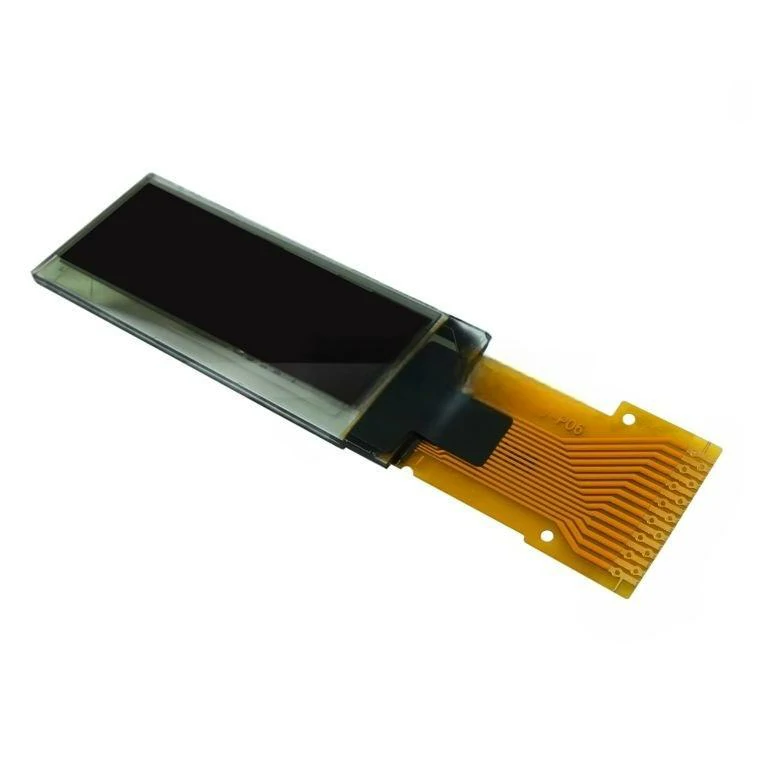

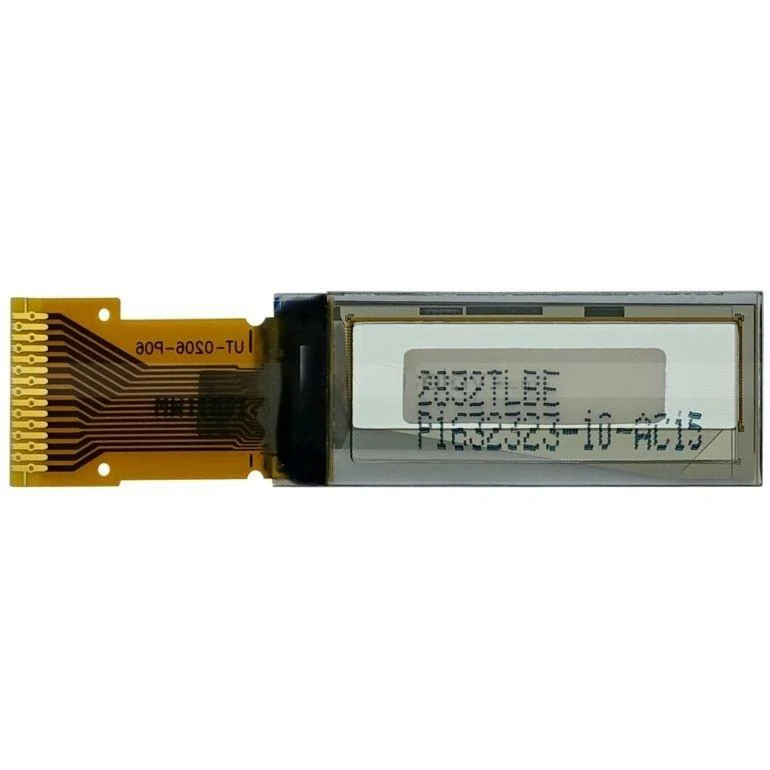

The NDT091PBM12832-A02 is a 0.91 inch PMOLED display module featuring a crisp 128×32 resolution and transmissive OLED technology for sharp, high-contrast monochrome visuals. Powered by the SSD1306BZ controller and interfaced via I2C, it integrates easily with Arduino, ESP32, and other microcontroller platforms. This display offers a clear active area of 22.384 x 5.584 mm and operates reliably across a wide temperature range from -40°C to 85°C, making it ideal for industrial, wearable, and portable devices. The optional touchscreen provides enhanced interactivity for embedded applications requiring intuitive user input.
Perfect for smart wearables, industrial controls, and IoT devices that demand efficient, high-quality displays with touch functionality.
Search Keywords:
0.91 inch PMOLED, OLED 0.9 inch touchscreen display, 128×32 OLED module, I2C 0.9inch OLED screen, 0.9 inch OLED display, Arduino 0.9 inch OLED touchscreen, OLED 0.9” screen, OLED screen 0.9 inch
General Specifications
| Part No.: | NDT091PBM12832-A02 |

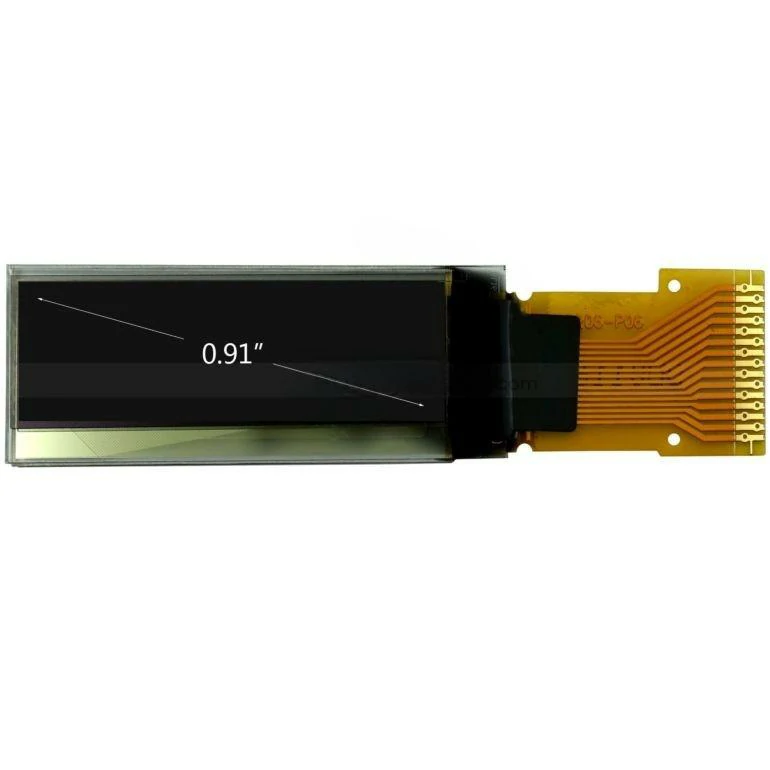

| Size: | 0.91 inch |
| Display Format: | 128×32 Resolution |
| Display Type: | PMOLED Display |
| Display Mode: | Transmissive |
| Touchscreen: | Yes (Optional with No) |
| Optimal View: | Full View |
| Outline Dimension: | 30 x11.5 x1.26 mm |
| Active Area: | 22.384 x5.584 mm |
| Supply Voltage: | 3.3V |
| Interface: | IIC |
| Connection Type: | 14 pin connector |
| Controller： | SSD1306BZ |
| Compatibility: | Arduino and similar development boards |
| Operating Temperature: | -40°C ~ 85°C |
| Storage Temperature: | -40°C ~ 85°C |
| Mount Frame: | None |

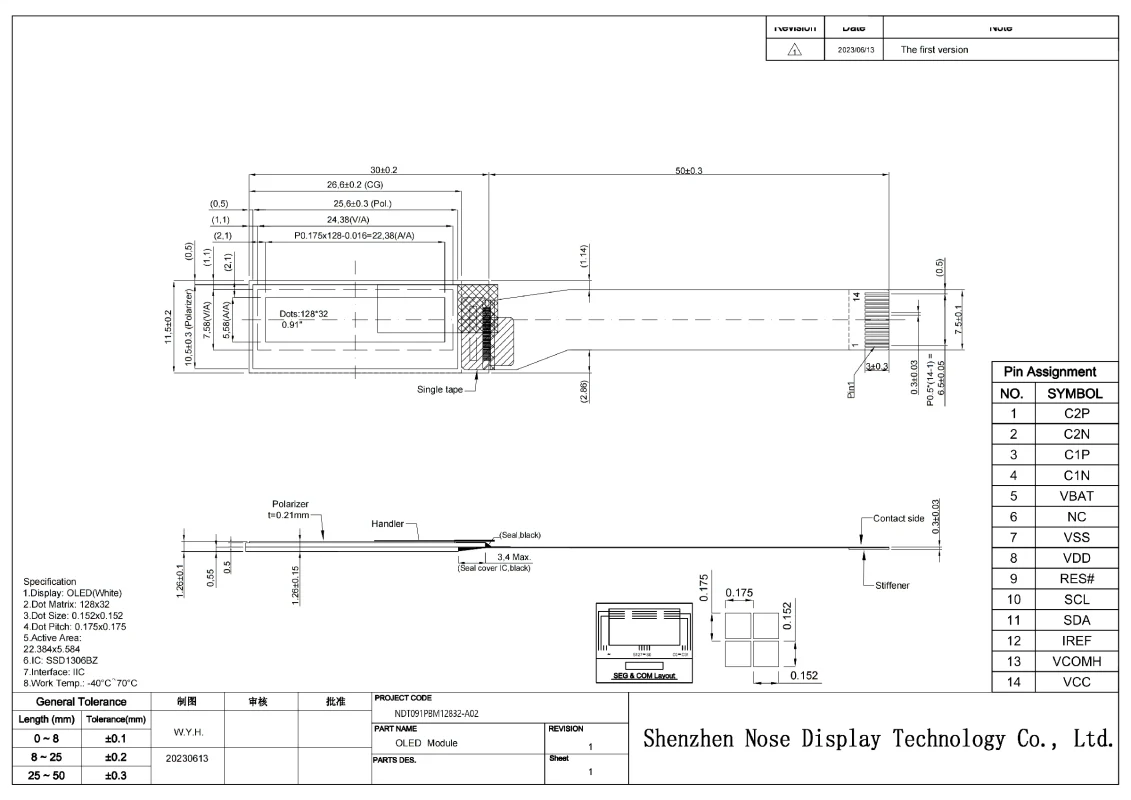

Display Drawing
Interface Definition
| NO. | Symbol | Description |
|---|---|---|
| 1 | C2P | |
| 2 | C2N | |
| 3 | C1P | |
| 4 | C1N | |
| 5 | VBAT | |
| 6 | NC | |
| 7 | VSS | |
| 8 | VDD | |
| 9 | RES# | |
| 10 | SCL | |
| 11 | SDA | |
| 12 | IREF | |
| 13 | VCOMH | |
| 14 | VCC |
Custom 0.91'' PMOLED display
We provide tailored 0.91'' PMOLED display modules, allowing you to customize key specifications such as resolution, brightness, and interface. Our solutions also include customized connector placements and seamless integration with platforms like Arduino, ensuring optimized system performance.
Custom OLED Display
Design the ideal 0.91” OLED display with fully customizable sizes, resolutions, and configurations, tailored to fit your specific design and application needs.
Custom OLED Interfaces
Customizable cable lengths and connector configurations for 0.91” OLED modules guarantee precise integration with your system, ensuring reliable performance and flawless display alignment.
0.91'' OLED PCB Design
Optimized PCB design for 0.91” OLED modules ensures efficient power distribution and signal integrity, delivering stable, high-quality display performance in compact systems.
Different Color Options
Choose from a range of color options for 0.91” OLED modules, offering tailored visual experiences and greater design flexibility to perfectly match your project or application.
