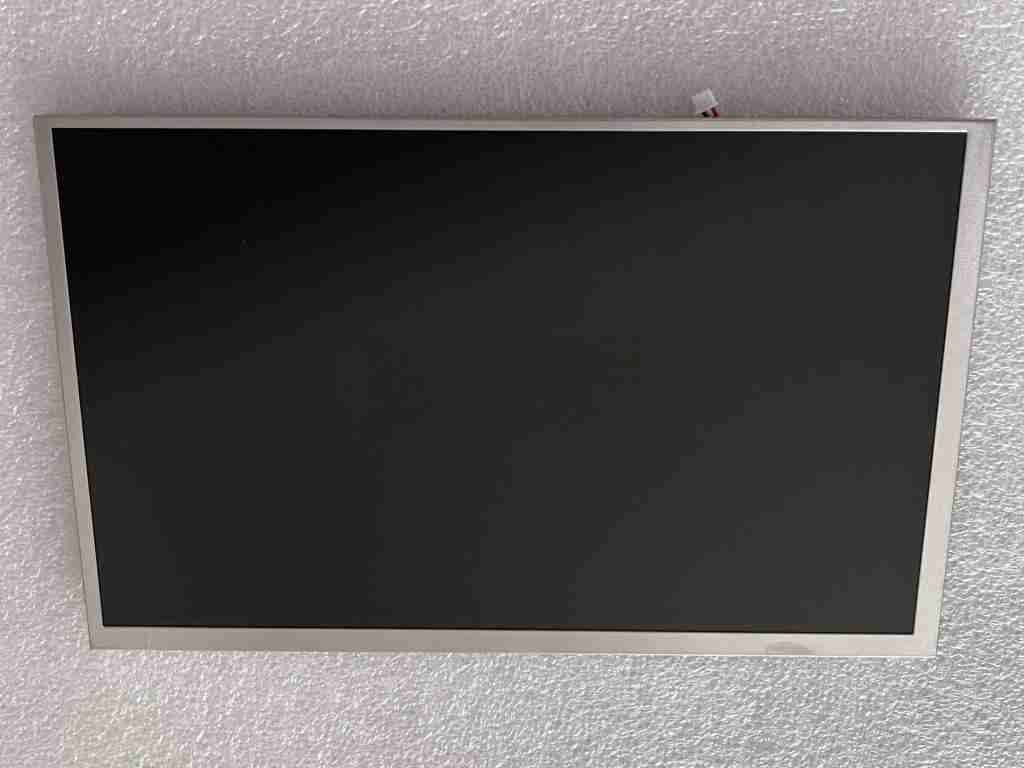

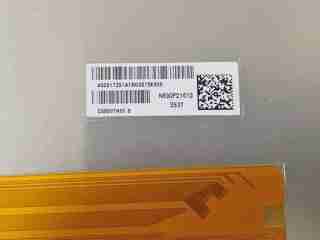

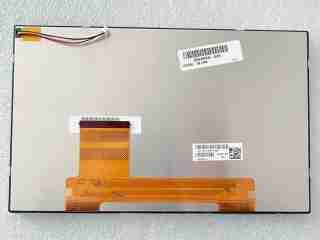

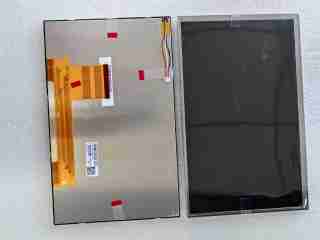

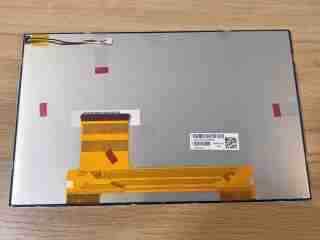

Original AUO C090VTN01.0 9.0" 800x480 Car Touch Panel
AUO C090VTN01.0 9.0″ 800×480 TN LCD Panel, Parallel RGB Interface, Anti-glare Treatment
Specifications
Brand: AUO
Mode P/N: C090VTN01.0
Diagonal Size: 9.0″
Panel Type: a-Si TFT-LCD, LCM
Resolution: 800(RGB)×480, WVGA 103PPI
Pixel Format: RGB Vertical Stripe
Active Area: 196.8(W)×118.08(H) mm
Outline Dim.: 209.7(H)×130.7(V) ×6.9(D) mm
Treatment: Antiglare, Hard coating (3H)
Luminance: 500 cd/m² (Typ.)
Contrast Ratio: 700:1 (Typ.) (TM)
Best View on: 6 o’clock
Response Time: 13/20 (Typ.)(Tr/Td) ms
Viewing Angle: 70/70/50/60 (Typ.)(CR≥10)
Operating Mode: TN, Normally White, Transmissive
Touch Panel: Without
Interface Type: Parallel RGB (1 ch, 8-bit), 60 pins FPC
Power Supply: 3.3/12.5/18.0/-10.0V (Typ.)(VDDD/VDDA/VGH/VGL)
Environment: Operating Temp.: -30 ∼ 85 °C ; Storage Temp.: -55 ∼ 125 °C ; Vibration Level: 2.9G (28.4 m/s²)
