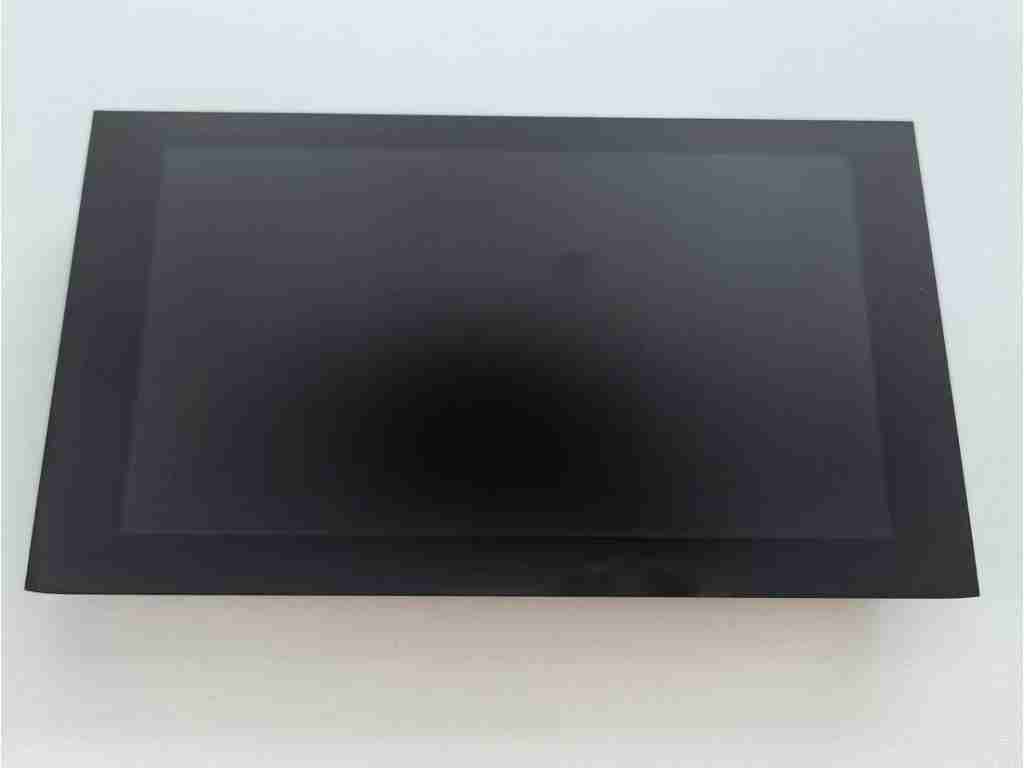

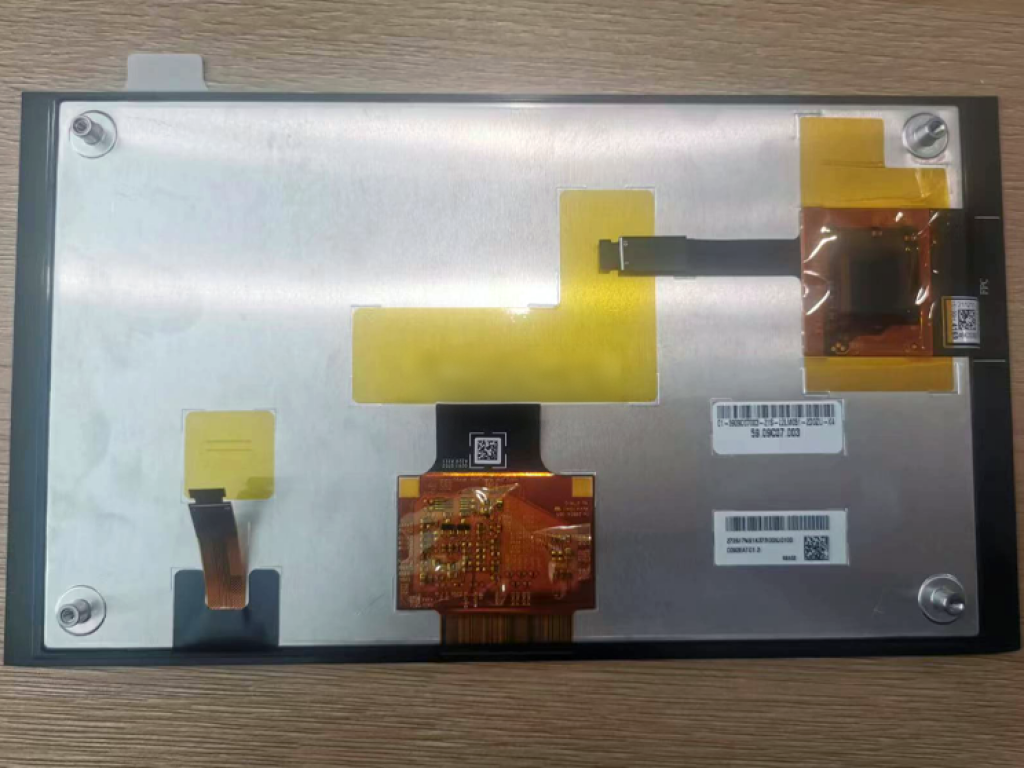

Original AUO C090EAT01.2 9.0" 1280x720 Car Touch Panel
Original AUO C090EAT01.2 9.0″ 1280×720 Resolution Car Touch Panel, LVDS Interface for Automotive Applications
Specifications
Brand: AUO

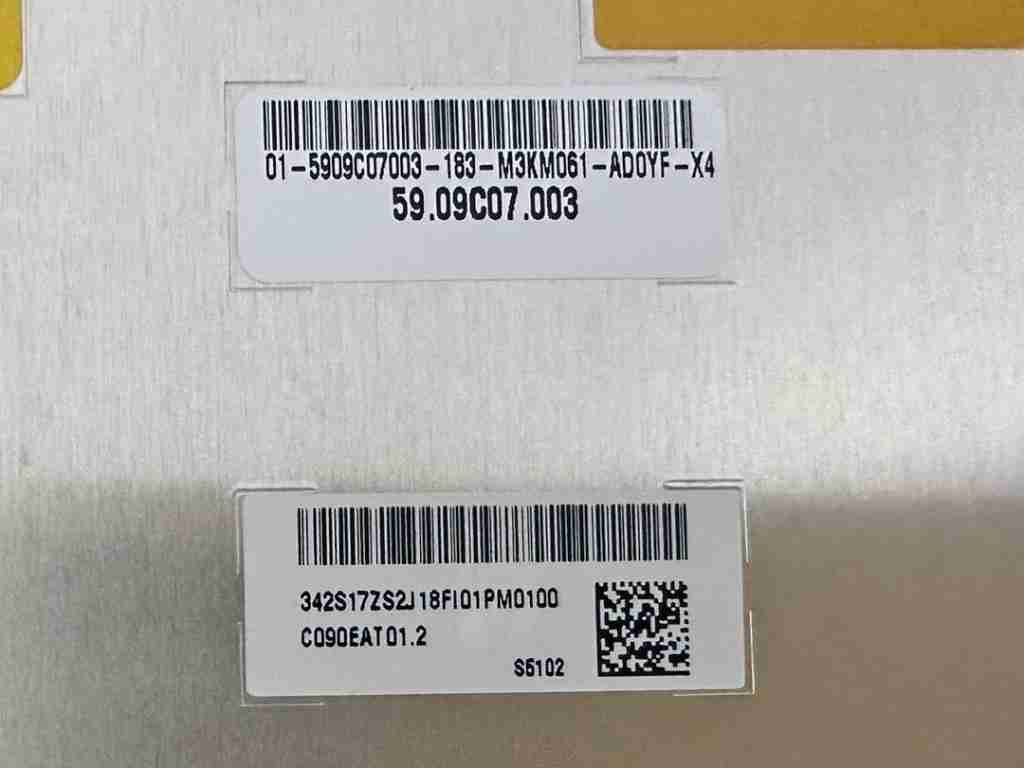

Mode P/N: C090EAT01.2
Diagonal Size: 9.0″
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1280(RGB)×720, WXGA 163PPI
Pixel Format: RGB Vertical Stripe
Active Area: 198.72(W)×111.78(H) mm
Outline Dim.: 238.85(W)×136.02(H) mm
Treatment: Antiglare
Contrast Ratio: 1000:1 (Typ.) (TM)
Best View on: Symmetry
Response Time: 20/20 (Max.)(Tr/Td) ms
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
Operating Mode: AHVA, Normally Black, Transmissive
Touch Panel: PCAP
Interface Type: LVDS (2 ch, 8-bit)
Power Supply: 3.3/13.5/18/-8V (Typ.) (VDD/AVDD/VGH/VGL)
Environment: Operating Temp.: -30 ∼ 85 °C ; Storage Temp.: -40 ∼ 95 °C
