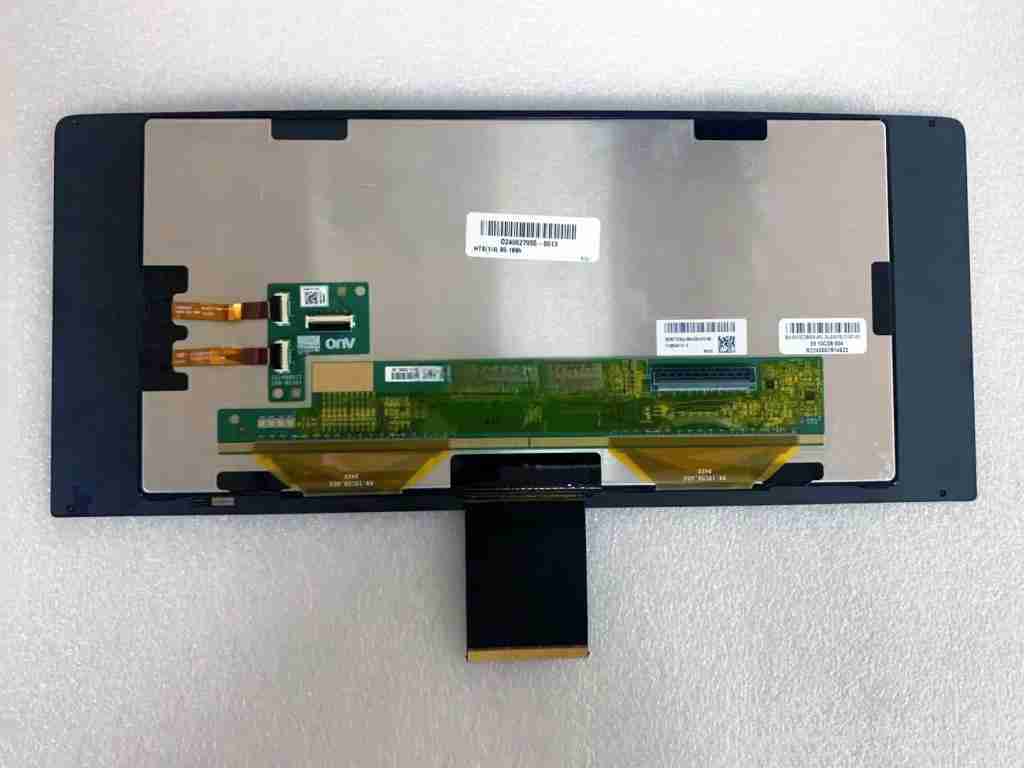

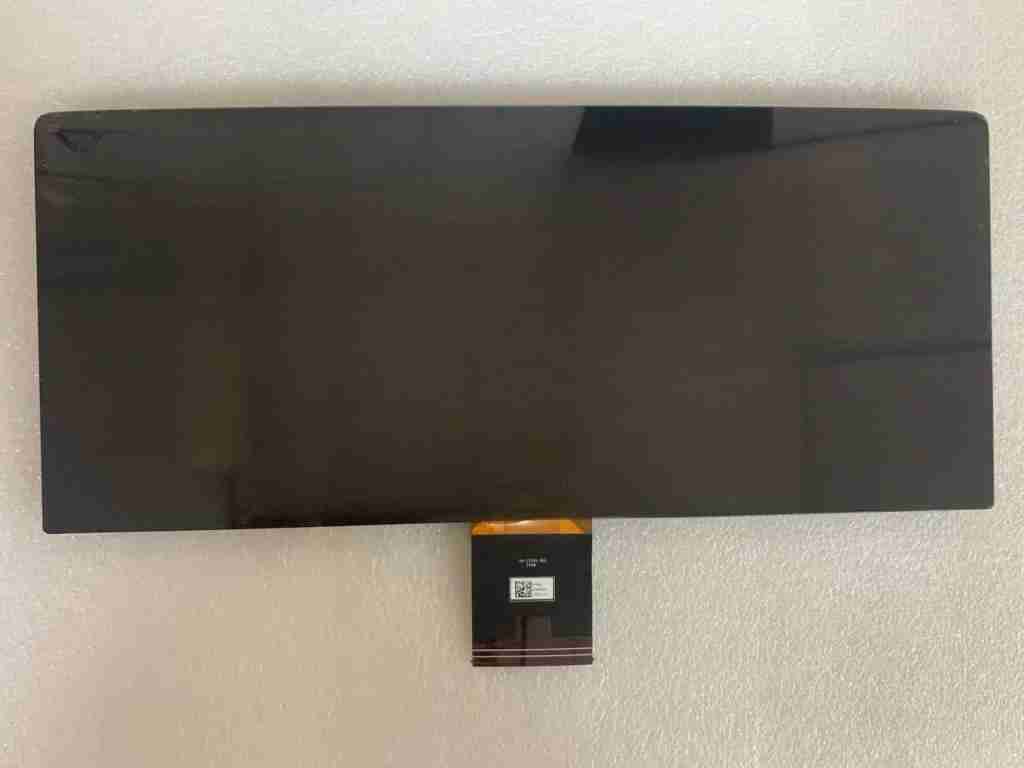

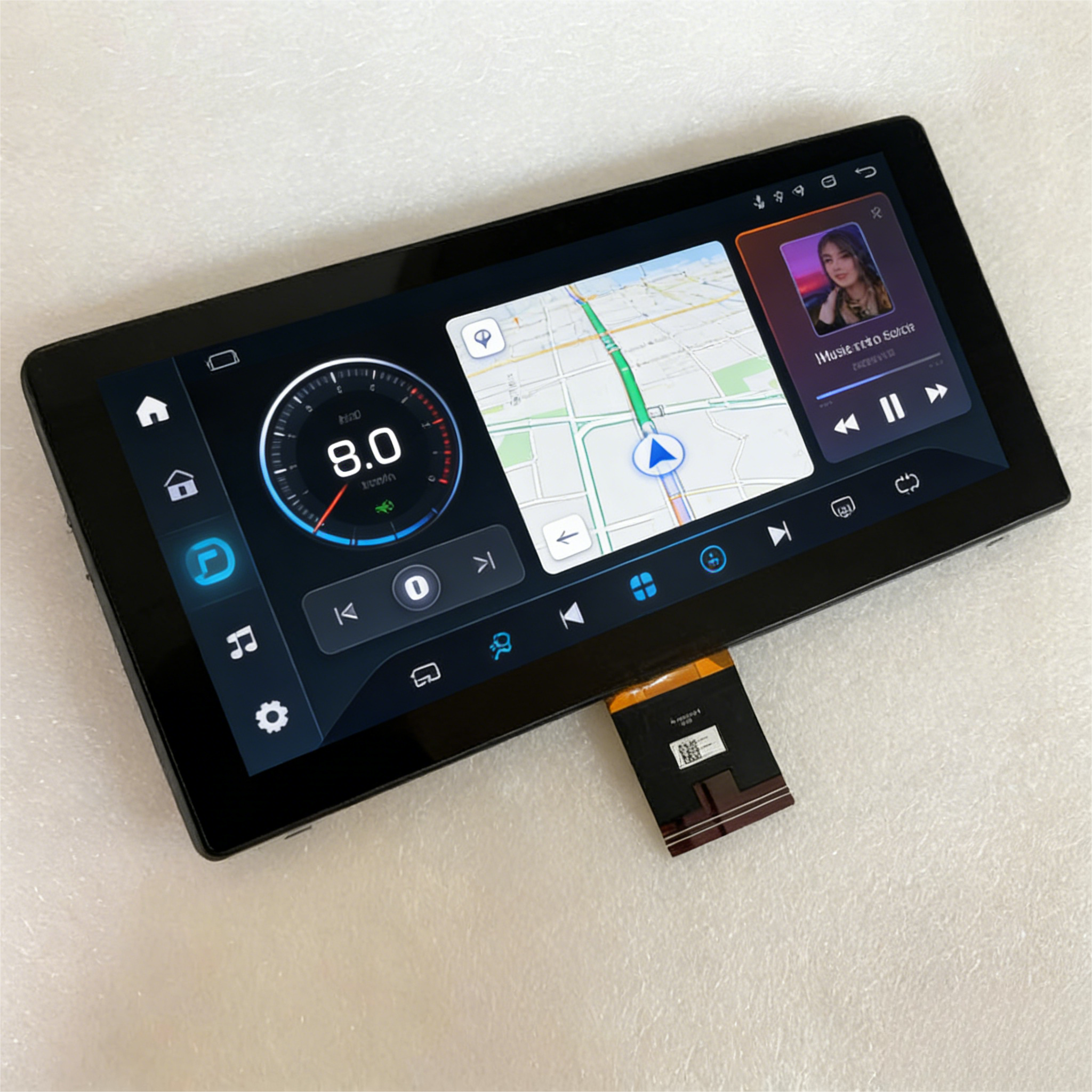

Original AUO C100HAT01.3 10.0″ 1560×700 Car Touch Panel

AUO C100HAT01.3 10.0″ 1560×700 TFT-LCD with PCAP Touch, LVDS Interface – Ideal for Automotive Use

Specifications

Brand: AUO
Mode P/N: C100HAT01.3
Diagonal Size: 10.0″
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1560(RGB)×700 171PPI
Pixel Format: RGB Vertical Stripe
Active Area: 231.66(W)×103.95(H) mm
Contrast Ratio: 1000:1 (Typ.) (TM)
Best View on: Symmetry
Response Time: 30 (Max.)(Tr+Td) ms
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
Operating Mode: AHVA, Normally Black, Transmissive
Touch Panel: PCAP
Interface Type: LVDS (2 ch, 8-bit) Connector
Environment: Operating Temp.: -30 ∼ 85 °C ; Storage Temp.: -40 ∼ 95 °C ; Vibration Level: 2.9G (28.4 m/s²)
