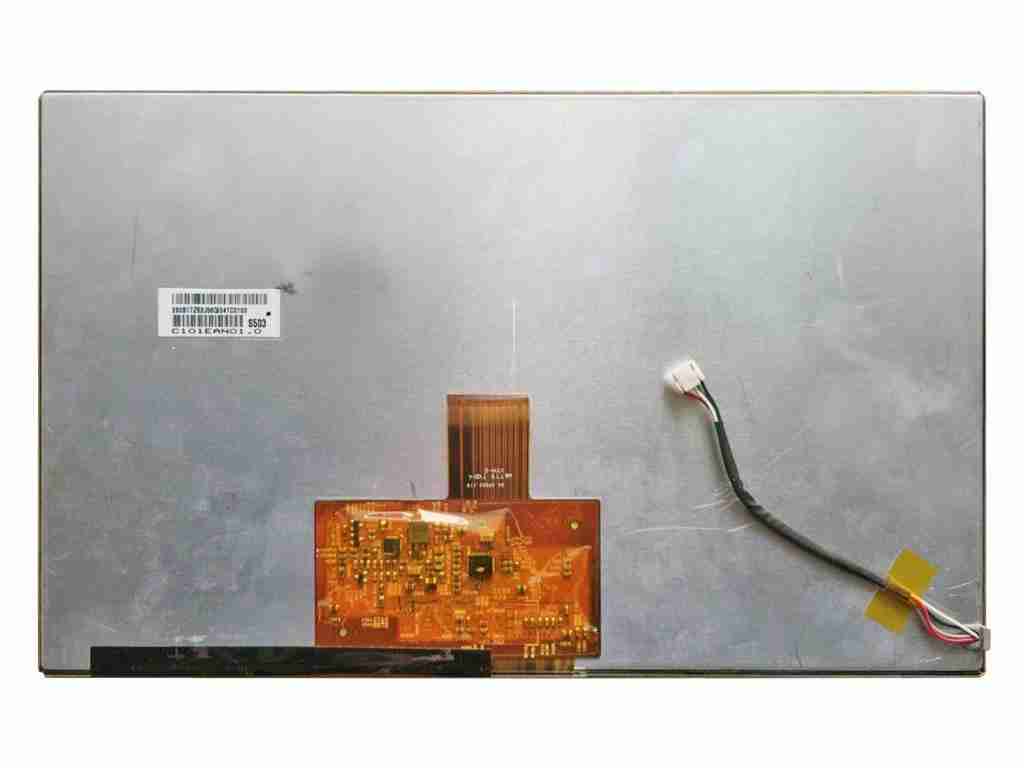

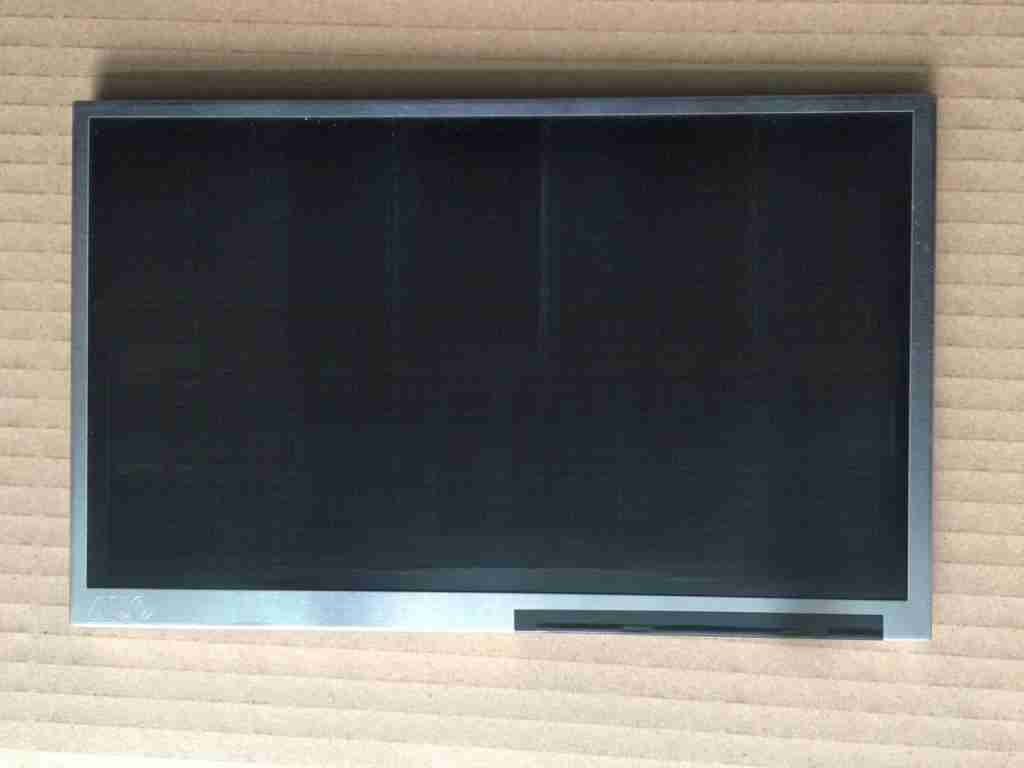

Original AUO C101EAN01.0 10.1" 1280x720 Car Touch Panel
AUO C101EAN01.0 10.1″ TFT-LCD Display, 1280×720 Resolution, LVDS Interface, 700 cd/m² Luminance, 1000:1 Contrast, Operating Temp. -30 to 85°C, Ideal for Automotive and Industrial Applications.
Specifications
Brand: AUO
Mode P/N: C101EAN01.0
Diagonal Size: 10.1″
Panel Type: a-Si TFT-LCD, LCM
Resolution: 1280(RGB)×720, WXGA 145PPI
Pixel Format: RGB Vertical Stripe
Active Area: 223.68(W)×125.82(H) mm
Outline Dim.: 238.6(W)×148(H) ×10.3(D) mm
Luminance: 700 cd/m² (Typ.)
Contrast Ratio: 1000:1 (Typ.) (TM)
Best View on: Symmetry
Response Time: 30 (Max.)(Tr+Td) ms
Viewing Angle: 80/80/80/80 (Typ.)(CR≥10)
Operating Mode: AHVA, Normally Black, Transmissive
Touch Panel: Without
Interface Type: LVDS (1 ch, 8-bit), 40 pins FPC
Power Supply: 3.3/3.3V (Typ.)(VDD/VDDA)
Environment: Operating Temp.: -30 ∼ 85 °C ; Storage Temp.: -40 ∼ 95 °C ; Vibration Level: 2.9G (28.4 m/s²)
