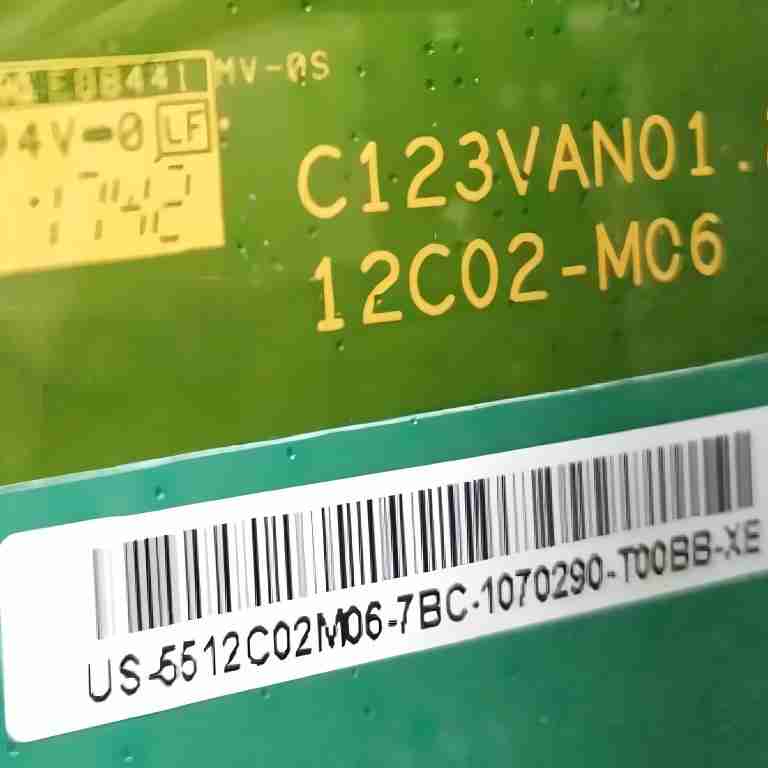

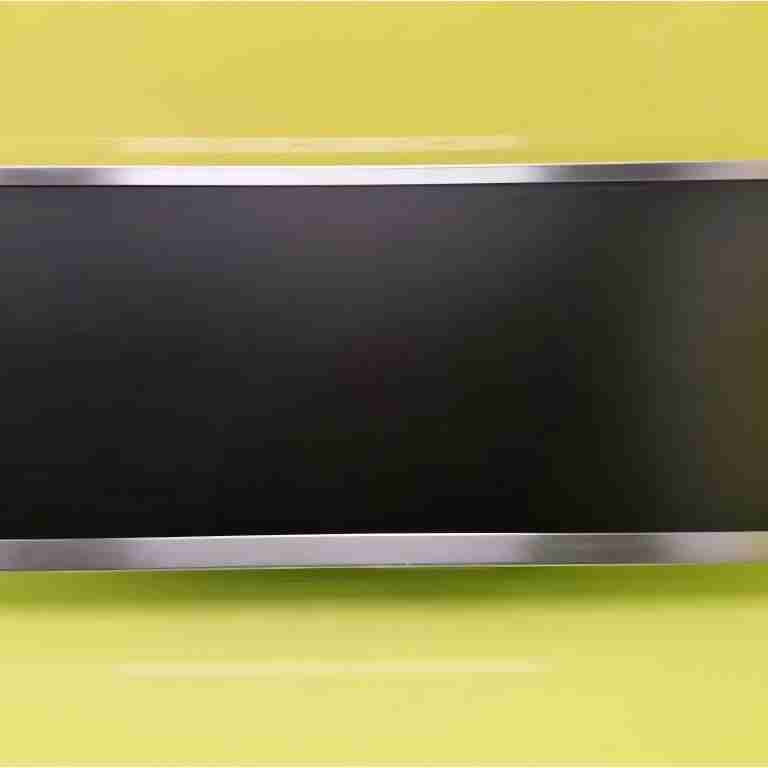

Original AUO C123VAN01.2 12.3" 1440x540 Car Touch Panel
The AUO C123VAN01.2 is a 12.3-inch TFT-LCD display with a resolution of 1440×540 and 125 PPI. Featuring a high brightness of 750 cd/m² and a contrast ratio of 1000:1, it delivers vibrant and clear images. The panel uses the RGB vertical stripe pixel format and is equipped with antiglare treatment for optimal visibility in various lighting conditions. The display operates with an RSDS interface (1 channel, 60 pins connector) and supports a wide temperature range from -40°C to 85°C. With its AHVA technology and fast response time of 15 ms, it’s perfect for industrial applications.
Specifications
| Brand: AUO Mode P/N: C123VAN01.2 Diagonal Size: 12.3″ Panel Type: a-Si TFT-LCD, LCM Resolution: 1440(RGB)×540 125PPI Pixel Format: RGB Vertical Stripe Active Area: 291.6(W)×109.35(H) mm Outline Dim.: 308.5(W)×129(H) ×32.1(D) mm Treatment: Antiglare Luminance: 750 cd/m² (Typ.) Contrast Ratio: 1000:1 (Typ.) (TM) Best View on: Symmetry Response Time: 15 (Typ.)(Tr+Td) ms Viewing Angle: 70/70/70/70 (Min.)(CR≥10) Operating Mode: AHVA, Normally Black, Transmissive Touch Panel: Without Interface Type: RSDS (1 Channel), 60 pins Connector Input Voltage: 3.3V (Typ.) Environment: Operating Temp.: -40 ∼ 85 °C ; Storage Temp.: -40 ∼ 95 °C |
