Product Overview
NoseDisplay ND018TRN360360-A01 is a round IPS TFT LCD module for smart home controls, wearable interfaces, instrument dials and embedded IoT devices. Its circular display suits menu navigation, sensor readings, equipment status indicators and compact HMI designs for custom OEM products. The ST77916 controller and QSPI interface can be evaluated with STM32, ESP32, Arduino and Raspberry Pi host platforms using suitable interface hardware, firmware, power and backlight circuitry. NoseDisplay supports FPC integration, cover lens options and adapter board evaluation to help engineers develop circular LCD interfaces that fit their enclosure and application.
NoseDisplay ND018TRN360360-A01 is a round IPS TFT LCD module for smart home controls, wearable interfaces, instrument dials and embedded IoT devices. Its circular screen suits menu navigation and sensor readings. The ST77916 controller and QSPI interface can be evaluated with STM32, ESP32, Arduino and Raspberry Pi using suitable interface hardware, firmware and circuitry. NoseDisplay supports OEM FPC integration, cover lenses and adapter board evaluation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND018TRN360360-A01 |
| Display Size | 1.8 Inch |
| Resolution | 360×360 pixels |
| Display Type | IPS TFT LCD |
| Display Mode | Transmissive |
| Touchscreen | None (touch options) |
| Outline Dimensions | 48.08 × 49.59 × 1.96 mm |
| Active Area | 45.68 × 45.668 mm |
| Parameter | Specification |
| Supply Voltage | 2.8 V |
| Luminance | 450 nits |
| Display Interface | QSPI |
| Connection Type | 10-Pin FPC |
| IC | ST77916 |
| Weight | 10 ± 2 g |
| Operating Temperature | -10°C ~ 60°C |
| Storage Temperature | -20°C ~ 70°C |

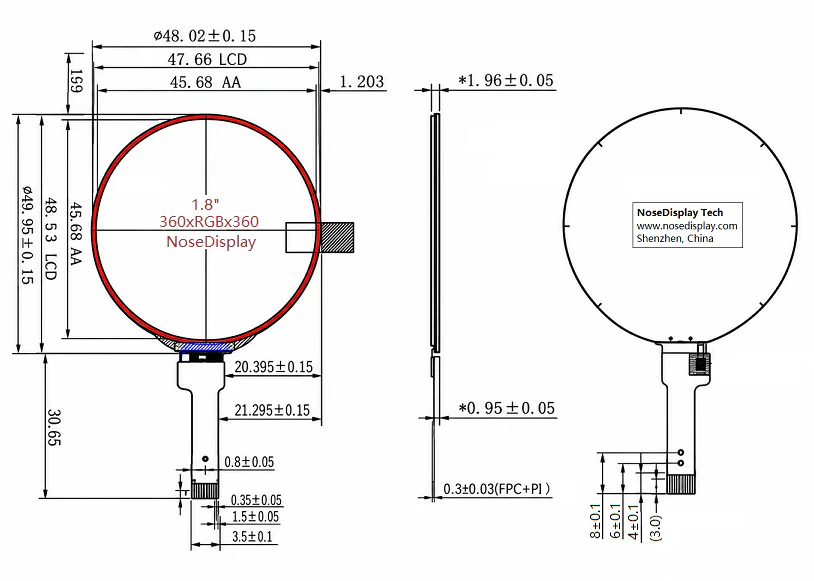

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | GND | Ground |
| 2 | LEDK | LED power cathode |
| 3 | LEDA/VCC | LED power anode/Power supply. (3.3V) |
| 4 | CS | Chip selection pin |
| 5 | QSPI-CLK | This pin is used to be serial interface clock. |
| 6 | QSPI-I00 | SPI interface input pin |
| 7 | QSPI-I01 | SPI interface input/output pin |
| 8 | QSPI-I02 | SPI interface input pin |
| 9 | QSPI-I03 | SPI interface input pin |
| 10 | RESET | Device reset |
