Product Overview

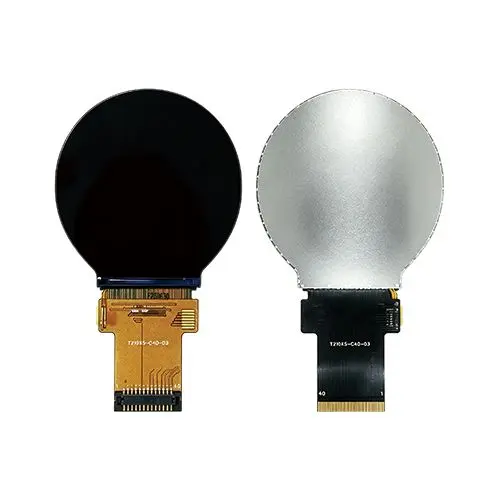

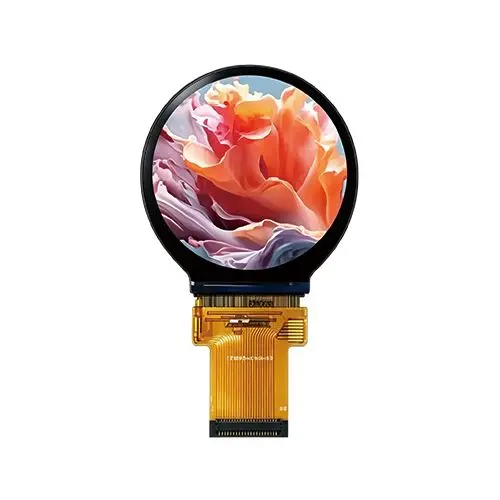

NoseDisplay ND021TRN480480-A01 is a round IPS TFT LCD module for smart home controls, appliance interfaces, instrument dials and embedded IoT devices. Its circular display offers a practical format for menu navigation, sensor readings, equipment status screens and compact HMI designs in custom OEM products. The ST7701 controller uses SPI configuration with an RGB display interface; projects based on STM32, ESP32, Arduino or Raspberry Pi require suitable host hardware, firmware and power circuitry. NoseDisplay supports FPC integration, cover lens options and adapter board evaluation to help engineers develop circular LCD interfaces for their enclosure and application.
NoseDisplay ND021TRN480480-A01 is a round IPS TFT LCD module for smart home controls, appliance interfaces, instrument dials and embedded IoT devices. Its circular screen suits menu navigation and sensor readings. The ST7701 uses SPI configuration and an RGB display interface; STM32, ESP32, Arduino and Raspberry Pi projects require suitable host hardware and firmware. NoseDisplay supports OEM FPC integration, cover lenses and adapter board evaluation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND021TRN480480-A01 |
| Display Size | 2.1 Inch |
| Resolution | 480×480 pixels |
| Display Type | IPS TFT LCD |
| Display Mode | Transmissive |
| Touchscreen | None (touch options) |
| Outline Dimensions | 56.18 × 59.70 × 2.56 mm |
| Active Area | 53.28 × 53.28 mm |
| Parameter | Specification |
| Supply Voltage | 2.8 V |
| Luminance | 450 nits |
| Display Interface | SPI + RGB 18-bit |
| Connection Type | 40-pin connector |
| IC | ST7701 |
| Weight | 18 ± 2g |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |

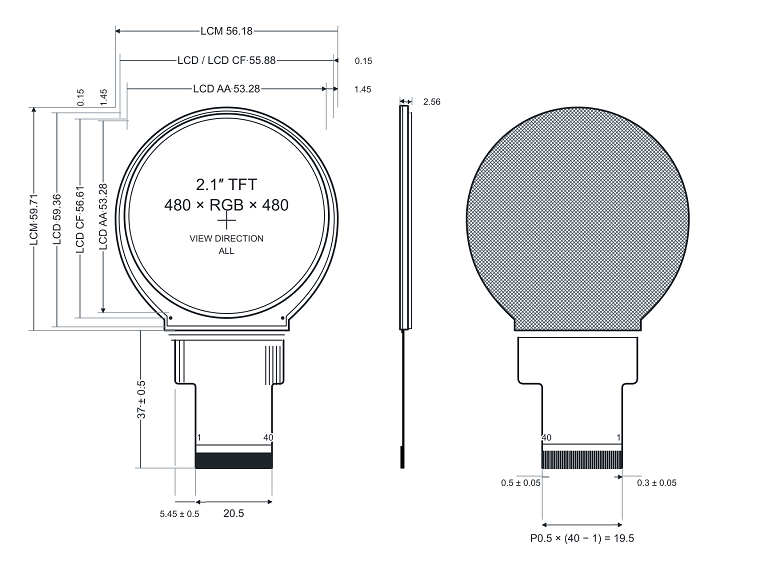

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | LEDA | LED (BackLight) power anode |
| 2 ~ 3 | LEDK | LED (BackLight) power cathode |
| 4 | GND | Ground |
| 5 | VCI | Power setting for Display |
| 6 | RESET | RESET-PIN |
| 7 ~ 8 | NC | nc |
| 9 | SDA | SPI interface input/output pin |
| 10 | SCL | This pin is used to be serial interface clock |
| 11 | CS | Chip selection pin |
| 12 | PCLK | Dot clock signal for RGB interface operation |
| 13 | DE | Data enable signal for RGB interface operation |
| 14 | VSYNC | Vertical (Frame) synchronizing input signal for RGBinterfaceoperation |
| 15 | HSYNC | Horizontal (Line) synchronizing input signal for RGBinterfaceoperation |
| 16 ~ 33 | DB0–DB17 | RGB Data Bus |
| 34 | GND | Ground. |
| 35 | TP-INT | The Interrupt Signal For TP. |
| 36 | TP-SDA | SPI Data signal For TP |
| 37 | TP-SCL | SPI Clock signal For TP |
| 38 | TP-RESET | This pin is RESET-PIN for Touch. |
| 39 | TP-VCI | Power Supplying For Touch |
| 40 | TP-GND | Ground For TouchPanel |
Sample Ordering & Delivery
Samples are available for engineering evaluation. Shipping excludes import duties and taxes. Estimated delivery times are in calendar days, including 4 days of preparation. Final terms are confirmed before payment.
Sample MOQ
3 pcs per modelMinimum order quantity.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
