Product Overview

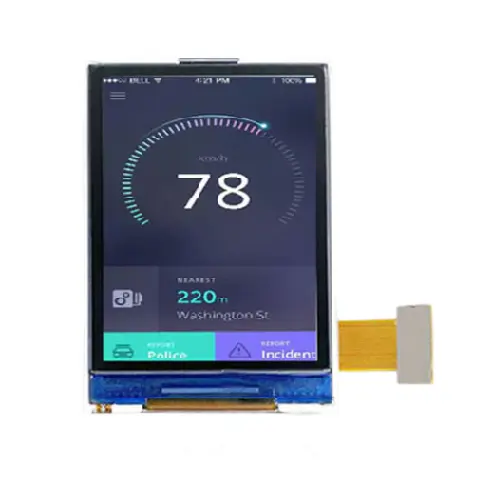

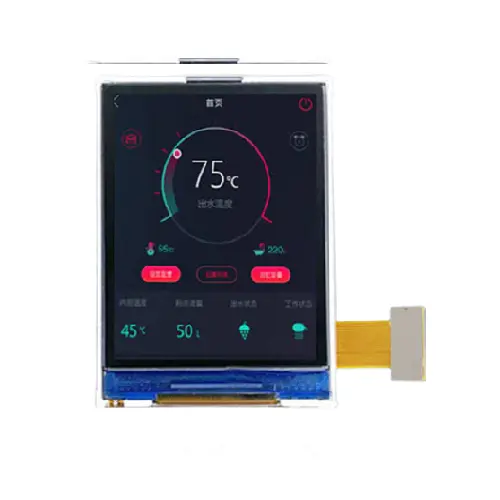

NoseDisplay ND022TFN240320-A01 is a compact transflective TFT LCD module for portrait interfaces in portable controls and field equipment. Its display mode can be evaluated for outdoor test instruments, sensor terminals, industrial status panels and connected devices where ambient lighting changes during use, with readability assessed under the intended backlight and viewing conditions. Engineers can review SPI host integration, FPC routing, optional touch requirements and enclosure dimensions for the selected design, and use samples to evaluate menus, status information and user feedback before final configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND022TFN240320-A01 |
| Display Size | 2.2 Inch |
| Resolution | 240×320 pixels |
| Display Type | TFT LCD |
| Display Mode | Transflective |
| Touchscreen | No (Optional with Yes) |
| Outline Dimensions | 40.40 × 56.48 × 2.5 mm |
| Active Area | 33.84 × 45.12 mm |
| Parameter | Specification |
| Supply Voltage | 2.8V |
| Luminance | 160 nits |
| Display Interface | SPI 4-Line |
| Connection Type | 40 pin connector |
| IC | ST7789V |
| Weight | — |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -30°C ~ 80°C |

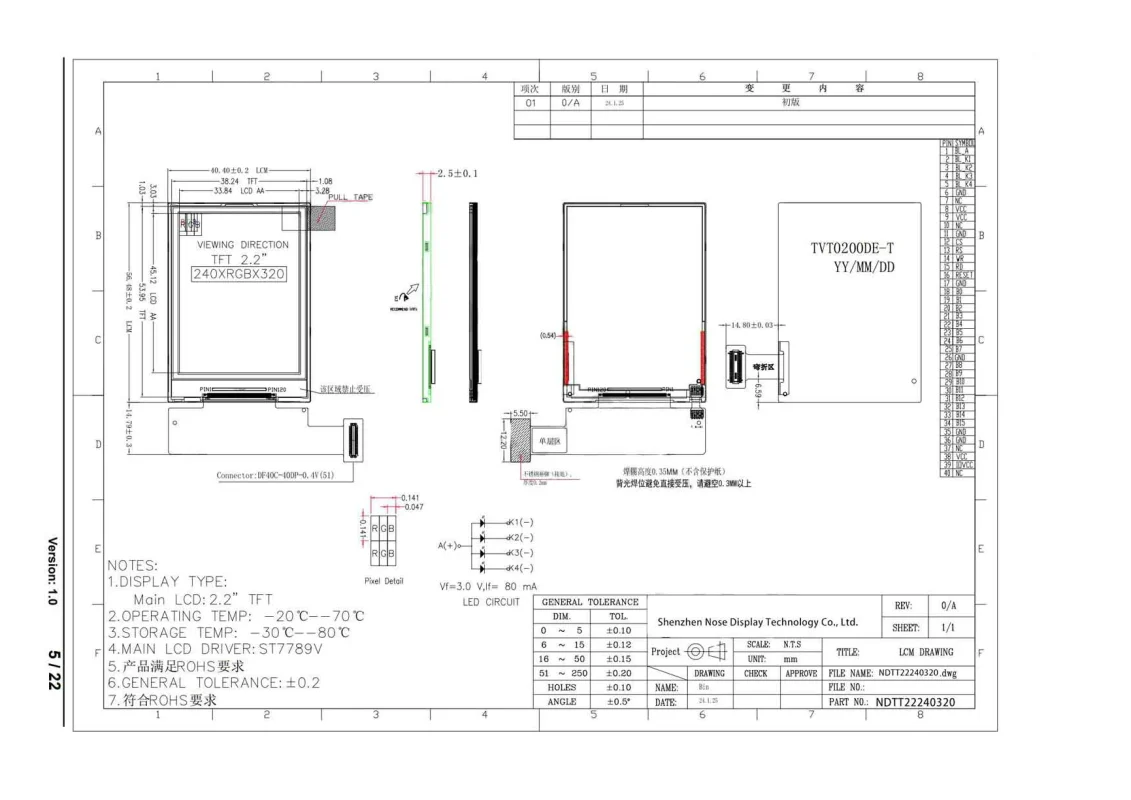

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | LEDA | Backlight Anode |
| 02 | LEDK1 | Backlight Cathode |
| 03 | LEDK2 | Backlight Cathode |
| 04 | LEDK3 | Backlight Cathode |
| 05 | LEDK4 | Backlight Cathode |
| 06 | GND | Ground |
| 07 | NC | No Connection |
| 08 | vCC | POWER SUPPLY |
| 09 | VCC | POWER SUPPLY |
| 10 | NC | No Connection |
| 11 | GND | Ground |
| 12 | CS | Chip Select |
| 13 | RS | Data/Command Select |
| 14 | WR | Write Enable |
| 15 | RD | Read Enable |
| 16 | RESET | Reset |
| 17 | GND | Ground |
| 18 | DB0 | Data Bus |
| 19 | DB1 | Data Bus |
| 20 | DB2 | Data Bus |
| 21 | DB3 | Data Bus |
| 22 | DB4 | Data Bus |
| 23 | DB5 | Data Bus |
| 24 | DB6 | Data Bus |
| 25 | DB7 | Data Bus |
| 26 | GND | Ground |
| 27 | DB8 | Data Bus |
| 28 | DB9 | Data Bus |
| 29 | DB10 | Data Bus |
| 30 | DB11 | Data Bus |
| 31 | DB12 | Data Bus |
| 32 | DB13 | Data Bus |
| 33 | DB14 | Data Bus |
| 34 | DB15 | Data Bus |
| 35 | GND | Ground |
| 36 | GND | Ground |
| 37 | NC | No Connection |
| 38 | VCC | POWER SUPPLY |
| 39 | IOvCC | I/O POWER SUPPLY |
| 40 | NC | No Connection |
