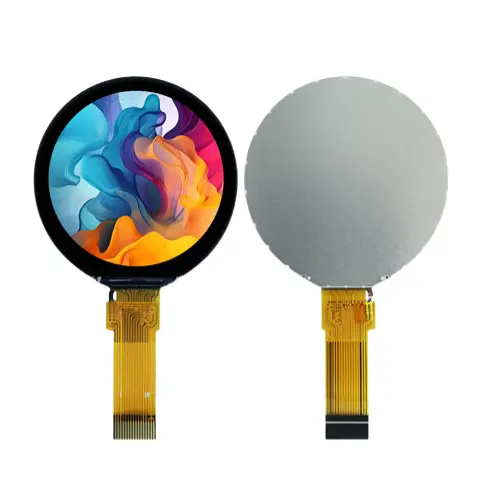

Product Overview

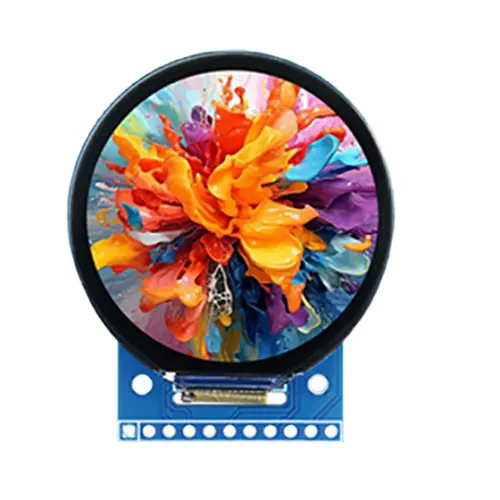

NoseDisplay ND015TRN360360-B01 is a round IPS TFT LCD module with an adapter PCB for compact embedded interfaces, smart home controls, wearable devices and connected instruments. Its circular screen provides a practical canvas for graphical dials, menu navigation, status indicators and custom IoT dashboards. The ST77916 controller and QSPI interface can be evaluated with STM32, ESP32, Arduino and Raspberry Pi platforms using compatible host hardware, firmware, power and backlight circuitry. For OEM projects, NoseDisplay supports FPC integration, cover lens options and driver board evaluation to help engineers match the display assembly to their enclosure and application.
NoseDisplay ND015TRN360360-B01 is a round IPS TFT LCD module with an adapter PCB for embedded instruments, smart home controls, wearable devices and IoT interfaces. Its circular screen suits graphical dials, menus and status displays. The ST77916 controller and QSPI interface require compatible host hardware and firmware for STM32, ESP32, Arduino or Raspberry Pi evaluation. NoseDisplay supports OEM FPC integration, cover lenses and driver board evaluation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND015TRN360360-B01 |
| Display Size | 1.5 Inch |
| Resolution | 360×360 pixels |
| Display Type | IPS TFT LCD |
| Display Mode | Transmissive |
| Touchscreen | None |
| Outline Dimensions | 40.46 × 41.96 × 2.16 mm (LCD) |
| Active Area | Ø 38.16 mm |
| Parameter | Specification |
| Supply Voltage | 2.8–3.3 V |
| Luminance | 350 nits |
| Display Interface | QSPI |
| Connection Type | 11-pin PCBA connector (16-pin LCD FPC) |
| IC | ST77916 |
| Weight | 12 ±2 g |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -30°C ~ 80°C |

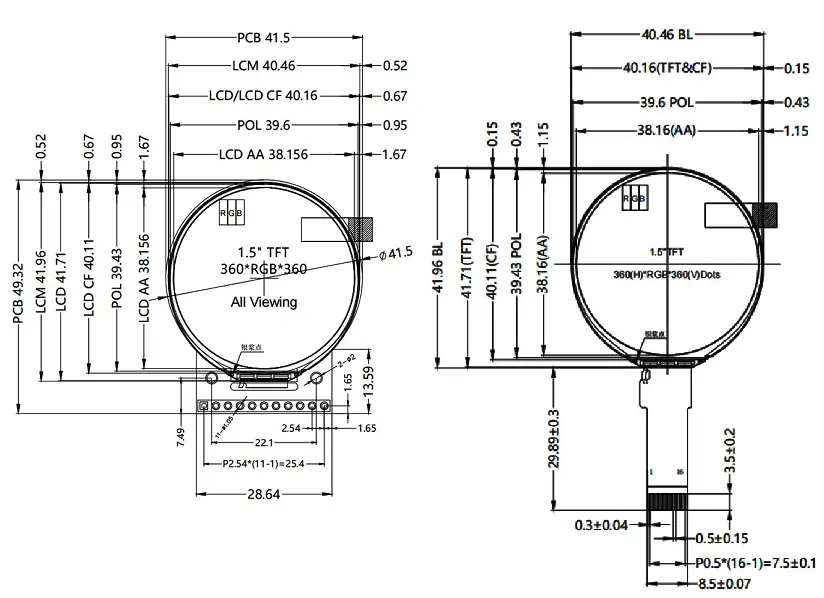

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description

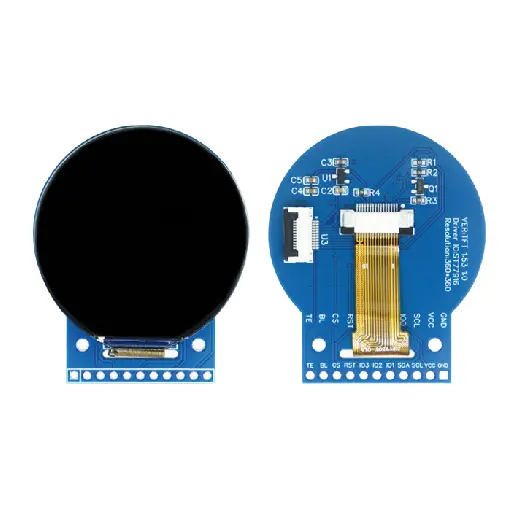

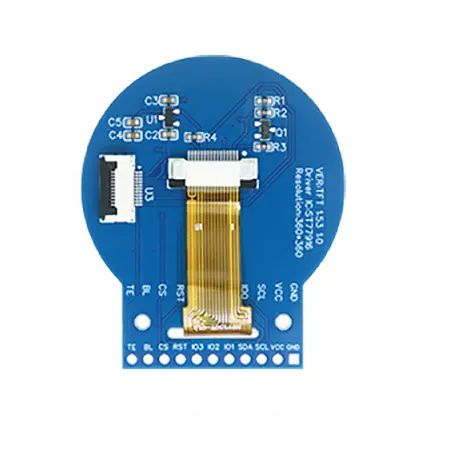

LCD + PCB — 11-Pin
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | GND | Power ground. |
| 2 | VCC | Analog power supply. |
| 3 | SCL | Clock signal. |
| 4 | SDA | Data signal. |
| 5, 6, 7 | IO1, IO2, IO3 | QSPI data I/O 1, 2 and 3. |
| 8 | RST | Display reset. |
| 9 | CS | Chip-select signal. |
| 10 | BL | Backlight. |
| 11 | TE | Frame synchronization. |
LCD-FPC — 16-Pin
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | K | Backlight cathode. |
| 2 | A | Backlight anode. |
| 3 | GND | Power ground. |
| 4 | CS | Chip-select signal. |
| 5 | SCL | Clock signal. |
| 6 | RESET | Display reset. |
| 7 | IO3 | QSPI data I/O 3. |
| 8 | IO2 | QSPI data I/O 2. |
| 9 | IO1 | QSPI data I/O 1. |
| 10 | IO0 | QSPI data I/O 0. |
| 11 | TE | Frame synchronization. |
| 12 | VCC | Power supply. |
| 13 | IOVCC | I/O power supply. |
| 14–16 | GND | Power ground. |
Sample Ordering & Delivery
Samples are available for engineering evaluation. Shipping excludes import duties and taxes. Estimated delivery times are in calendar days, including 4 days of preparation. Final terms are confirmed before payment.
Sample MOQ
3 pcs per modelMinimum order quantity.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
