Product Overview
NoseDisplay ND018AMC466466-B02 is a 1.75-inch round AMOLED display with 466×466 resolution, 700-nit luminance and capacitive OnCell touch. Its self-emissive panel is suitable for wearable interfaces, compact instrument displays and circular control panels. The display uses a CO5300 controller and CST9217 touch controller. MIPI and QSPI configurations are listed in the original product data; confirm the ordered configuration, connector and mechanical dimensions before integration. Projects using ESP32, STM32 or Linux-based platforms require a suitable host interface, power rails and compatible software. Request the model-specific specification for engineering evaluation.
NoseDisplay ND018AMC466466-A02 is a 1.75-inch round AMOLED display with 466×466 resolution, 700-nit luminance and capacitive OnCell touch for wearable interfaces, instruments and circular controls. It uses CO5300 and CST9217 controllers. Confirm the ordered MIPI or QSPI configuration, connector and mechanical dimensions before integration. ESP32, STM32 or Linux-based projects require a suitable host interface, power rails and compatible software. Request the model-specific specification for evaluation.
The original product data lists a 100000:1 contrast ratio and 130% NTSC color gamut. A non-touch configuration and mounting frame may be available on request. Interface, connector, active area and complete assembly dimensions require confirmation against the ordered model specification.
Note: The A02 version of the MODULE uses a MIPI interface, while the B02 version uses a QSPI interface. They have the same external appearance, but their internal configurations differ; therefore, they must be distinguished with special care.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND018AMC466466-B02 |
| Display Size | 1.75 Inch |
| Resolution | 466×466 pixels |
| Display Type | AMOLED |
| Display Mode | Self-emissive |
| Touchscreen | Capacitive touch (OnCell) |
| Outline Dimensions | 48.15 x 47.10 x 2.57mm (with CG) |
| Active Area | Ø 43.76 mm |
| Parameter | Specification |
| Supply Voltage | 2.8 ~ 3.3 V |
| Luminance | 700 nits |
| Display Interface | QSPI or Mipi |
| Connection Type | 24-Pin(OK-14GM024-04) |
| IC | CO5300 (display); CST820B (touch) |
| Weight | 8 g |
| Operating Temperature | -20°C ~ +70°C |
| Storage Temperature | -30°C ~ +80°C |

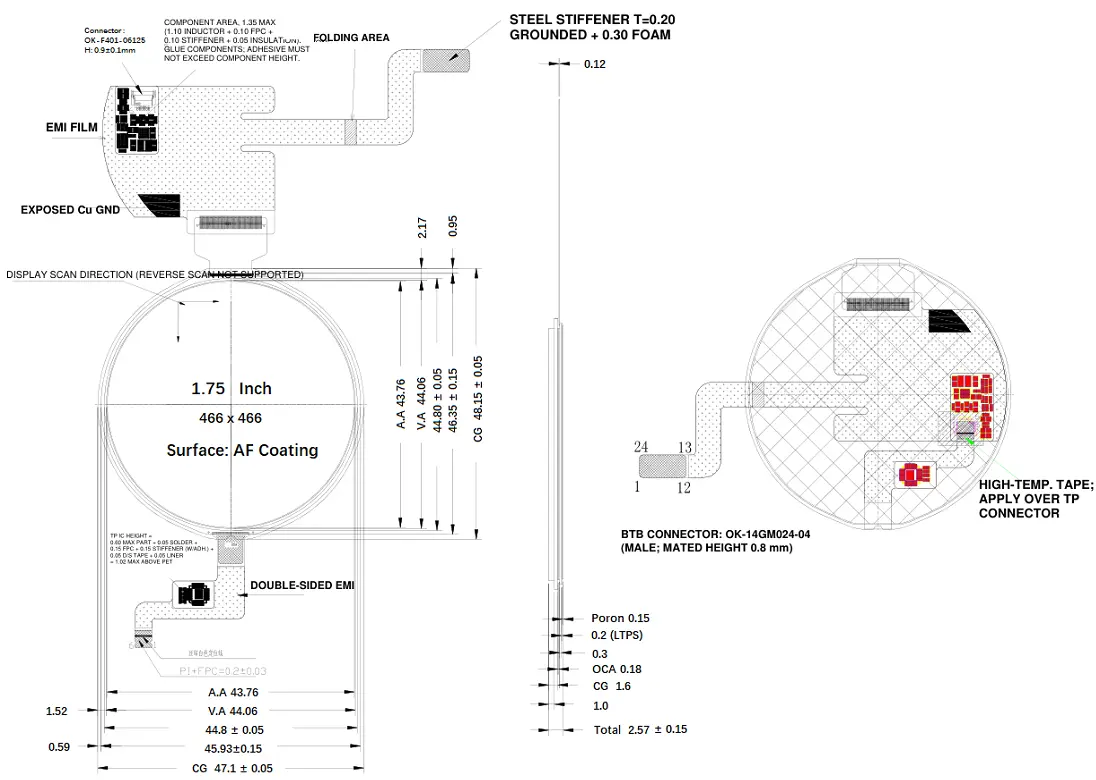

Mechanical Drawing & Interface Definition
Please refer to the model-specific AMOLED specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | TP_VCC | Touch-panel analog power supply. Leave open when touch is not used. |
| 2 | TP_INT | Touch-panel interrupt output. |
| 3 | TP_SDA | Touch-panel I2C data. |
| 4 | TP_SCL | Touch-panel I2C clock. |
| 5 | TP_RST | Touch-panel reset. |
| 6 | GND | Power ground. |
| 7 | SPI_CS | Display chip-select input. |
| 8 | SPI_IO0 | QSPI data I/O 0. |
| 9 | SPI_IO3 | QSPI data I/O 3. |
| 10 | GND | Power ground. |
| 11 | SPI_CLK | QSPI clock input. |
| 12 | GND | Power ground. |
| 13 | SPI_IO1 | QSPI data I/O 1. |
| 14 | SPI_IO2 | QSPI data I/O 2. |
| 15 | SPI_RST | Active-low display reset; required for initialization. |
| 16 | TE | Tearing-effect output for frame-write synchronization. |
| 17 | SWIRE | Power-IC SWIRE protocol setting pin. |
| 18 | GND | Power ground. |
| 19 | IO_VCC | Logic supply, 1.8 to 3.3 V. |
| 20 | VCC | Analog supply, 2.8 to 3.3 V. |
| 21 | NC | No connection. |
| 22 | ELVDD | Positive OLED drive voltage generated by the module. |
| 23 | ELVSS | Negative OLED drive voltage generated by the module. |
| 24 | MTP_PWR | MTP programming supply, 8 V typical. Leave open or connect to ground in normal operation. |
