10.85 Inch ePaper Display Overview

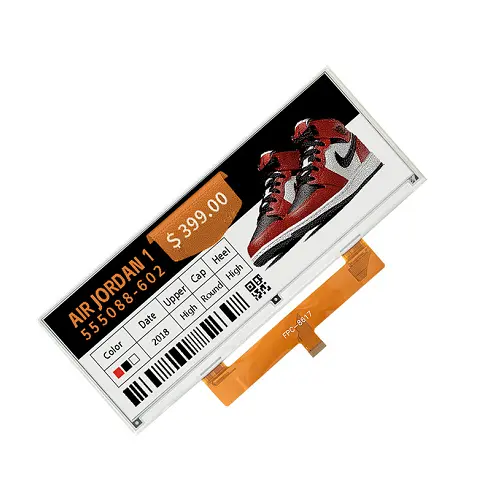

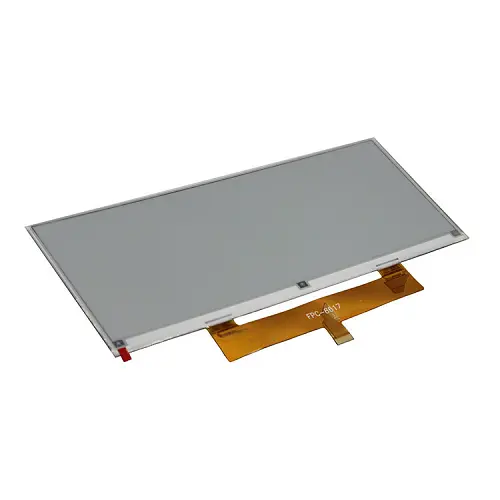

ND109EPN1360480-A01 is a 10.85-inch four-color ePaper display with a 1360 × 480 reflective E Ink panel, SPI interface and UC8579c × 2 controllers. Its wide image area accommodates long text fields, product information and highlighted notices using black, white, red and yellow. Review the 24-pin connection, supply levels, initialization, power sequencing and panel waveform requirements before designing a host interface.
This low-power ePaper display suits retail information strips, office notices and industrial status boards that change periodically. The selected driver circuit and firmware must handle image conversion and refresh scheduling for the complete panel. NoseDisplay can review ESP32 or STM32 host arrangements, cover lens dimensions, FPC routing and enclosure fit for OEM prototypes; complete system power consumption depends on the implementation.
ND109EPN1360480-A01 is a 10.85-inch 1360 × 480 four-color E Ink ePaper display with SPI and UC8579c × 2 controllers. Its wide format suits retail information strips and industrial status boards with periodic updates. Evaluate the 24-pin connection, supply levels, power sequencing, initialization, image conversion and panel waveforms with suitable driver circuitry. NoseDisplay can review host firmware, cover lens dimensions and OEM enclosure requirements.
Technical Specifications

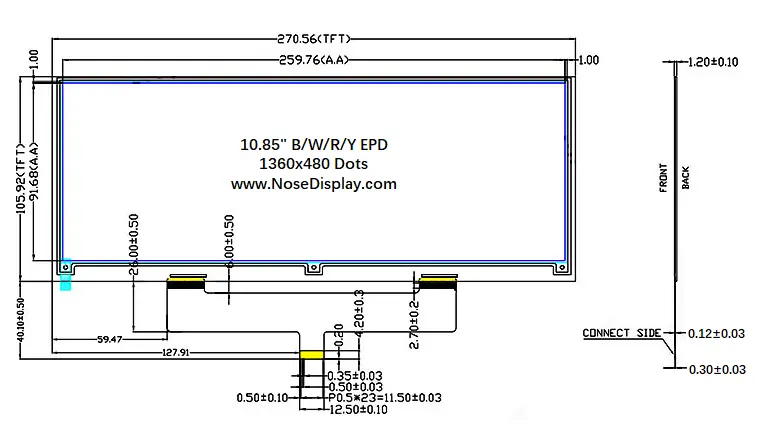

Mechanical Drawing & Interface Definition
Model: ND109EPN1360480-A01
Download Center Contact an Engineer
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | CSB2 | Chip select input pin. (Note 5-1) (I/O: I) |
| 02 | GDR | N-channel MOSFET gate drive control. (I/O: O) |
| 03 | RESE | Current sense input for the control loop. (I/O: I) |
| 04 | NC | Do not connect with other NC pins; keep open. (I/O: NC) |
| 05 | VSH2 | Positive source driving voltage 2. (I/O: C) |
| 06 | TSCL | I²C clock interface to digital temperature sensor. (Note 5-6) (I/O: O) |
| 07 | TSDA | I²C data interface to digital temperature sensor. (Note 5-6) (I/O: I/O) |
| 08 | BS1 | Bus interface selection pin. (Note 5-5) (I/O: I) |
| 09 | BUSY | Busy state output pin. (Note 5-4) (I/O: O) |
| 10 | RES# | Reset signal input, active low. (Note 5-3) (I/O: I) |
| 11 | D/C# | Data/command control pin. (Note 5-2) (I/O: I) |
| 12 | CS# | Chip select input pin. (Note 5-1) (I/O: I) |
| 13 | SCL | Serial clock pin (SPI). (I/O: I) |
| 14 | SDA | Serial data pin (SPI). (I/O: I/O) |
| 15 | VDDIO | Power supply for interface logic pins; connect to VCI. (I/O: P) |
| 16 | VCI | Power supply for the chip. (I/O: P) |
| 17 | VSS | Ground. (I/O: P) |
| 18 | VDD | Core logic power pin, internally regulated from VCI. Connect a capacitor between VDD and VSS. (I/O: C) |
| 19 | VPP | For test; keep open. (I/O: P) |
| 20 | VSH1 | Positive source driving voltage. (I/O: C) |
| 21 | VGH | Power supply pin for positive gate driving voltage and VSH1. (I/O: C) |
| 22 | VSL | Negative source driving voltage. (I/O: C) |
| 23 | VGL | Power supply pin for negative gate driving voltage, VCOM and VSL. (I/O: C) |
| 24 | VCOM | VCOM driving voltage. (I/O: C) |
Sample Ordering & Delivery
Evaluate ND109EPN1360480-A01 10.85-inch engineering samples before integration. Shipping is charged separately; import duties and taxes are excluded. Estimated delivery includes preparation. Confirm final terms before payment.
Sample MOQ
2 pcs per modelMinimum 2 pcs per model.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
10.85 Inch ePaper Display Applications
ND109EPN1360480-A01 suits retail information strips, shelf promotions, office notices and industrial status boards. Its wide reflective image area supports readable text and four-color highlights in systems designed for periodic updates and suitable driver hardware.
Smart Office Signage
Electronic Shelf Labels
IoT Status Displays
Equipment Labels

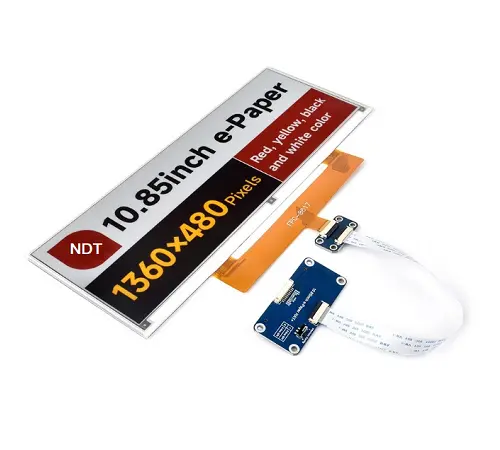

Matching Driver Board
