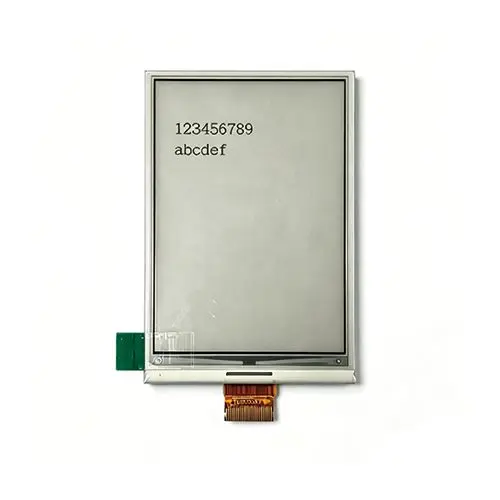

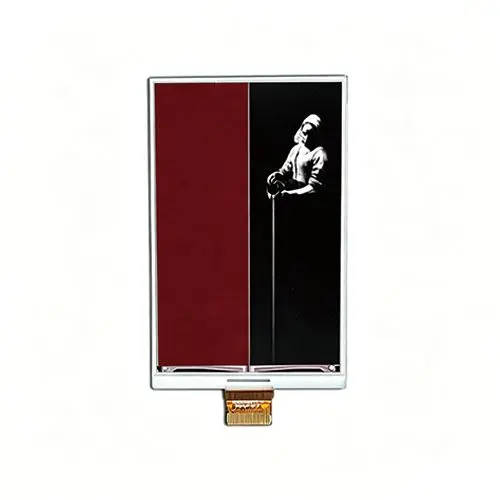

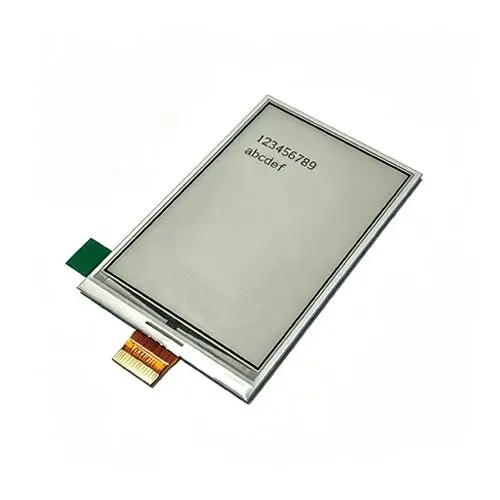

3.52 Inch ePaper Display Overview
ND035EPN240360-A01 is a 3.52-inch black white Red 3 colors ePaper display with a 240 × 360 E Ink panel, UC8553 controller and SPI interface. The reflective screen retains an image between updates without a backlight, making it suitable for periodically refreshed information. Before designing the host PCB, verify the 24-pin connection, supply levels, power sequencing, controller initialization and waveform requirements.
The image area suits equipment status panels, handheld instrument readouts, electronic labels and battery-powered IoT devices. Evaluate text size, mounting orientation and enclosure clearances against the mechanical drawing. NoseDisplay can assess ESP32 or STM32 host connections and suitable Arduino or Raspberry Pi driver arrangements, with FPC routing, protective lenses, optional touch integration and prototype firmware requirements reviewed for each OEM project.
ND035EPN240360-A01 is a 3.52-inch black-and-white E Ink ePaper module with 240 × 360 pixels, a UC8553 controller and SPI interface. It suits equipment status panels, handheld instruments and battery-powered IoT devices with periodic updates. Integration requires a suitable driver circuit, verified 24-pin connections, power sequencing, initialization and panel-specific waveforms. NoseDisplay can evaluate host connections, enclosure clearances and OEM prototype requirements.
Technical Specifications

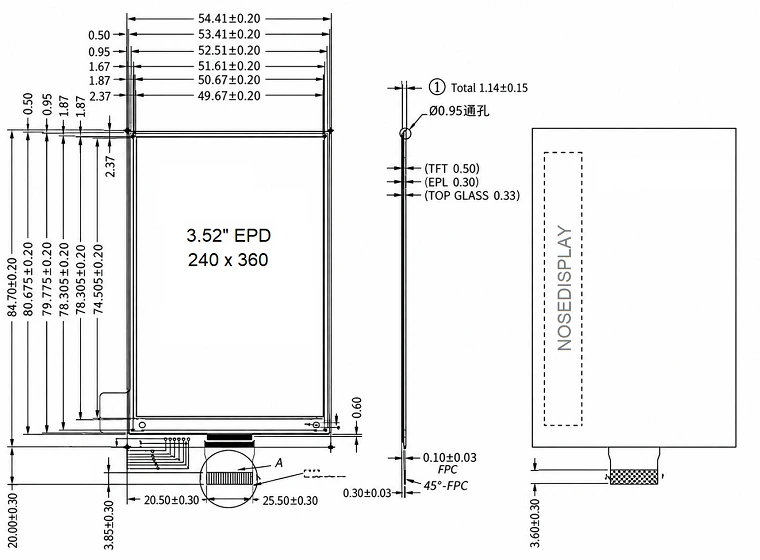

Mechanical Drawing & Interface Definition
Model: ND035EPN240360-A01
Download Center · Contact an Engineer
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | NC | No connection. Leave open; do not connect to other NC pins. |
| 02 | GDR | Gate drive control for an N-channel MOSFET. |
| 03 | RESE | Current-sense input for the control loop. |
| 04 | NC | No connection. Leave open. |
| 05 | VSH2 | Positive source driving voltage. |
| 06 | TSCL | I²C clock to the digital temperature sensor. |
| 07 | TSDA | I²C data to the digital temperature sensor. |
| 08 | BSI | Bus selection pin. |
| 09 | BUSY | Busy status output. |
| 10 | RES# | Reset input, active low. |
| 11 | D/C# | Data/command control: high for data, low for command. |
| 12 | CS# | Chip-select input, active low. |
| 13 | SCL | SPI serial clock. |
| 14 | SDA | SPI serial data. |
| 15 | VDDIO | Interface logic power supply. |
| 16 | VCI | Chip power supply. |
| 17 | VSS | Ground. |
| 18 | VDD | Core logic power supply. |
| 19 | VPP | OTP programming power supply. |
| 20 | VSH1 | Positive source driving voltage. |
| 21 | VGH | Positive gate driving voltage. |
| 22 | VSL | Negative source driving voltage. |
| 23 | VGL | Negative gate driving voltage. |
| 24 | VCOM | VCOM driving voltage. |
Sample Ordering & Delivery
ND035EPN240360-A01 3.52-inch engineering samples support prototypes and driver evaluation. Shipping is charged separately; duties and taxes are excluded. Estimated delivery includes preparation. Confirm final terms before payment.
Sample MOQ
3 pcs per modelMinimum 3 pcs per model.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
3.52 Inch ePaper Display Applications
ND035EPN240360-A01 suits equipment status panels, handheld instrument readouts, electronic labels and battery-powered IoT devices. The 240 × 360 monochrome image area can organize measurements, identifiers and status symbols, with layout orientation and refresh scheduling assessed for the intended device.
Electronic Shelf Labels
Smart Home Status
IoT Status Displays
Equipment Labels
Matching Driver Board
Driver-board evaluation for ND035EPN240360-A01 must match the UC8553 controller, SPI interface and 24-pin connection. Check logic levels, supply rails, power sequencing, initialization and waveform handling before reusing existing firmware. A 240 × 360 image conversion and refresh plan is required for the selected host. NoseDisplay can assess ESP32, STM32, Arduino or Raspberry Pi arrangements; board availability, wiring compatibility and software adaptation are confirmed for each configuration.
Customization Options
For ND035EPN240360-A01, OEM evaluation can cover 24-pin FPC routing, cover-lens dimensions, enclosure fitting and UC8553 driver-board adaptation. Optional touch integration and firmware requirements are assessed against the intended instrument or status-panel design.
ePaper & FPC Options
Alternative display sizes, colors and FPC configurations can be evaluated for your project.
Touch Integration
Touch panel options can be evaluated according to enclosure and operating requirements.
Cover Lens Options
Custom cover glass or PMMA lenses with optional printing, shape and surface treatments.
Driver Board Support
Driver board and interface solutions can be evaluated for your host platform.
