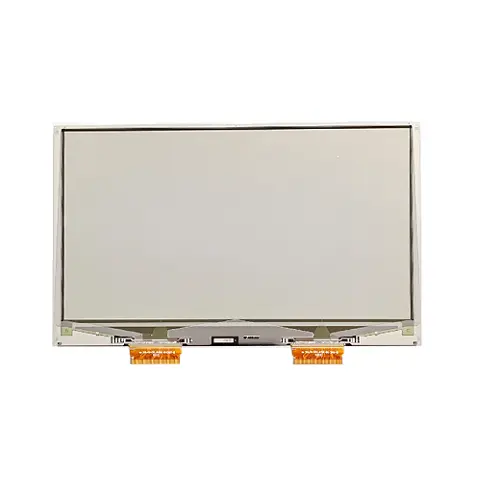

8.1 Inch ePaper Display Overview
ND081EPN1024576-B01 is an 8.1-inch six-color ePaper display with a 1024 × 576 reflective E Ink panel and ED2208-HAB × 2 ICs. It requires an external TCON rather than a direct connection to the bare panel. The recommended OK-EL081EF2 controller supports SPI and I2C host interfaces; review the selected controller configuration, supply requirements, image conversion and display initialization before integration.
This low-power ePaper display suits office notices, meeting-room schedules, retail information and other periodically updated color signage. The existing specification lists an 8.14-inch display diagonal, which should be checked against the mechanical drawing when designing an enclosure. NoseDisplay can evaluate cover lens, driver hardware, host firmware and OEM mechanical requirements for prototype development and subsequent production planning.
ND081EPN1024576-B01 is an 8.1-inch 1024 × 576 six-color E Ink ePaper display using ED2208-HAB × 2 ICs. External TCON hardware is required; the recommended OK-EL081EF2 controller supports SPI and I2C host integration. It suits room schedules, retail information and office signage. Review supply requirements, initialization, image conversion, mechanical fit and firmware for the selected controller before prototype evaluation. Confirm project-specific integration requirements.
An external TCON is required. The recommended OK-EL081EF2 controller supports SPI and I2C interfaces.
Technical Specifications

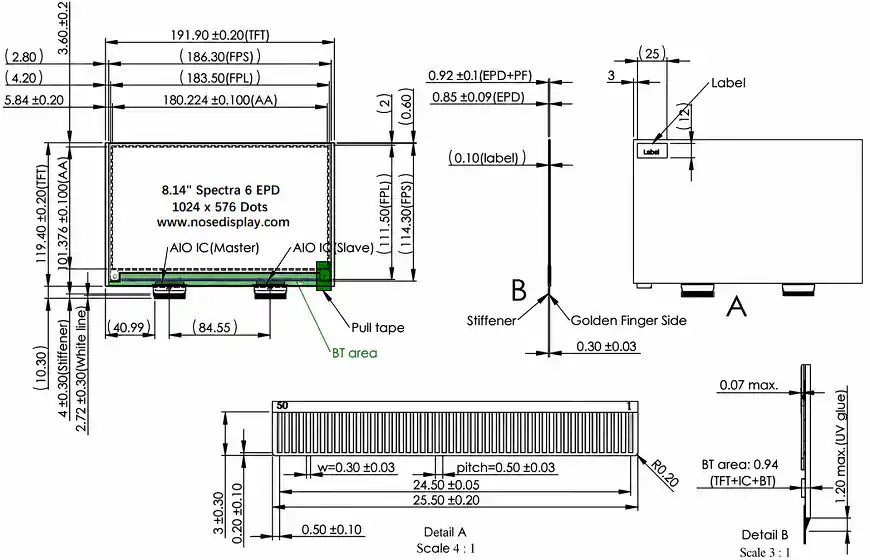

Mechanical Drawing & Interface Definition
Model: ND081EPN1024576-B01
Download Center · Contact an Engineer
PIN Description
External TCON required.
Recommended controller: OK-EL081EF2.
The OK-EL081EF2 controller supports SPI and I2C interfaces.
Sample Ordering & Delivery
Evaluate ND081EPN1024576-B01 8.1-inch engineering samples before integration. Shipping is charged separately; import duties and taxes are excluded. Estimated delivery includes preparation. Confirm final terms before payment.
Sample MOQ
2 pcs per modelMinimum 2 pcs per model.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
8.1 Inch ePaper Display Applications
ND081EPN1024576-B01 suits office notices, meeting-room schedules, retail information displays and connected equipment signs. Its six-color screen is intended for periodically updated content with an appropriate external TCON, power design and host firmware.
Electronic Shelf Labels
Smart Home Status
IoT Status Displays
Equipment Labels

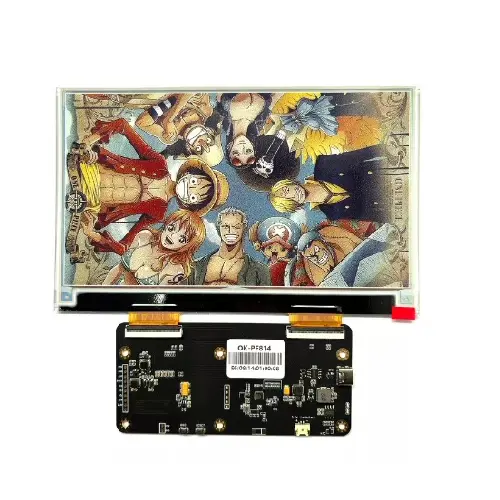

Matching Driver Board
ND081EPN1024576-B01 requires an external TCON for its ED2208-HAB × 2 display ICs. The recommended OK-EL081EF2 controller supports SPI and I2C host interfaces. Confirm the controller configuration, supply rails, power sequencing, initialization, waveform handling and image conversion before developing host firmware; package contents and controller availability must be confirmed for the selected project.
Customization Options
For ND081EPN1024576-B01 six-color signage projects, NoseDisplay can evaluate external TCON integration, FPC connections, cover lens and enclosure requirements. Optional touch, host firmware and prototype-to-production support are assessed separately for each OEM configuration.
ePaper & FPC Options
Alternative display sizes, colors and FPC configurations can be evaluated for your project.
Touch Integration
Touch panel options can be evaluated according to enclosure and operating requirements.
Cover Lens Options
Custom cover glass or PMMA lenses with optional printing, shape and surface treatments.
Driver Board Support
Driver board and interface solutions can be evaluated for your host platform.
Quality & Compliance Support
We provide quality and compliance documentation for qualified OEM projects
based on the selected module, BOM and manufacturing configuration.
RoHS
EU RoHS compliant materials and process control
REACH
Support REACH regulation compliance
Reliability Testing
Environmental & mechanical reliability testing reports
ESD Control
ESD protection design and testing capability
Quality System
Manufactured under a certified quality management system
Documentation availability and scope are confirmed according to the selected module, BOM, manufacturing source and project requirements.
