Product Overview

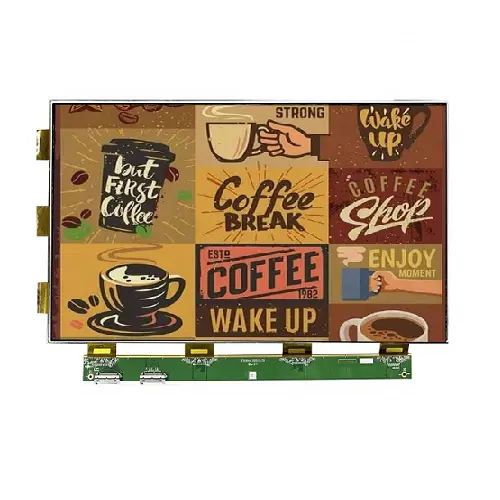

NoseDisplay ND253EPN32001800-A01 is a six-color ePaper display module for retail signs, public information panels and periodically updated signage. Its large rectangular E Ink Spectra 6 screen provides a low-power electronic paper option for embedded information displays with static or periodically updated content. An external TCON connects the mini-LVDS panel to the host for display updates, while driver board selection, initialization and waveform requirements should be reviewed for each project. The reflective screen retains information between updates, helping OEM teams build readable status displays for large enclosures and energy-conscious applications. NoseDisplay can review FPC connections, enclosure requirements and project-specific integration options during evaluation.
NoseDisplay ND253EPN32001800-A01 is a six-color ePaper display module for retail signs, public information panels and periodically updated signage. Its large rectangular E Ink Spectra 6 screen retains information between updates for low-power embedded applications. An external TCON connects the mini-LVDS panel to the host for display updates; driver board selection, initialization and waveform requirements should be reviewed against the requirements of each OEM project.
Mass production has been discontinued; remaining inventory only. An external TCON is required for the mini-LVDS panel. The recommended T2000 TCON costs an additional US$25. The recommended OK-TC04A-T2000 controller board supports MIPI-DSI (4-lane) and USB 3.0 inputs.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND253EPN32001800-A01 |
| Display Size | 25.3 inch |
| Resolution | 3200 × 1800 pixels |
| Display Type | ePaper (E Ink Spectra 6) |
| Display Color | Six Color (E Ink Spectra 6) |
| Shape | Rectangle |
| Display Mode | Reflective |
| Pixel Density | Approx. 145 DPI |
| Parameter | Specification |
| Outline Dimensions | 576.5 × 333.0 × 0.85 mm |
| Active Area | 560.0 × 315.0 mm |
| Display Interface | mini-LVDS (external TCON required) |
| Connection Type | -- |
| IC | -- |
| Weight | 385 ± 15 g |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | −25°C to +60°C |

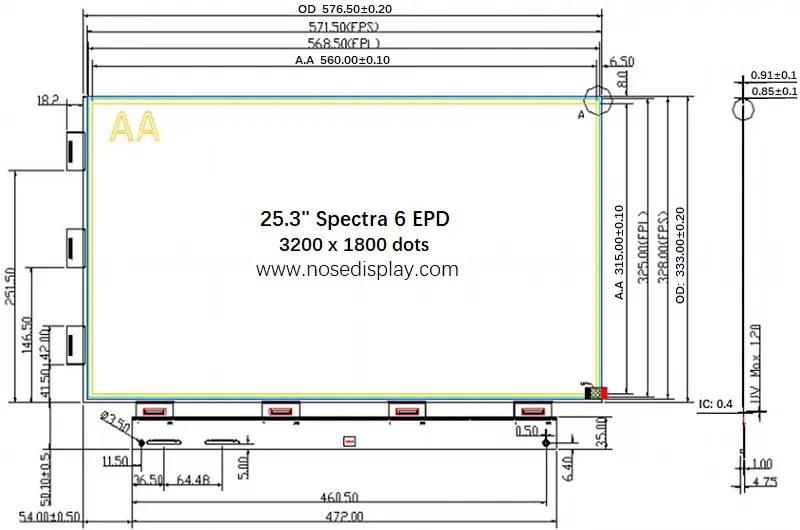

Mechanical Drawing & Interface Definition
Please refer to the model-specific ePaper display specification for mechanical drawings, dimensions, FPC connections and pin definitions. Visit our Download Center to view available datasheets, or contact an engineer to request the specification for your selected model.
PIN Description
Panel Interface
mini-LVDS (external TCON required).
Recommended TCON
T2000 — additional US$25.
Recommended Controller Board
OK-TC04A-T2000.
Supported Inputs
MIPI-DSI (4-lane)
USB 3.0
Sample Ordering & Delivery
Samples are available for engineering evaluation. Shipping excludes import duties and taxes. Estimated delivery times are in calendar days, including 4 days of preparation. Final terms are confirmed before payment.
Suggested Quantity
2 pcs per modelMinimum 2 pcs per model.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～10 days
Total Time: ～14 days
Express Delivery
Shipping Fee
Transit Time: ～5 days
Total Time: ～9 days
Typical Applications
Suitable for electronic shelf labels, smart home status panels, IoT devices and equipment labels, this ePaper display supports low-power embedded applications where clear readability and energy-efficient operation are important.

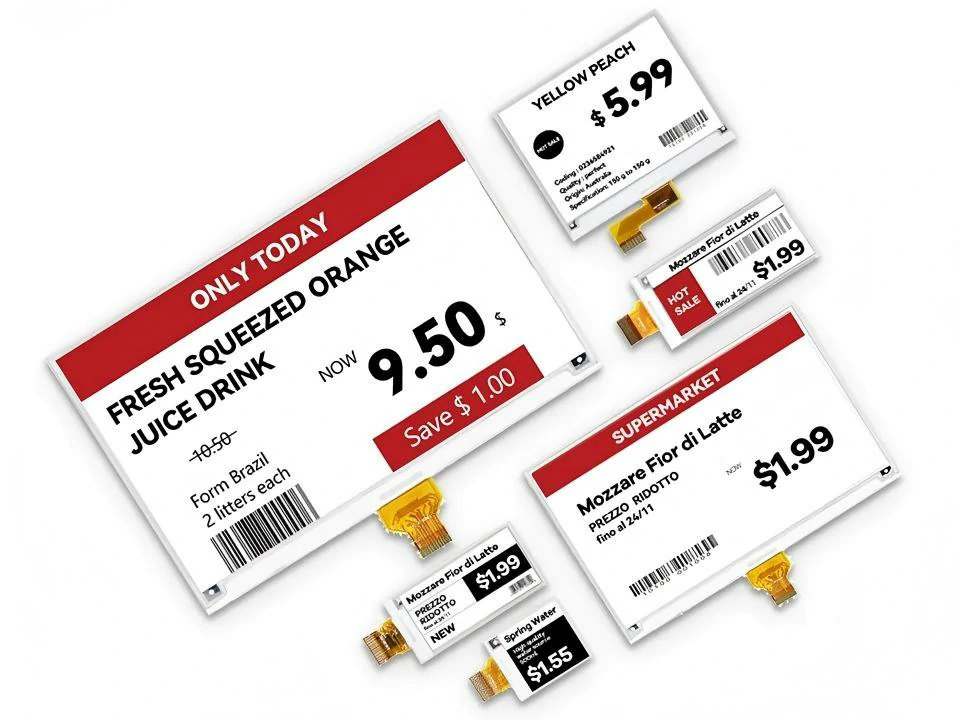

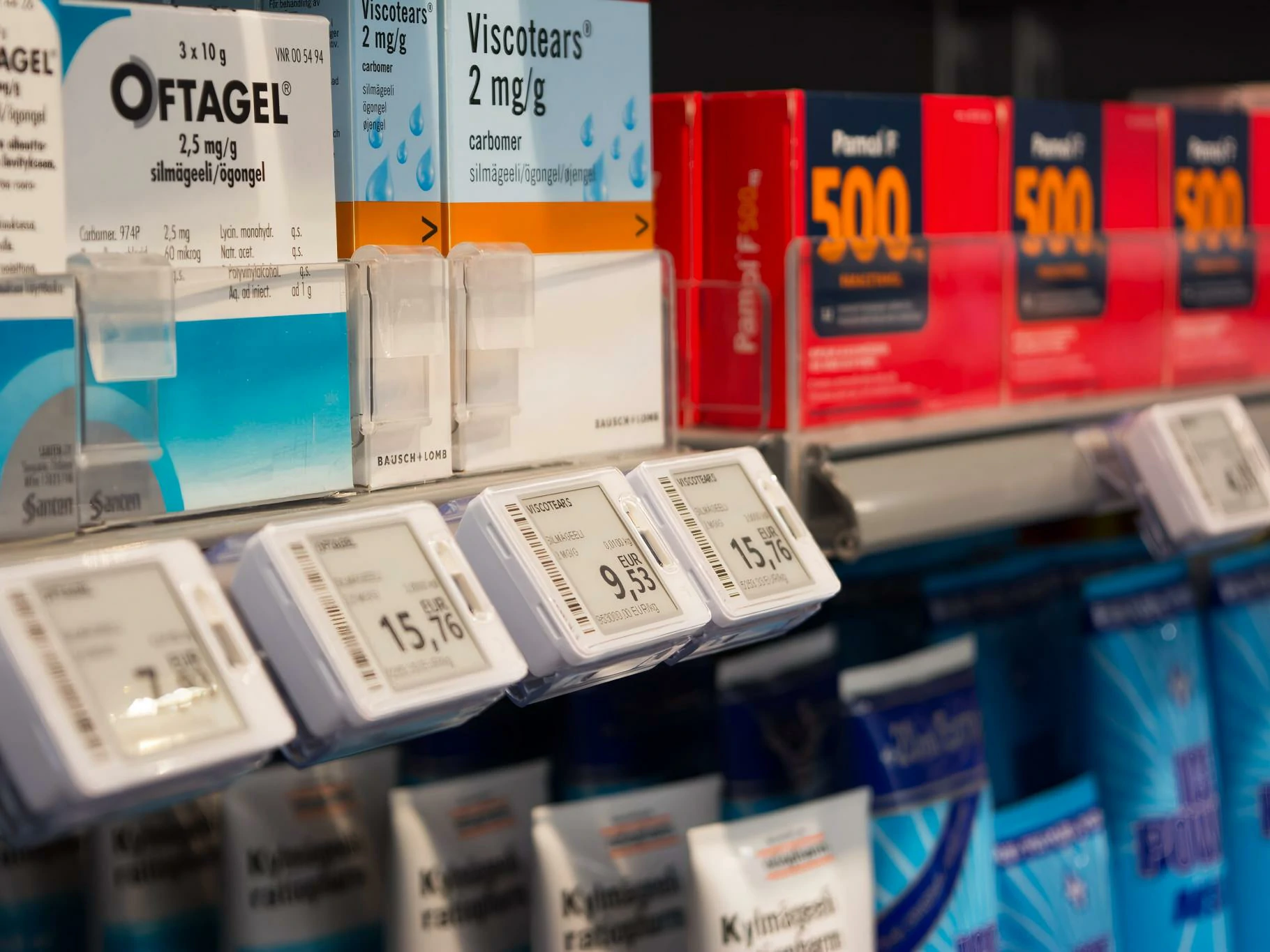

Electronic Shelf Labels

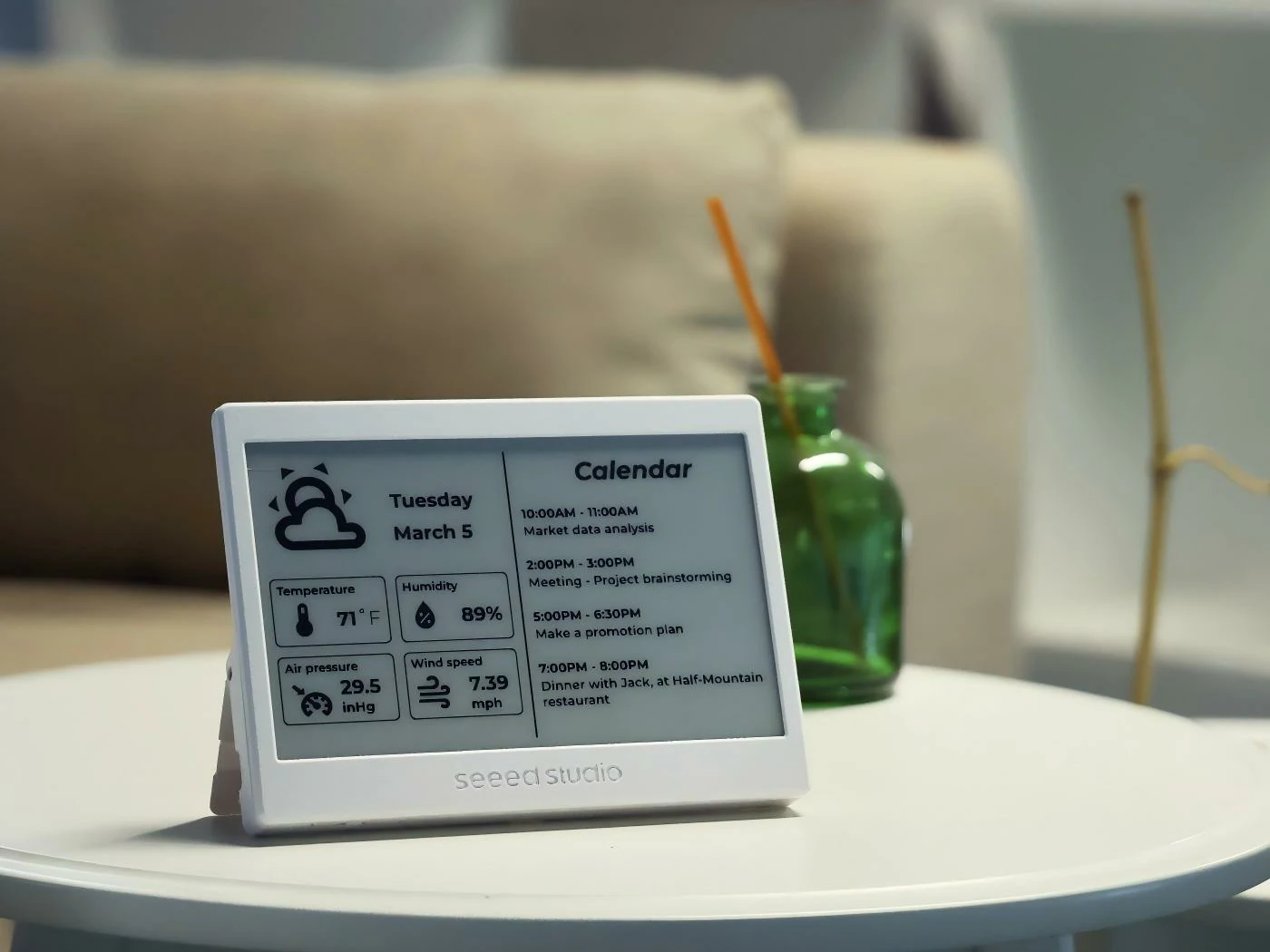

Smart Home Status

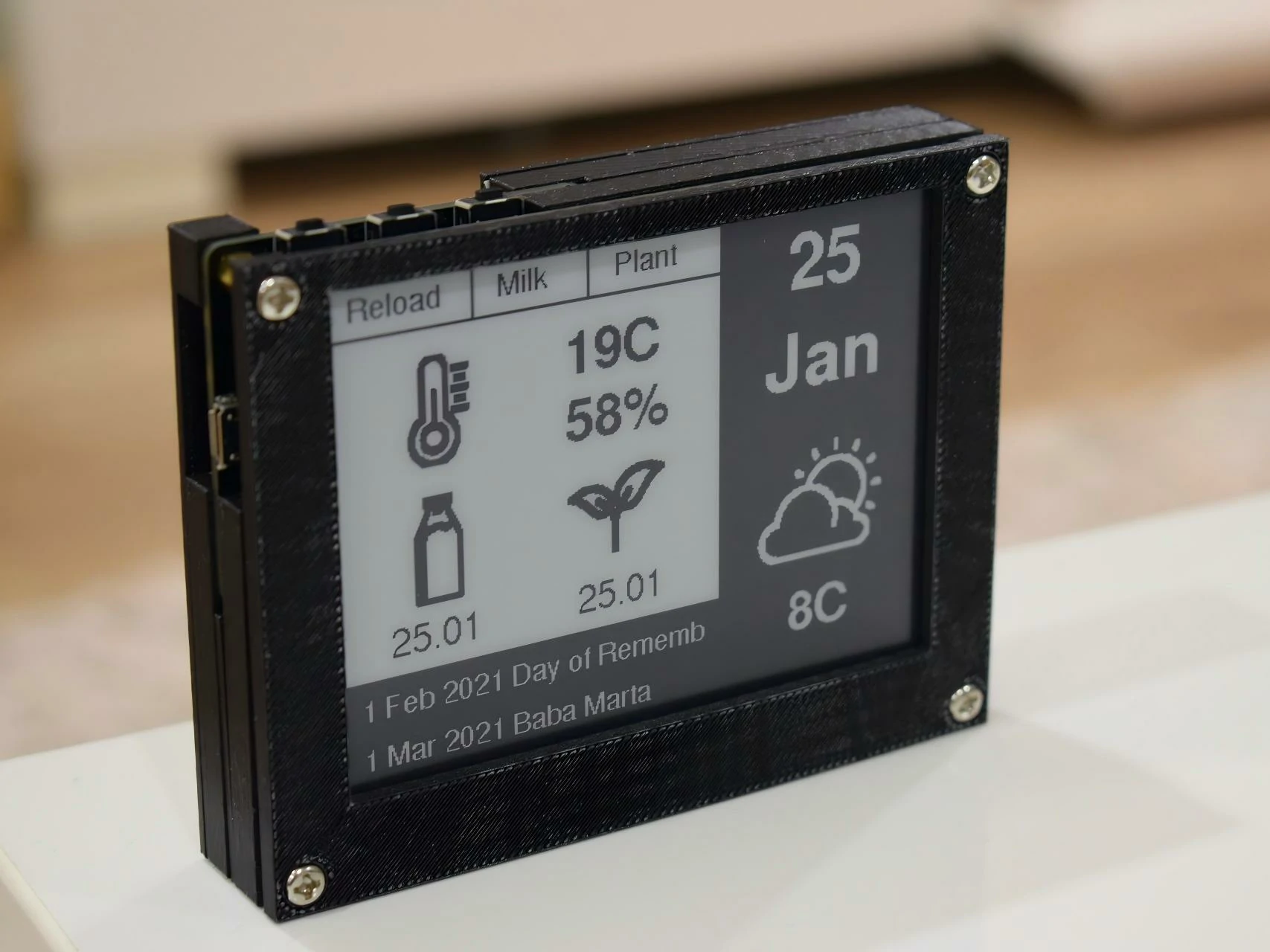

IoT Status Displays
Equipment Labels
Matching Driver Board
This 25.3-inch E Ink Spectra 6 panel uses a mini-LVDS interface and requires an external TCON. The recommended TCON is T2000, available for an additional US$25.
The recommended controller board is OK-TC04A-T2000, supporting MIPI-DSI (4-lane) and USB 3.0 inputs. Share your host platform, power requirements and application so NoseDisplay can review the controller board and panel integration for your project.
Customization Options
Engineering support for display selection, FPC integration, cover lenses, touch solutions and driver boards for OEM projects.
ePaper & FPC Options
Alternative display sizes, colors and FPC configurations can be evaluated for your project.

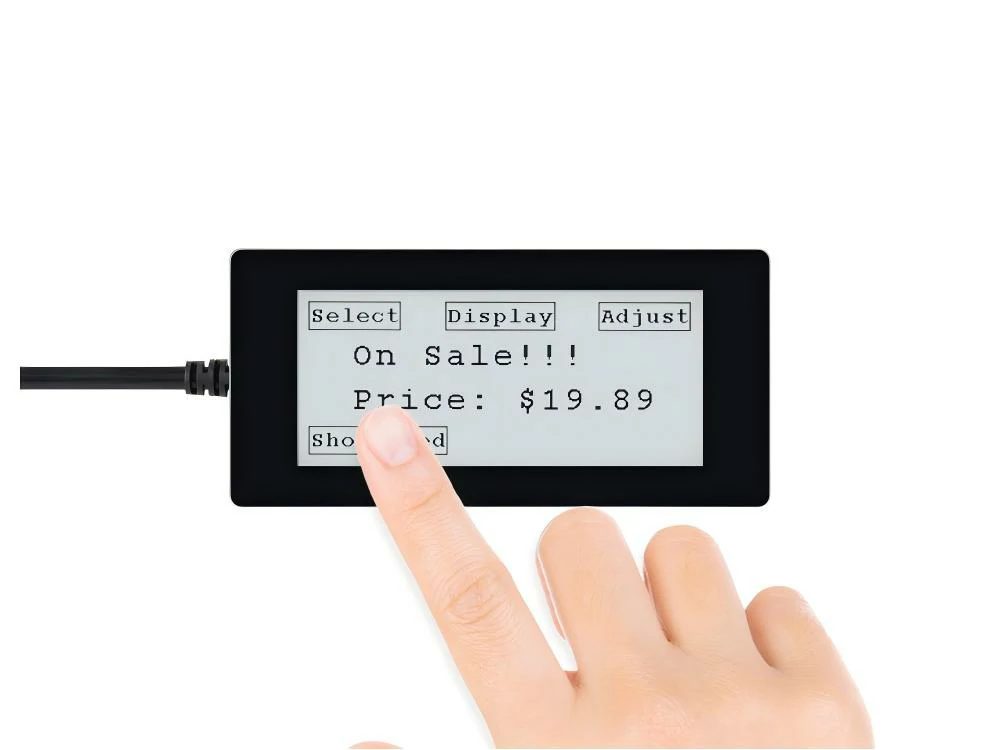

Touch Integration
Touch panel options can be evaluated according to enclosure and operating requirements.

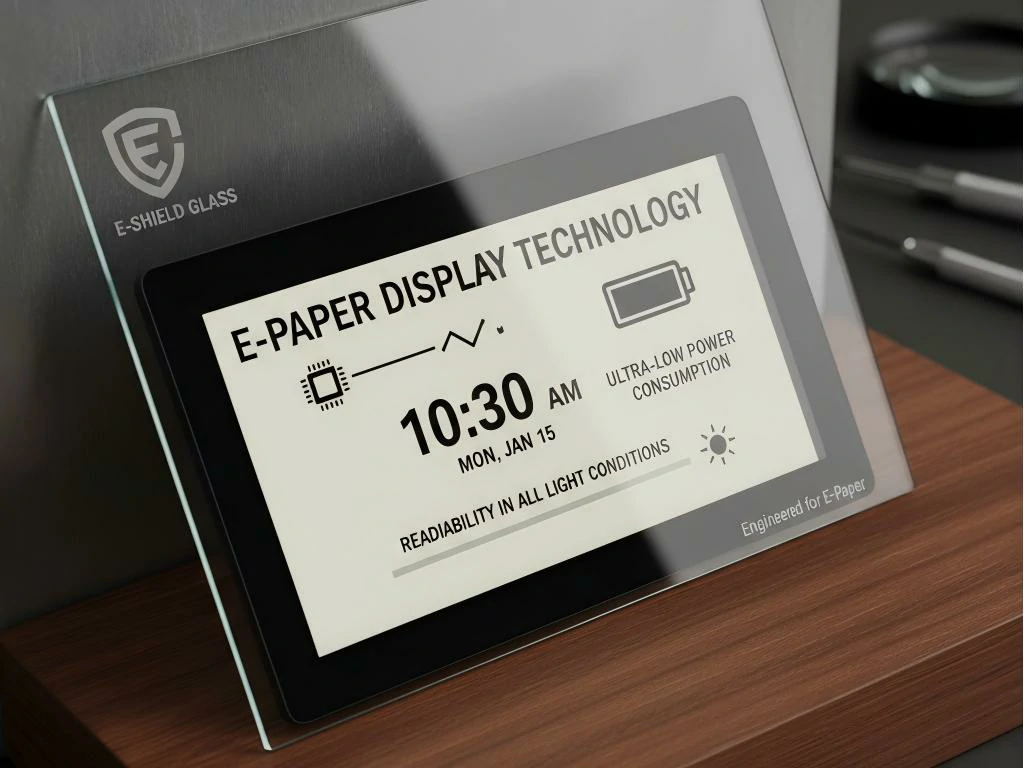

Cover Lens Options
Custom cover glass or PMMA lenses with optional printing, shape and surface treatments.

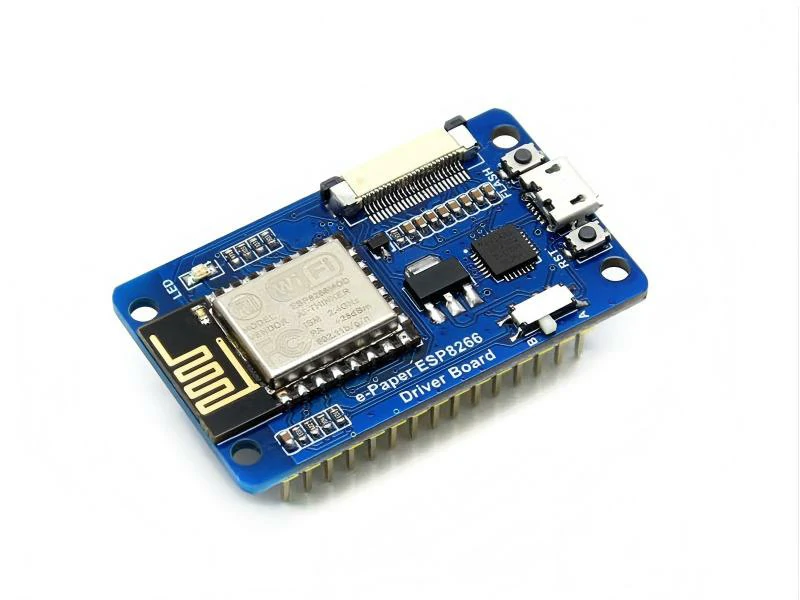

Driver Board Support
Driver board and interface solutions can be evaluated for your host platform.
Quality & Compliance Support
We provide quality and compliance documentation for qualified OEM projects
based on the selected module, BOM and manufacturing configuration.
RoHS
EU RoHS compliant materials and process control
REACH
Support REACH regulation compliance
Reliability Testing
Environmental & mechanical reliability testing reports
ESD Control
ESD protection design and testing capability
Quality System
Manufactured under a certified quality management system
Documentation availability and scope are confirmed according to the selected module, BOM, manufacturing source and project requirements.
