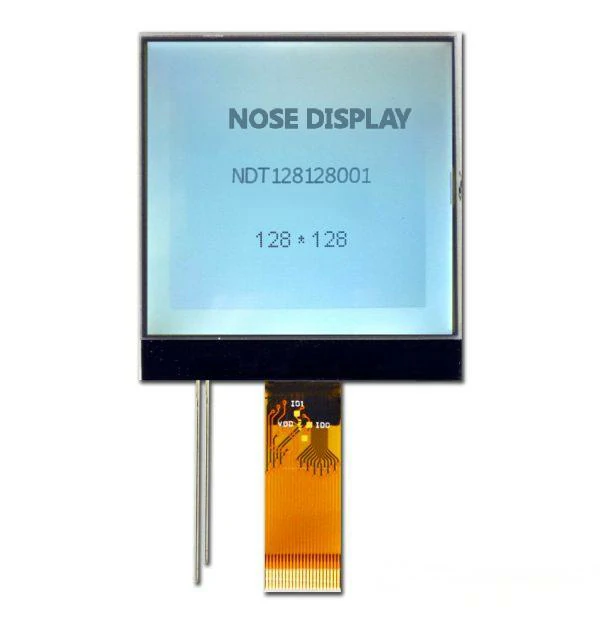

NDTG128128001 | 128×128 COG LCD Module 2.1 Inch FSTN Transflective Display UC1617 Controller White LED Backlight 8-bit Parallel for Arduino
The NDTG128128001 2.1″ 128×128 COG LCD Module is a compact and reliable display solution designed for embedded and handheld applications. Built with chip-on-glass (COG) technology, it offers a slim profile (only 4.3mm thickness) while maintaining excellent durability and performance.
This 128×128 transflective FSTN+ positive LCD delivers clear, high-contrast visuals under both indoor and outdoor lighting conditions. Powered by the UC1617 controller (or equivalent), it supports 6800/8080 8-bit parallel interfaces for smooth data transfer and easy integration.
With a white LED backlight, wide operating temperature range (-20°C to 70°C), and flexible voltage options (3V/5V), this module is well-suited for industrial control devices, portable instruments, and consumer electronics. Its 22-pin connection ensures stable integration with Arduino, Raspberry Pi, and similar development boards, making it an ideal choice for developers who need a reliable COG LCD display.
General Specifications
| Part No.: | NDTG128128001 |
| Display Format: | 128 x 128 pixels |
| Display Type: | FSTN+, Positive |
| Display Mode: | Transflective |
| Controller IC: | UC1617 or equivalent |
| Viewing Angle: | 12:00 |
| Outline Dimension: | 48.0 x 52.8 x 4.3mm |
| Active Area: | 44.0 x 40.5mm |
| Supply Voltage: | 5V, 3V |
| Backlight: | White |
| Interface: | 6800/8080 8-bit parallel |
| Connection Type: | 22 pin |
| Compatibility: | Arduino, Rasberry Pi and similar development boards |
| Operating Temperature: | -20°C ~ 70°C |
| Storage Temperature: | -30°C ~ 80°C |
Pin Defenition
| Pin No. | Symbol | Function Description |
|---|---|---|
| 1 | VLCD | High voltage LCD power supply |
| 2 | VB0+ | LCD bias voltage |
| 3 | VB1+ | LCD bias voltage |
| 4 | PS1 | Bus mode. PS1:PS0 (1:1 6800 series interface) (1:0 8080 series interface) |
| 5 | PS0 | |
| 6 | VB1- | LCD bias voltage |
| 7 | VB0- | LCD bias voltage |
| 8 | VDD | Power supply |
| 9 | VSS | Ground |
| 10 | WR1 | Controls the read/write operation of the host interface.(In 6800 series WR1:EN,WR0:R/W. In 8080 series WR1:/RD,WR0:/WR) |
| 11 | WR0 | |
| 12 | CD | Register selection(L: Control data H: Display data) |
| 13 | CS0 | Chip select(When CS0=L chip is select) |
| 14 | RESET | Reset signal |
| 15-22 | D7-D0 | Data bus |

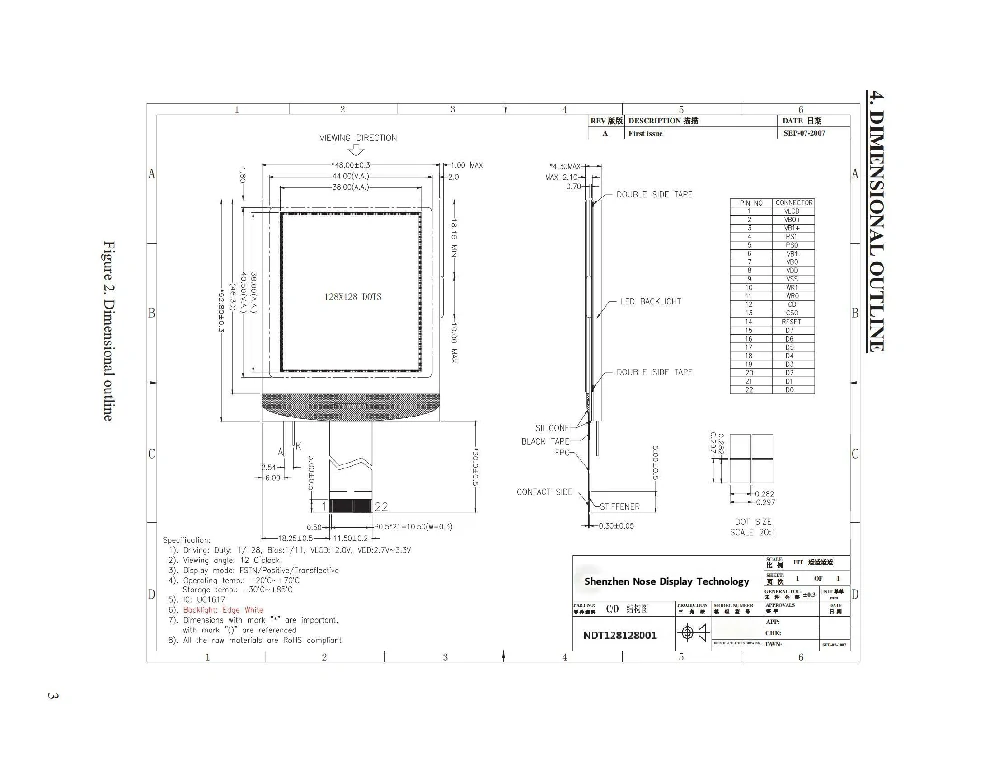

Display Drawing
