NDTC1602001 | Character Display 16×2 LCD | STN-Yellow/Green Positive | Transflective 16 Pin

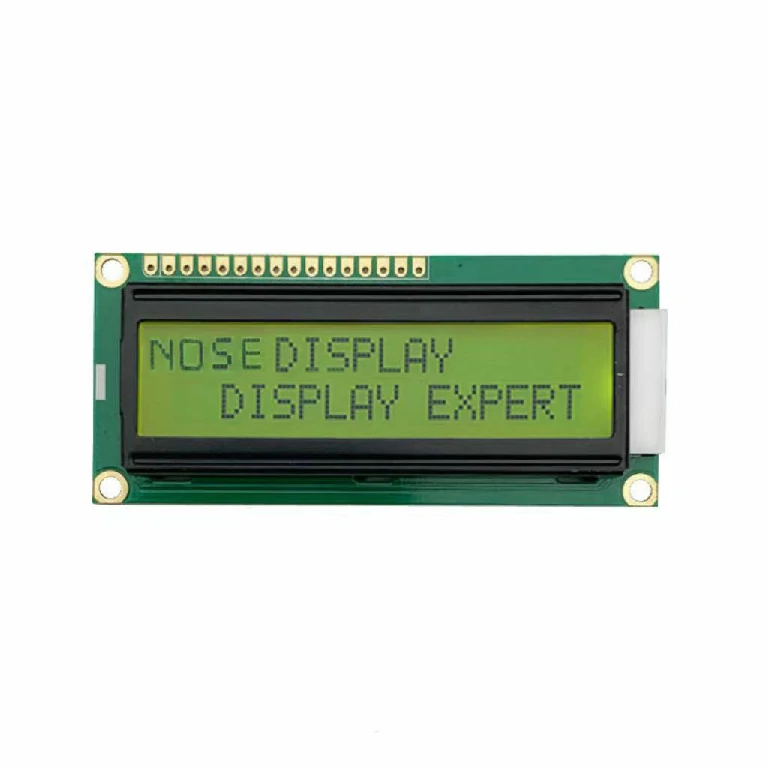

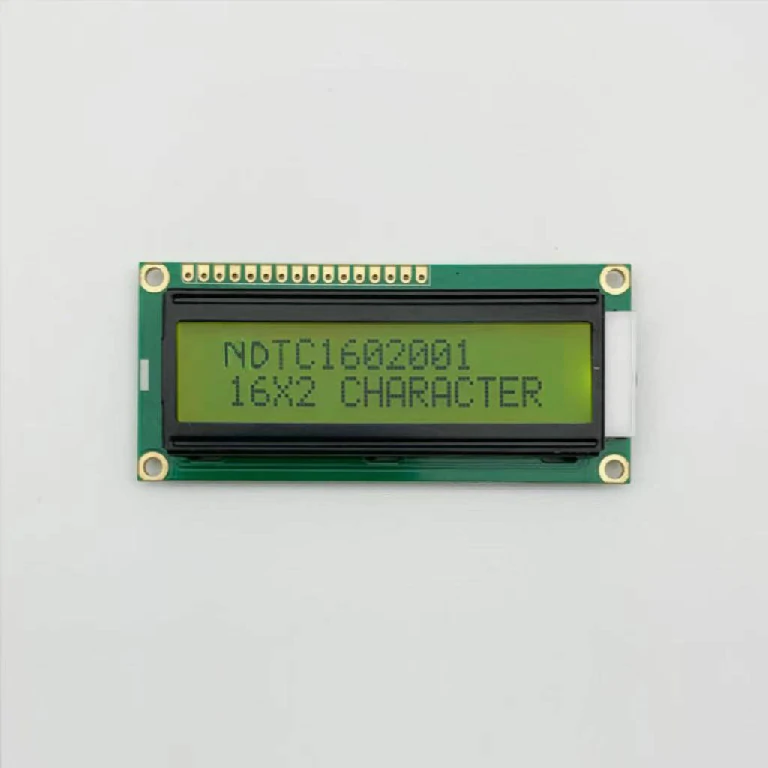

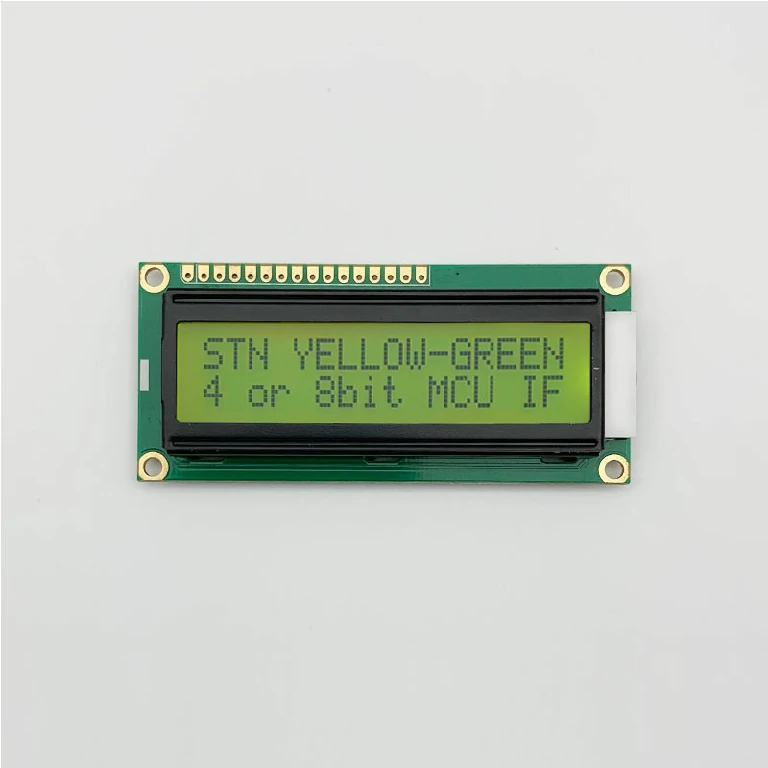

The NDTC1602001 is a high-performance 1602 LCD module featuring 16 characters x 2 lines in a compact format. Designed with STN positive yellow-green transflective technology and equipped with a side-mounted LED backlight, this 16×2 LCD panel ensures excellent readability in both indoor and outdoor environments, making it ideal for applications that demand visibility under ambient light.
Powered by the AIP31066 controller and supporting an 8-bit MPU interface, the NDTC1602001 is fully compatible with a wide range of embedded platforms including Arduino, STM32, and ESP32. Its 1/16 duty, 1/5 bias drive condition guarantees stable performance with low power consumption, suitable for energy-conscious systems.
With a viewing direction at 6 o’clock, the NDTC1602001 delivers a clear display from below eye level, ideal for fixed-angle instruments or handheld devices. The module’s 80.0 x 36.0 x 11.8 mm outline size and 64.3 x 16.0 mm viewing area offer a balanced footprint for compact design integration. Whether you’re building industrial equipment, smart meters, or portable consumer devices, the NDTC1602001 1602 LCD offers the durability, visibility, and efficiency you need.
Search Keyword: LCD 16×2, lcd display 16×2, 16×2 lcd panel, 16×2 lcd display, lcd1602, 1602 lcd, display 16×2, lcd 2×16, 1602 lcd display, 2×16 lcd display, 16×2 lcd
General Specifications
| Display Format: | 16×2 Characters |
| Display Type: | STN (+) Yellow/Green |
| Display Mode: | Transflective |
| Controller IC: | AIP31066 |
| Viewing Angle: | 6:00 |
| Outline Dimension: | 80×36×11.8mm |
| Viewing Area: | 64.3×16.0mm |
| Supply Voltage: | 5V |
| Backlight: | Optional (White, Yellow, Green, Red, Purple) |
| Interface: | 8-bit MCU Parallel |
| Connection Type: | 16 Pin |
| Compatibility: | Arduino and similar development boards |
| Operating Temperature: | -20°C ~ 70°C |
| Storage Temperature: | -30°C ~ 80°C |
Interface Definition
| Pin No. | Symbol | Function |
|---|---|---|
| 1 | VSS | Ground (0V) |
| 2 | VDD | Supply Voltage for Logic (+5.0V ) |
| 3 | VO | Contrast Adjustment |
| 4 | RS | Data/Instruction Select |
| 5 | R/W | Read/Write Select |
| 6 | E | Enable Signal |
| 7 | DB0 | Data Bus |
| 8 | DB1 | Data Bus |
| 9 | DB2 | Data Bus |
| 10 | DB3 | Data Bus |
| 11 | DB4 | Data Bus |
| 12 | DB5 | Data Bus |
| 13 | DB6 | Data Bus |
| 14 | DB7 | Data Bus |
| 15 | LED_A | LED Power Supply + (5.0V) |
| 16 | LED_K | LED Power Supply – (0V) |
Custom 16x2 Character Display Solutions
We deliver tailored custom display solutions with flexible sizes, interfaces, and designs, including 16x2 character displays, to perfectly match your product’s application needs.
Cable Customization
Customize the cable length, pinout, and position to perfectly suit the 16×2 character STN (+) yellow/green display. Add connectors or modify configurations for seamless and secure connections tailored to your project.
Connector Custom
Modify connectors to meet the needs of your 16×2 character STN (+) display. Whether it’s pin headers, right-angle headers, or other types, our engineers ensure optimal compatibility and performance for your setup.
Interface Custom
Choose from a variety of interface options such as 8-bit MCU Parallel, USB, or SPI, to integrate effortlessly with your 16×2 character LCD display. Our experts will guide you in selecting the best interface for your project’s needs.
Tailored PCB Design
Tailor the shape, size, pinout, and component layout of your PCB to perfectly match the 16×2 character STN (+) yellow/green display. We offer flexible customization options to ensure flawless integration into your hardware.
