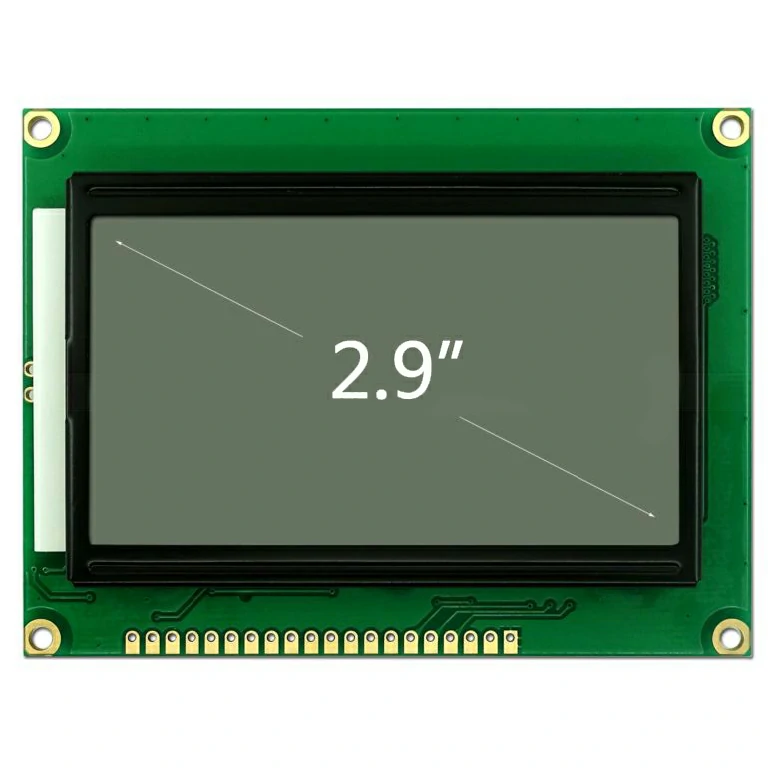

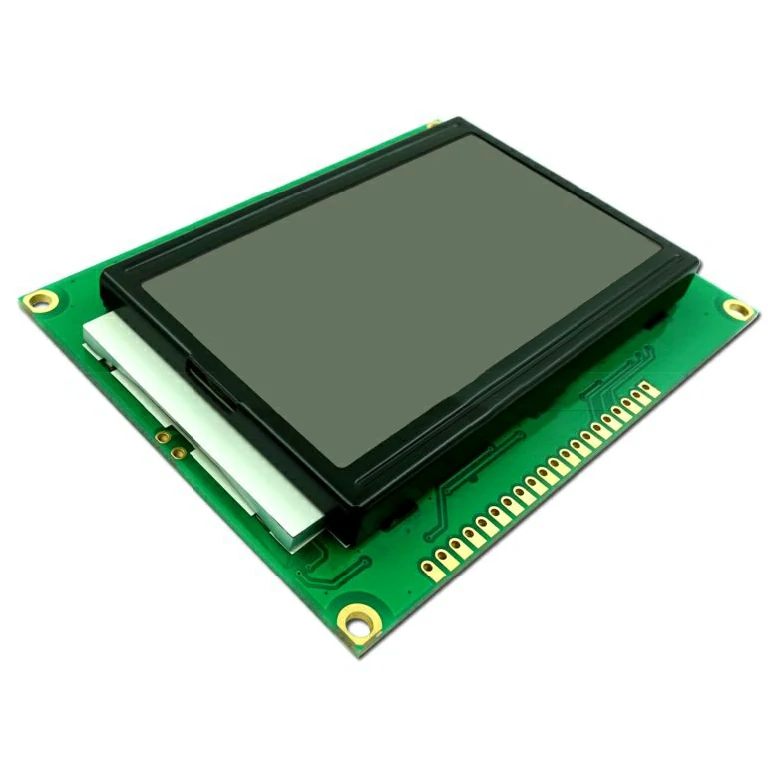

NDTG12864005 | 128x64 LCD Display Module 128*64 Monochrome FSTN LCD with SPI/Parallel Interface High Contrast White on Grey

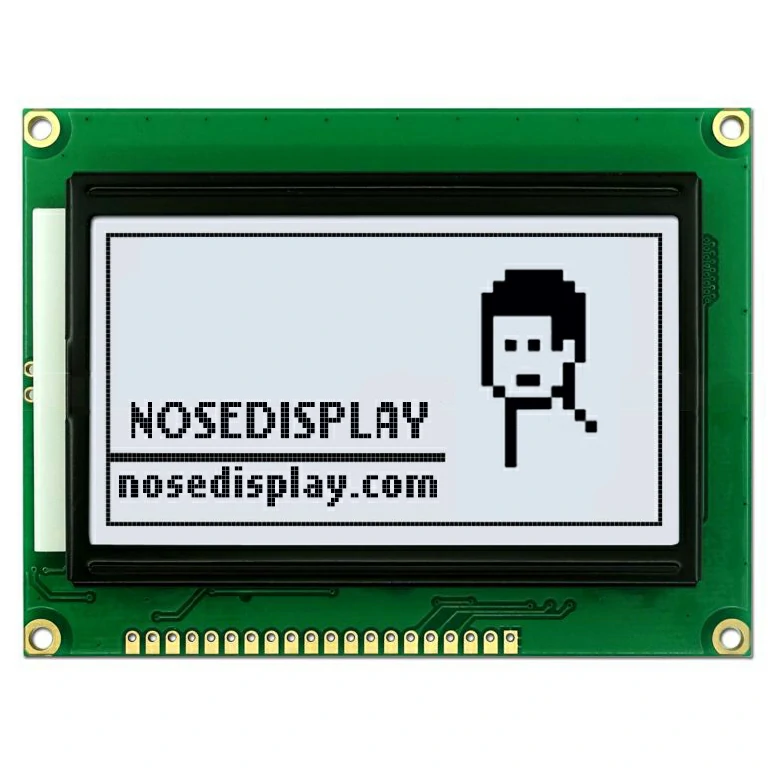

The 128×64 monochrome LCD display is a versatile module designed for embedded, industrial, and consumer applications that require high contrast and stable performance. With a resolution of 128 * 64 pixels, this lcd12864 module delivers clear text, icons, and simple graphics, making it ideal for meters, handheld devices, and control panels.
Built with FSTN-LCD Grey Positive technology and a transflective display mode, the lcd 128×64 ensures excellent readability in both bright and dim lighting environments. Powered by the ST7920 controller IC, it supports multiple interfaces, including 3-wire SPI, 6800 4-bit parallel, and 6800 8-bit parallel, offering developers flexible integration options.
The module features an active area of 71.8 × 40.0 mm within a compact 93.0 × 70.0 × 12.5 mm outline, operates at 3.3V/5V, and includes a white LED backlight for enhanced visibility. Fully compatible with Arduino, Raspberry Pi, and similar development boards, this 128×64 monochrome lcd display is a reliable choice for DIY makers and professional engineers alike.
General Specifications
| Part No.: | NDTG12864005 |
| Display Format: | 128 x 64 pixels |
| Display Type: | FSTN-LCD Grey, Positive |
| Display Mode: | Transflective |
| Controller IC: | ST7920 |
| Viewing Angle: | 6:00 |
| Outline Dimension: | 93.00(W)x70.0(H)x12.5(T)mm |
| Active Area: | 71.80×40.00mm |
| Supply Voltage: | 3.3V, 5V |
| Backlight: | White |
| Interface: | 3-wire SPI, 6800 4-bit Parallel , 6800 8-bit Parallel |
| Connection Type: | 20 pin |
| Compatibility: | Arduino, Rasberry Pi and similar development boards |
| Operating Temperature: | -20°C ~ 70°C |
| Storage Temperature: | -30°C ~ 80°C |

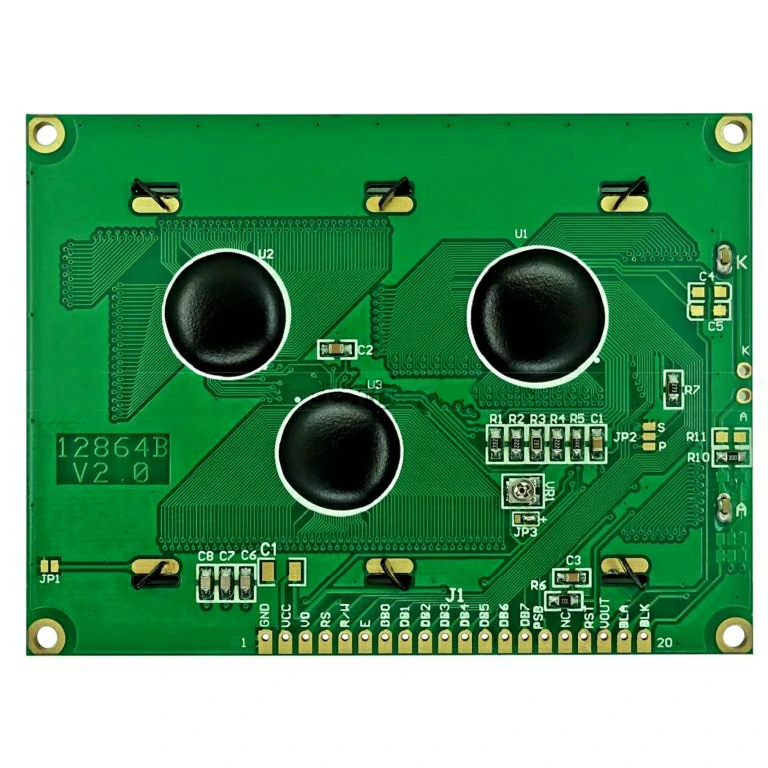

Pin Defenition
| Pin No. | Symbol | Function Description |
|---|---|---|
| 1 | VSS | Ground |
| 2 | VCC | Power Supply for Logic |
| 3 | VO | Operating Voltage for LCD |
| 4 | RS | H: data L: Instruction code |
| 5 | R/W | H: read L: write |
| 6 | E | Enable Signal |
| 7 | DB0 | Data Bus Line |
| 8 | DB1 | |
| 9 | DB2 | |
| 10 | DB3 | |
| 11 | DB4 | |
| 12 | DB5 | |
| 13 | DB6 | |
| 14 | DB7 | |
| 15 | PSB | H: Parallel Interface Mode L: Serial Interface Mode |
| 16 | NC | No Connection |
| 17 | /RST | Reset Signal, Active "L" |
| 18 | Vout | Negative Voltage Output |
| 19 | LEDA | Backlight Anode (+5V) |
| 20 | LEDK | Backlight Cathode (0V) |

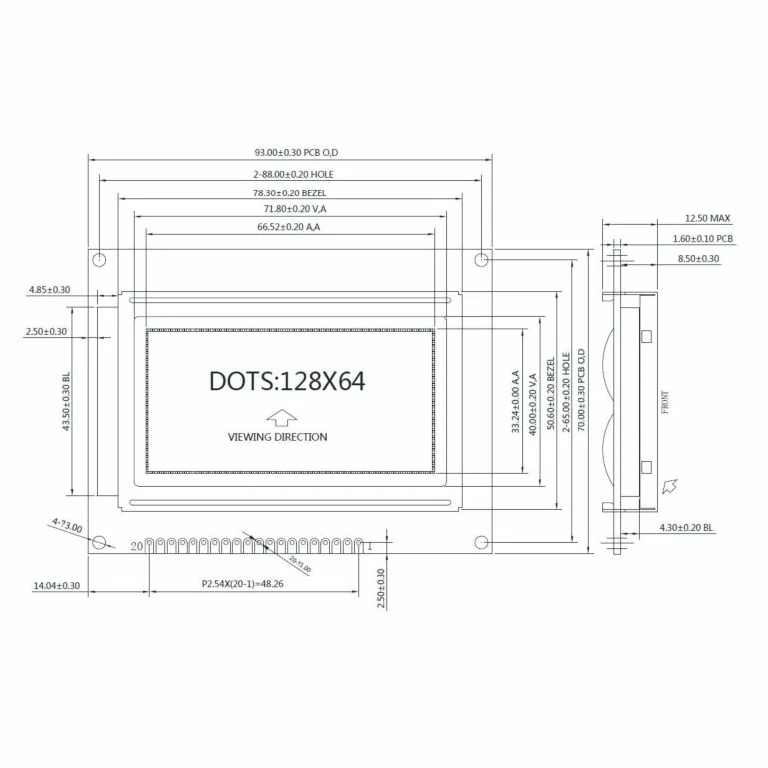

Display Drawing
Custom Graphic Display
We offer full customization ofGraphic display modules, including resolution, brightness, interface, and touch options. Our service covers PCB design, connector modification, and cover glass solutions, ensuring a perfect fit and reliable performance for your specific application.
Cable Customization
Adjust cable length, position, and pinout to ensure a perfect fit for your 128×64 LCD display. Get a custom solution for seamless connections, optimized for SPI or parallel interface integration.
Connector Custom
Customize connectors to meet your display’s needs. Whether for SPI or parallel connections, our engineers can provide the precise soldering for pin headers or boxed headers, ensuring compatibility with your 128×64 LCD.
Interface Custom
Choose from flexible interface options like SPI or 6800 parallel for your 128×64 LCD module. We’ll help you select the ideal connection type for your application, making integration easier for developers.
Tailored PCB Design
Modify your PCB’s size, shape, or pinout to integrate seamlessly with the 128×64 LCD. Tailor your design to ensure a perfect fit within your embedded or industrial project.
