Product Overview

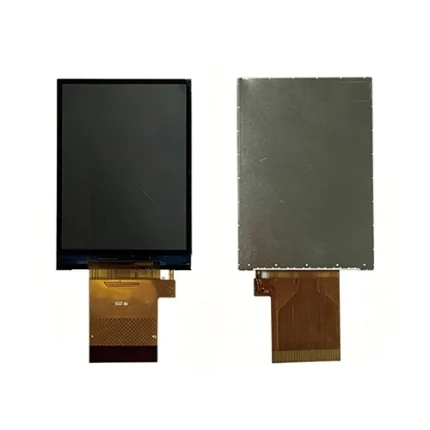

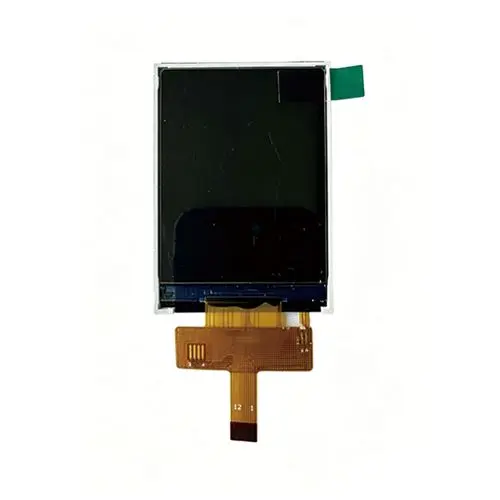

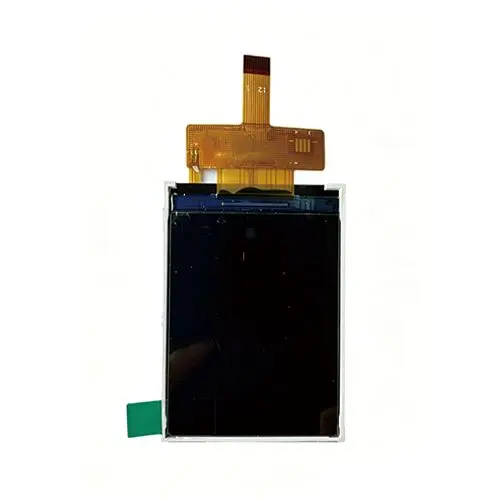

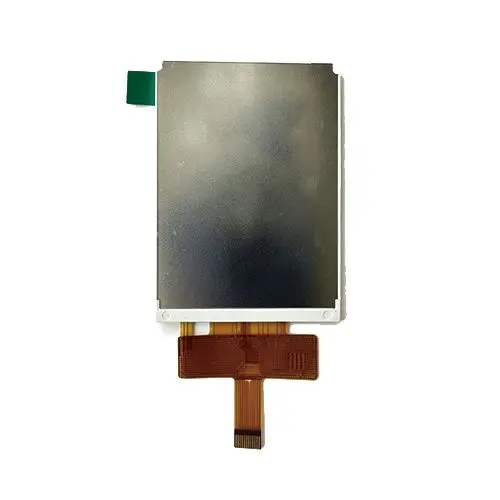

NoseDisplay ND024TFN240320-B01 is a compact transflective TFT LCD module for embedded portrait interfaces in industrial and portable equipment. It can be evaluated for outdoor monitoring terminals, handheld diagnostic tools, sensor controllers and compact HMI panels where menus and operating status must be reviewed under changing ambient light, with visibility assessed for the intended backlight conditions. Engineers can review SPI host integration, FPC connections, enclosure fit and optional touch requirements, using model-specific documentation and samples to assess the selected design before confirming the final module configuration.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND024TFN240320-B01 |
| Display Size | 2.4 Inch |
| Resolution | 240×320 pixels |
| Display Type | TFT LCD |
| Display Mode | Transflective |
| Touchscreen | No (Optional with Yes) |
| Outline Dimensions | 42.72 × 60.16 × 2.55 mm |
| Active Area | 36.72 × 48.96 mm |
| Parameter | Specification |
| Supply Voltage | 2.8v |
| Luminance | 160cd/m² |
| Display Interface | SPI |
| Connection Type | 40 pin connector |
| IC | ST7789V |
| Weight | — |
| Operating Temperature | -30°C ~ 80°C |
| Storage Temperature | -30°C ~ 80°C |
Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | GND | Ground |
| 02 | ID/GND | -- |
| 03 | GND | Ground |
| 04 | DB15 | Data Bus |
| 05 | DB14 | Data Bus |
| 06 | DB13 | Data Bus |
| 07 | DB12 | Data Bus |
| 08 | DB11 | Data Bus |
| 09 | DB10 | Data Bus |
| 10 | DB9 | Data Bus |
| 11 | DB8 | Data Bus |
| 12 | DB7 | Data Bus |
| 13 | DB6 | Data Bus |
| 14 | DB5 | Data Bus |
| 15 | DB4 | Data Bus |
| 16 | DB3 | Data Bus |
| 17 | DB2 | Data Bus |
| 18 | DB1 | Data Bus |
| 19 | DB0 | Data Bus |
| 20 | GND | Ground |
| 21 | GND | Ground |
| 22 | VCC | POWER SUPPLY |
| 23 | GND | Ground |
| 24 | LEDA | Backlight Anode |
| 25 | LEDA | Backlight Anode |
| 26 | LEDK1 | Backlight Cathode |
| 27 | LEDK2 | Backlight Cathode |
| 28 | LEDK3 | Backlight Cathode |
| 29 | LEDK4 | Backlight Cathode |
| 30 | IOVCC | I/O POWER SUPPLY |
| 31 | GND | Ground |
| 32 | RS | Data/Command Select |
| 33 | CS | Chip Select |
| 34 | WR | Write Enable |
| 35 | RD | Read Enable |
| 36 | RESET | Reset |
| 37 | TE | Tearing Effect Output |
| 38 | GND | Ground |
| 39 | GND | Ground |
| 40 | GND | Ground |
