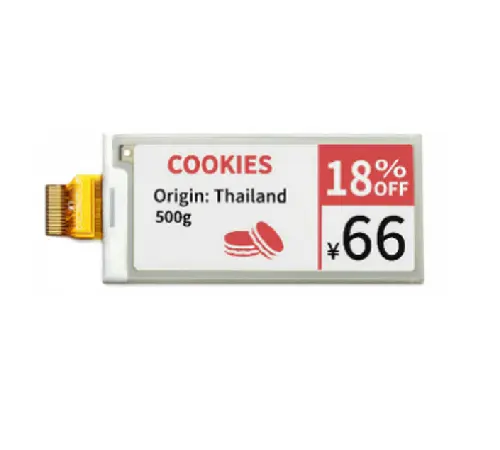

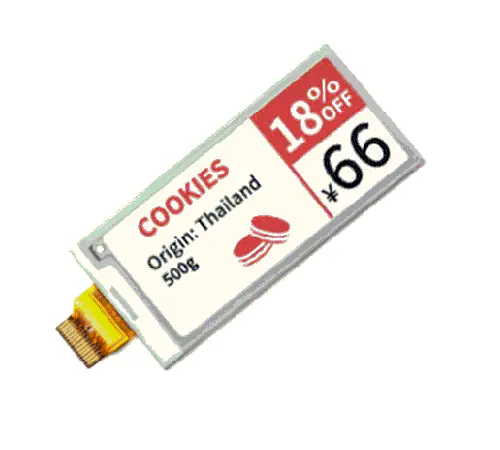

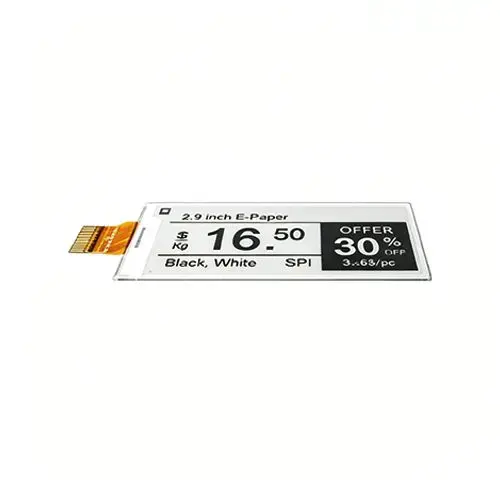

2.9 Inch ePaper Display Overview
ND029EPN128296-A01 is a 2.9-inch black, white and red ePaper display with a 128 × 296 E Ink panel, SSD1608 controller and SPI interface. The additional red channel can distinguish warning symbols or pricing information from monochrome text. This bare module requires a suitable driver circuit; verify the 24-pin connection, supply levels, initialization, power sequencing and panel-specific waveforms.
The rectangular image area suits electronic shelf labels, inventory tags, equipment identification and battery-powered status indicators with periodic updates. Plan image conversion and refresh scheduling around the intended text and color layout. NoseDisplay can evaluate ESP32 or STM32 host connections, suitable Arduino or Raspberry Pi driver arrangements, FPC routing, cover lenses and enclosure fitting for OEM prototypes.
ND029EPN128296-A01 is a 2.9-inch 128 × 296 E Ink ePaper module with black, white and red output, an SSD1608 controller and SPI interface. Red highlights suit shelf labels, inventory tags and equipment warnings with periodic updates. Integration requires a suitable driver circuit, verified 24-pin connections, power sequencing and panel-specific waveforms. NoseDisplay can assess host connections, image preparation and enclosure requirements for OEM prototypes.
Technical Specifications

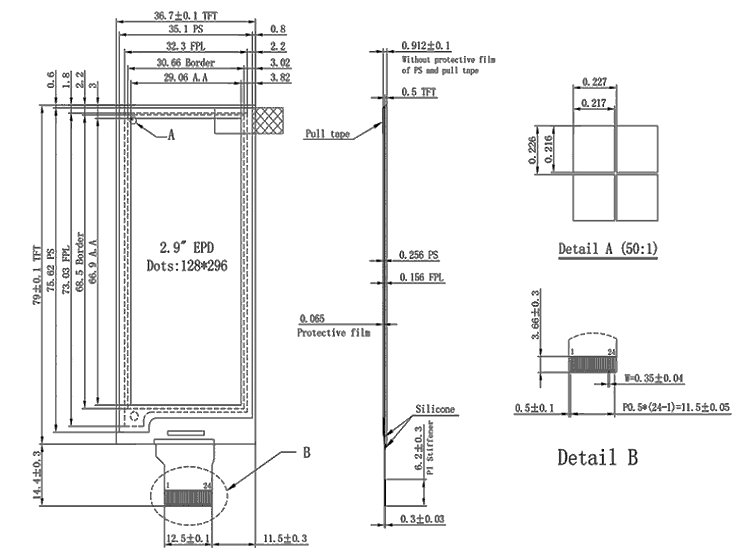

Mechanical Drawing & Interface Definition
Model: ND029EPN128296-A01
Download Center · Contact an Engineer
PIN Description
| Pin No. | Symbol | Type | Description |
|---|---|---|---|
| 01 | NC | - | No connection. Leave open. |
| 02 | GDR | O | Gate drive control for an N-channel MOSFET. |
| 03 | RESE | P | Current-sense input for the control loop. |
| 04 | VGL | P | Negative gate driving voltage. |
| 05 | VGH | P | Positive gate driving voltage. |
| 06 | TSCL | I/O | I²C clock to the digital temperature sensor. |
| 07 | TSDA | I/O | I²C data to the digital temperature sensor. |
| 08 | BS1 | I | Bus interface selection pin. |
| 09 | BUSY | O | Busy status output; high indicates busy. |
| 10 | RES# | I | Reset input, active low. |
| 11 | D/C# | I | Data/command control: high for data, low for command. |
| 12 | CS# | I | Chip-select input, active low. |
| 13 | SCL | I | SPI serial clock. |
| 14 | SDA | I/O | SPI serial data. |
| 15 | VDDIO | P | Interface logic power supply. |
| 16 | VCI | P | Power supply for the internal IC. |
| 17 | VSS | P | Ground. |
| 18 | VDD | P | Core logic power supply. |
| 19 | VPP | P | OTP programming power supply. |
| 20 | VSH | P | Positive source driving voltage. |
| 21 | PREVGH | P | Power supply pin for VGH and VSH. |
| 22 | VSL | P | Negative source driving voltage. |
| 23 | PREVGL | P | Power supply pin for VCOM, VGL and VSL. |
| 24 | VCOM | P | VCOM driving voltage. |
Sample Ordering & Delivery
ND029EPN128296-A01 2.9-inch engineering samples support prototypes and driver evaluation. Shipping is charged separately; duties and taxes are excluded. Estimated delivery includes preparation. Confirm final terms before payment.
Sample MOQ
3 pcs per modelMinimum 3 pcs per model.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
2.9 Inch ePaper Display Applications
ND029EPN128296-A01 suits shelf-edge price labels, inventory identification tags and equipment status panels. Black and white text can carry routine information while red marks highlight selected warnings or prices in battery-powered systems with periodic updates.
Electronic Shelf Labels
Smart Home Status
IoT Status Displays
Equipment Labels
Matching Driver Board
Driver evaluation for ND029EPN128296-A01 must match the SSD1608 controller, SPI interface and 24-pin connection. Review supply rails, ePaper refresh current, logic levels, power sequencing, initialization and color waveform support. Image conversion must preserve the black, white and red channels. NoseDisplay can evaluate suitable ESP32, STM32, Arduino or Raspberry Pi host arrangements; board availability, electrical compatibility, firmware adaptation and package contents require confirmation for the selected configuration.
Customization Options
For ND029EPN128296-A01, OEM assessment can cover 24-pin FPC routing, protective cover lenses, enclosure clearances and SSD1608 driver-board adaptation for compact three-color labels. Optional touch integration and prototype firmware requirements are evaluated for each project.
ePaper & FPC Options
Alternative display sizes, colors and FPC configurations can be evaluated for your project.
Touch Integration
Touch panel options can be evaluated according to enclosure and operating requirements.
Cover Lens Options
Custom cover glass or PMMA lenses with optional printing, shape and surface treatments.
Driver Board Support
Driver board and interface solutions can be evaluated for your host platform.
Quality & Compliance Support
We provide quality and compliance documentation for qualified OEM projects
based on the selected module, BOM and manufacturing configuration.
RoHS
EU RoHS compliant materials and process control
REACH
Support REACH regulation compliance
Reliability Testing
Environmental & mechanical reliability testing reports
ESD Control
ESD protection design and testing capability
Quality System
Manufactured under a certified quality management system
Documentation availability and scope are confirmed according to the selected module, BOM, manufacturing source and project requirements.
