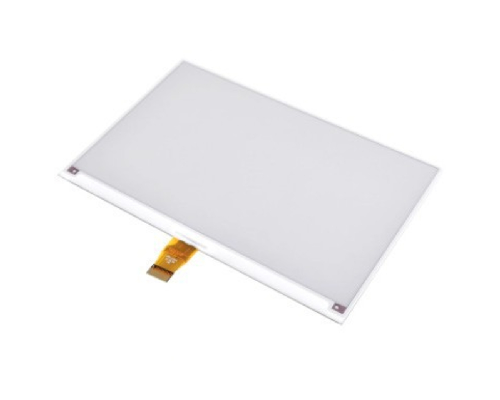

7.5 Inch ePaper Display Overview
ND075EPN800480-A01 is a 7.5-inch black-and-white ePaper display with an 800 × 480 reflective E Ink panel, UC8179 controller and SPI interface. Its landscape format provides room for schedules, equipment readings and structured text. Before connecting the 24-pin module, review interface levels, power sequencing, initialization and the waveform requirements associated with the selected panel and operating conditions.
This low-power ePaper display suits warehouse inventory boards, room information signs and energy monitoring equipment with periodic updates. STM32, ESP32 or Raspberry Pi host solutions can be evaluated with suitable driving hardware and firmware. NoseDisplay can review FPC routing, cover lens dimensions, optional touch integration and enclosure clearances for OEM prototypes, while complete system power consumption remains dependent on the implementation.
ND075EPN800480-A01 is a 7.5-inch 800 × 480 black-and-white E Ink ePaper display with SPI and a UC8179 controller. Its landscape panel suits room schedules, inventory boards and equipment status displays with periodic updates. Integration requires suitable driving hardware, 24-pin wiring, supply checks, initialization and waveform support. NoseDisplay can evaluate host firmware, cover lens dimensions and OEM enclosure requirements for prototype development.
Technical Specifications

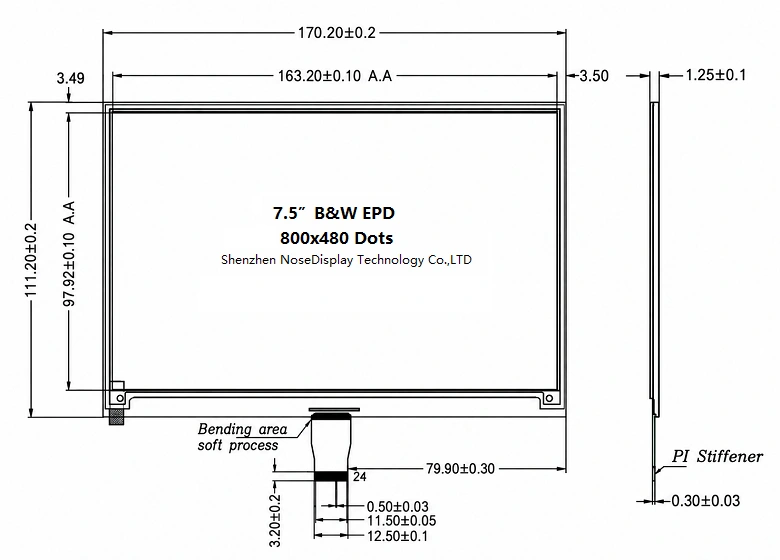

Mechanical Drawing & Interface Definition
Model: ND075EPN800480-A01
Download Center · Contact an Engineer

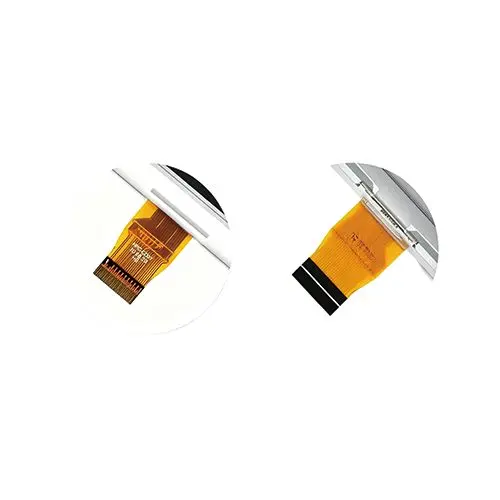

PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | NC | No connection. |
| 02 | GDR | N-MOS gate control. |
| 03 | RESE | Current sense input for the control loop. |
| 04 | NC | No connection. |
| 05 | VSHR | Positive source driving voltage (red channel). |
| 06 | TSCL | I²C temperature-sensor clock. |
| 07 | TSDA | I²C temperature-sensor data. |
| 08 | BS1 | SPI bus selection. |
| 09 | BUSY | Busy status output. |
| 10 | RES | Hardware reset input. |
| 11 | D/C | Data/command selection. |
| 12 | CS | SPI chip select. |
| 13 | SCL | SPI serial clock. |
| 14 | SDA | SPI serial data. |
| 15 | VDDIO | Interface logic supply. |
| 16 | VCI | Supply voltage input. |
| 17 | VSS | Ground. |
| 18 | VDD | Digital power. |
| 19 | VPP | OTP programming supply. |
| 20 | VSH1 | Positive source driving voltage. |
| 21 | VGH | Positive gate driving voltage. |
| 22 | VSL | Negative source driving voltage. |
| 23 | VGL | Negative gate driving voltage. |
| 24 | VCOM | Common electrode driving voltage. |
