Product Overview

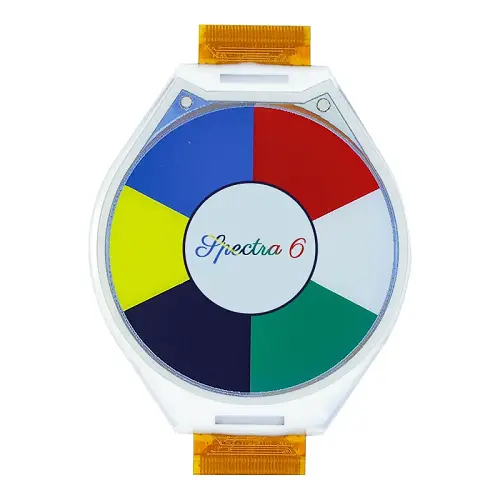

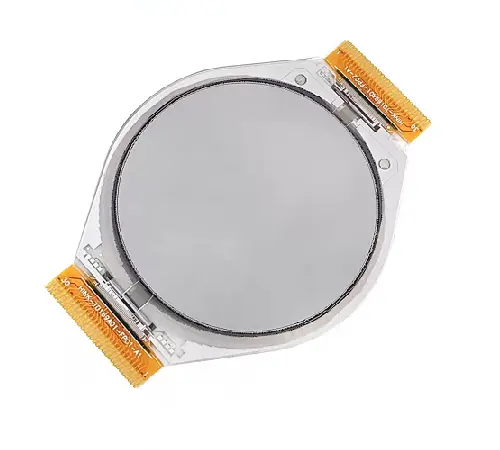

NoseDisplay ND017EPN400400-A01 is a six-color round ePaper display module for smart home information panels, electronic labels, compact status indicators and battery-powered IoT devices. Its circular Spectra 6 E Ink screen provides a low-power electronic paper option for embedded information displays with static or periodically updated content. Its display controller uses SPI for host-controlled display updates, while driver board selection, initialization and waveform requirements should be reviewed for each project. The reflective screen retains information between updates, helping OEM teams build readable status displays for compact enclosures and energy-conscious applications. NoseDisplay can review FPC connections, enclosure requirements and project-specific integration options during evaluation.
NoseDisplay ND017EPN400400-A01 is a six-color round ePaper display module for smart home information panels, electronic labels, compact status indicators and battery-powered IoT devices. Its circular Spectra 6 E Ink screen retains information between updates for low-power embedded applications. Its display controller uses SPI for host-controlled display updates; driver board selection, initialization and waveform requirements should be reviewed against the requirements of each OEM project.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND017EPN400400-A01 |
| Display Size | 1.7 inch |
| Resolution | 400 × 400 pixels |
| Display Type | ePaper (E Ink Spectra 6) |
| Display Color | Six Color |
| Shape | Round |
| Display Mode | Reflective |
| Pixel Density | 236 DPI |
| Parameter | Specification |
| Outline Dimensions | 55.8 × 49.6 × 0.95 mm |
| Active Area | 43.0 × 43.0 mm |
| Display Interface | SPI |
| Connection Type | 30-pin FPC |
| IC | -- |
| Weight | 10 ± 2 g |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | −20°C to +60°C |

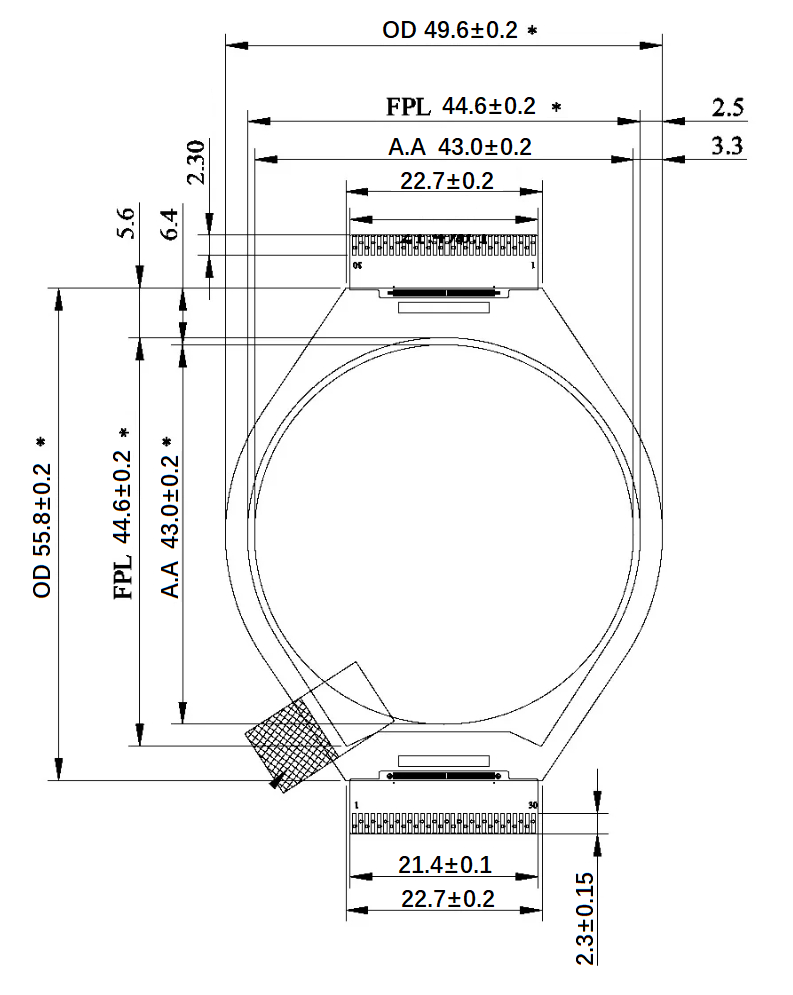

Mechanical Drawing & Interface Definition
Please refer to the model-specific ePaper display specification for mechanical drawings, dimensions, FPC connections and pin definitions. Visit our Download Center to view available datasheets, or contact an engineer to request the specification for your selected model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | VREFR | VREFR connection |
| 02 | GDR | GDR connection |
| 03 | RESE | RESE connection |
| 04 | VDDL | VDDL connection |
| 05 | VSPL1 | Connected to VSH2 |
| 06 | VREFL | VREFL connection |
| 07 | AVDDN | Not connected (NC) |
| 08 | BS0 | Connected to BS |
| 09 | BUSY | Busy status output |
| 10 | RST_N | Reset input, active low (RES#) |
| 11 | DC | Data/command control |
| 12 | CSB | Chip select, active low (CS#) |
| 13 | SCL | Serial clock |
| 14 | SDA | Serial data |
| 15 | VDD | Power supply |
| 16 | VSPL2 | Connected to VSH3 |
| 17 | GND | Ground |
| 18 | VSNL1 | Connected to VSL2 |
| 19 | VSNL2 | Connected to VSL3 |
| 20 | VSPH | Connected to VSH1 |
| 21 | VGH | VGH connection |
| 22 | VSNH | Connected to VSL1 |
| 23 | VGL | VGL connection |
| 24 | VCOM | VCOM connection |
| 25 | C24M | Not connected (NC) |
| 26 | C24P | Not connected (NC) |
| 27 | C23M | Not connected (NC) |
| 28 | C23P | Not connected (NC) |
| 29 | C22M | Not connected (NC) |
| 30 | C22P | Not connected (NC) |
