Product Overview
NoseDisplay ND035TSN320240-A01 is a landscape IPS TFT LCD module for embedded control panels, instrument interfaces and smart home equipment. Its RGB interface can be evaluated for graphical menus, operating information and status feedback in custom OEM products. This compact color LCD display offers an option for industrial HMI panels and connected devices where host display timing, connector layout and mechanical fit require coordinated review. Engineers can assess the model-specific documentation when planning enclosure integration, supporting electronics and optional touch requirements.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND035TSN320240-A01 |
| Display Size | 3.5 inch |
| Resolution | 320×240 pixels |
| Display Type | IPS TFT LCD |
| Display Mode | Transmissive |
| Touchscreen | No (Optional with Yes) |
| Outline Dimensions | 76.84 × 63.84 × 3.17 mm |
| Active Area | 70.08 × 52.56 mm |
| Parameter | Specification |
| Supply Voltage | 3.3V |
| Luminance | 320 cd/m² |
| Display Interface | RGB 24-bit |
| Connection Type | 54 pin connector |
| IC | ST7272A |
| Weight | -- |
| Operating Temperature | −20°C to +70°C |
| Storage Temperature | −30°C to +80°C |

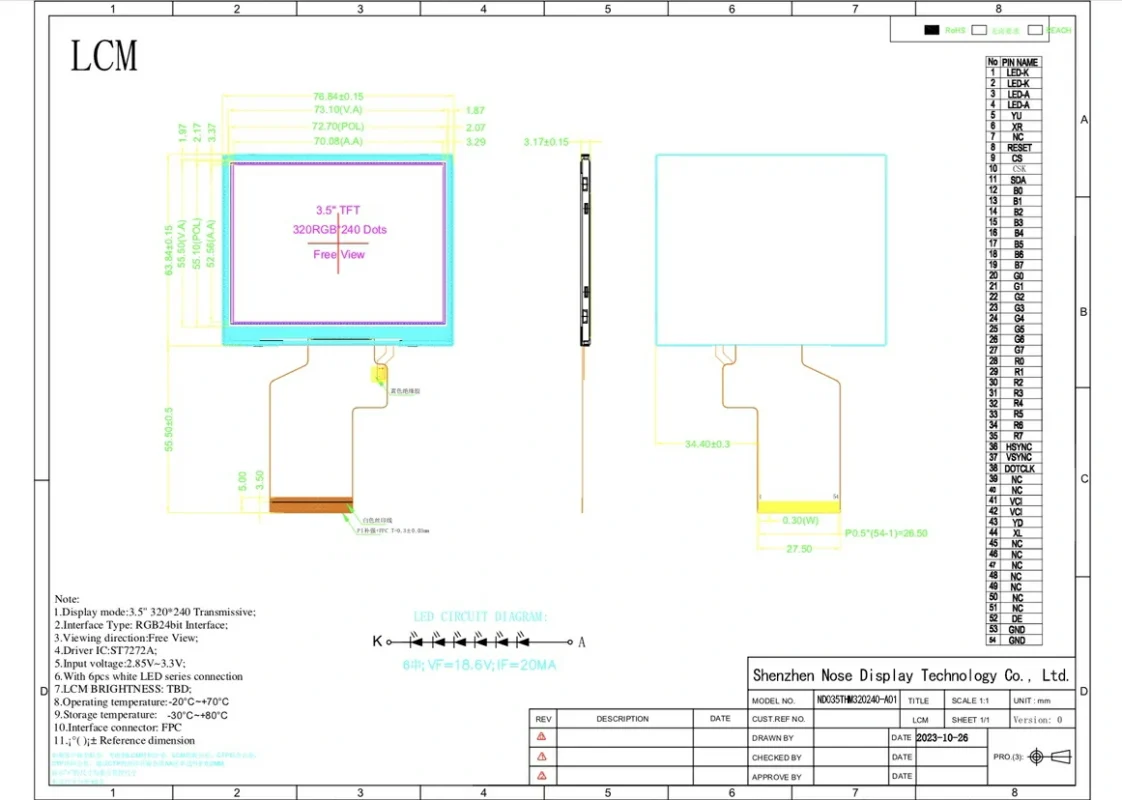

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | LEDK | Backlight Cathode |
| 02 | LEDK | Backlight Cathode |
| 03 | LEDA | Backlight Anode |
| 04 | LEDA | Backlight Anode |
| 05 | YU | Touch Y+ |
| 06 | XR | Touch X+ |
| 07 | NC | No Connection |
| 08 | RESET | Reset |
| 09 | CS | Chip Select |
| 10 | CSX | Chip Select |
| 11 | SDA | SPI Data |
| 12 | B0 | Data Bus |
| 13 | B1 | Data Bus |
| 14 | B2 | Data Bus |
| 15 | B3 | Data Bus |
| 16 | B4 | Data Bus |
| 17 | B5 | Data Bus |
| 18 | B6 | Data Bus |
| 19 | B7 | Data Bus |
| 20 | G0 | Data Bus |
| 21 | G1 | Data Bus |
| 22 | G2 | Data Bus |
| 23 | G3 | Data Bus |
| 24 | G4 | Data Bus |
| 25 | G5 | Data Bus |
| 26 | G6 | Data Bus |
| 27 | G7 | Data Bus |
| 28 | R0 | Data Bus |
| 29 | R1 | Data Bus |
| 30 | R2 | Data Bus |
| 31 | R3 | Data Bus |
| 32 | R4 | Data Bus |
| 33 | R5 | Data Bus |
| 34 | R6 | Data Bus |
| 35 | R7 | Data Bus |
| 36 | HSYNC | Horizontal Sync |
| 37 | VSYNC | Vertical Sync |
| 38 | DOTCLK | Pixel Clock |
| 39 | NC | No Connection |
| 40 | NC | No Connection |
| 41 | VCI | POWER SUPPLY |
| 42 | VCI | POWER SUPPLY |
| 43 | YD | Touch Y- |
| 44 | XL | Touch X- |
| 45 | NC | No Connection |
| 46 | NC | No Connection |
| 47 | NC | No Connection |
| 48 | NC | No Connection |
| 49 | NC | No Connection |
| 50 | NC | No Connection |
| 51 | NC | No Connection |
| 52 | DE | Data Enable |
| 53 | GND | Ground |
| 54 | GND | Ground |
Sample Ordering & Delivery
Samples are available for engineering evaluation. Shipping excludes import duties and taxes. Estimated delivery times are in calendar days, including 4 days of preparation. Final terms are confirmed before payment.
Sample MOQ
3 pcs per modelMinimum 3 pcs per model.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
FPC & Connector Integration
FPC length, pinout, routing and connector position can be evaluated against your host PCB and enclosure requirements.
Panel & Interface Selection
Evaluate TFT panel options for resolution, brightness, viewing angle and interface, subject to the selected display IC.
PCB & Driver Board Design
Adapter PCBs and driver boards can be reviewed for host interfaces, power design and mechanical integration.
Touchscreen & Cover Lens
Capacitive or resistive touch, cover glass and PMMA lenses can be evaluated for your enclosure and application.
Quality & Compliance Support
We provide quality and compliance documentation for qualified OEM projects
based on the selected module, BOM and manufacturing configuration.
RoHS
EU RoHS compliant materials and process control
REACH
Support REACH regulation compliance
Reliability Testing
Environmental & mechanical reliability testing reports
ESD Control
ESD protection design and testing capability
Quality System
Manufactured under a certified quality management system
Documentation availability and scope are confirmed according to the selected module, BOM, manufacturing source and project requirements.
Typical Applications
Industrial Control
Smart Home Panels
Portable Instruments
Embedded IoT Devices
TFT LCD displays are widely used in industrial control panels, handheld instruments, smart home devices, embedded systems, IoT equipment, medical devices and other human-machine interface applications requiring clear, responsive visual output.
