3.98 Inch ePaper Display Overview
ND039EPN552768-A01 is a 3.98-inch black-and-white ePaper display with a 552 × 768 E Ink panel, SPI interface and 24-pin connection. Its reflective image area supports detailed text, icons and monochrome graphics without a backlight. The existing specification identifies the controller as 8179; confirm the exact driver configuration, supply levels, power sequencing, initialization and panel-specific waveforms before designing the host circuit.
Handheld information terminals, portable instruments, equipment identity panels and battery-powered IoT dashboards can use the module for periodic updates. Check mounting orientation, rounded cover-lens outlines and enclosure clearances against the mechanical drawing. NoseDisplay can evaluate ESP32 or STM32 host connections and suitable Arduino or Raspberry Pi driver arrangements, with FPC routing and prototype firmware support assessed for each OEM configuration.
ND039EPN552768-A01 is a 3.98-inch black-and-white E Ink ePaper module with 552 × 768 pixels, SPI and a 24-pin connection. It suits handheld terminals, portable instruments and battery-powered IoT dashboards. The specification lists an 8179 controller; confirm the exact driver, power sequencing, initialization and panel-specific waveforms before integration. NoseDisplay can assess host connections, cover-lens outlines and enclosure requirements for OEM prototypes.
Technical Specifications

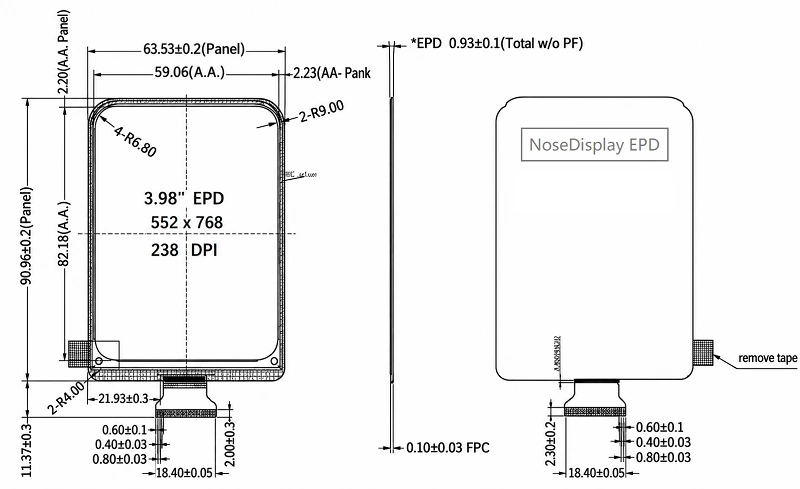

Mechanical Drawing & Interface Definition
Model: ND039EPN552768-A01
Download Center · Contact an Engineer
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | NC | No connection; do not connect to other NC pins. Keep open. |
| 02 | GDR | N-channel MOSFET gate drive control. |
| 03 | RESE | Current sense input for the control loop. |
| 04 | NC | No connection; do not connect to other NC pins. Keep open. |
| 05 | VDHR | Positive source driving voltage. |
| 06 | TSCL | I²C interface to digital temperature sensor data pin. |
| 07 | TSDA | I²C interface to digital temperature sensor clock pin. |
| 08 | BS | Bus selection pin. See Note 6-5. |
| 09 | BUSY_N | Busy state output pin. See Note 6-4. |
| 10 | RST_N | Reset signal input. See Note 6-3. |
| 11 | DC | Data/command control pin. See Note 6-2. |
| 12 | CSB | Chip select input connecting to the MCU. See Note 6-1. |
| 13 | SCL | Serial clock pin for the interface. |
| 14 | SDA | Serial data pin for the interface. |
| 15 | VDDIO | Power input pin for the interface. |
| 16 | VDD | Power supply pin for the chip. |
| 17 | GND | Ground (digital). |
| 18 | VDDD | Core logic power pin. |
| 19 | VPP | Power supply for OTP programming. |
| 20 | VSH | Positive source driving voltage. |
| 21 | VGH | Power supply pin for positive gate driving voltage and VSH. |
| 22 | VSL | Negative source driving voltage. |
| 23 | VGL | Power supply pin for negative gate driving voltage, VCOM and VSL. |
| 24 | VCOM | VCOM driving voltage. |
Sample Ordering & Delivery
ND039EPN552768-A01 3.98-inch engineering samples support prototypes and driver evaluation. Shipping is charged separately; duties and taxes are excluded. Estimated delivery includes preparation. Confirm final terms before payment.
Sample MOQ
3 pcs per modelMinimum 3 pcs per model.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
