10.3 Inch ePaper Display Overview
NoseDisplay ND103EPN18721404-A01 is a 10.3-inch black and white E Ink ePaper display with a 1872 × 1404 resolution. Its reflective screen supports document viewers, electronic reading devices and industrial information panels that show static or periodically updated content. The panel retains displayed information between updates, supporting readable interfaces for equipment designed around limited power budgets.
This module requires an external TCON; host connectivity depends on the selected controller board rather than a direct connection to the bare panel. During evaluation, review the 40-pin connection, supply sequencing, initialization and waveform requirements alongside the enclosure design. NoseDisplay can assess a matching controller, FPC integration and project-specific mechanical options before the display is incorporated into an OEM prototype.
NoseDisplay ND103EPN18721404-A01 is a 10.3-inch, 1872 × 1404 black and white E Ink ePaper module for document viewers, reading devices and industrial information panels. Its reflective screen retains information between updates. An external TCON is required, with host connectivity determined by the selected controller board. Review the 40-pin connection, power sequencing, initialization and waveform requirements with NoseDisplay before building an OEM prototype.
An external TCON is required. An optional matching TCON board using the IT8951 + ED103TC2 combination is available. It communicates via SPI and supports 16 levels of grayscale. The TCON board costs an additional US$28.
Technical Specifications

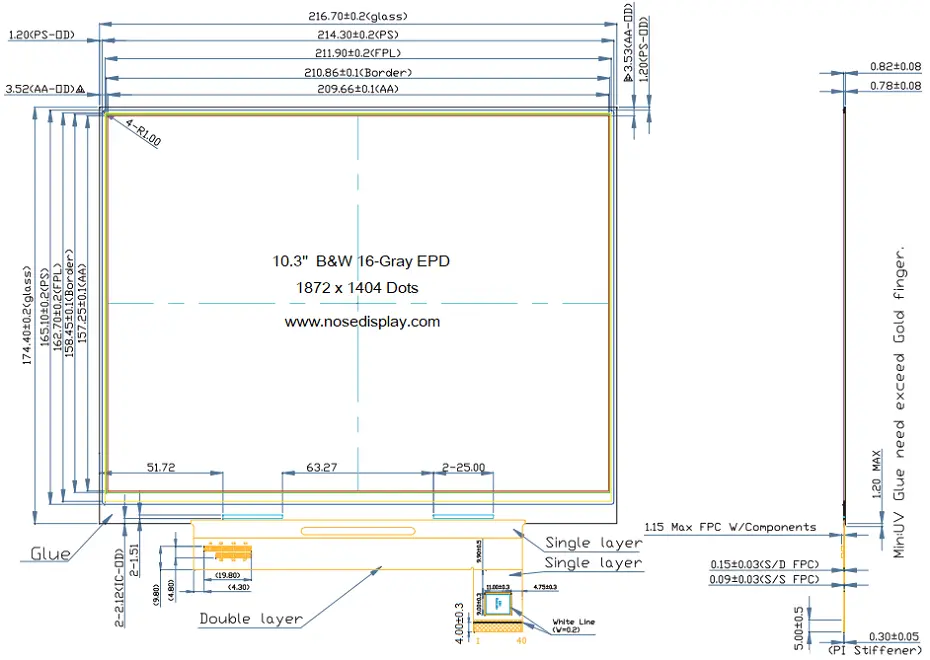

Mechanical Drawing & Interface Definition
Model: ND103EPN18721404-A01
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | VGL | Negative supply (gate driver) |
| 2 | NC | No connection |
| 3 | VGH | Positive supply (gate driver) |
| 4 | NC | No connection |
| 5 | VDD | Digital supply (drivers) |
| 6 | MODE | Output mode selection (gate driver) |
| 7 | CKV | Clock (gate driver) |
| 8 | SPV | Start pulse (gate driver) |
| 9 | VSS | Ground |
| 10 | VCOM | Common voltage |
| 11 | VDD | Digital supply (drivers) |
| 12 | VSS | Ground |
| 13 | XCL | Clock source (source driver) |
| 14–21 | D0–D7 | Data signals (source driver) |
| 22 | VSS | Ground |
| 23–29 | D8–D14 | Data signals (source driver) |
| 30–40 | — | Additional data signals and power connections |
Sample Ordering & Delivery
Evaluate 10.3-inch ND103EPN18721404-A01 engineering samples with suitable TCON hardware. Shipping is charged separately; import duties and taxes are excluded. Estimated delivery includes preparation. Confirm final terms before payment.
Sample MOQ
2 pcs per modelMinimum 2 pcs per model.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
10.3 Inch ePaper Display Applications
ND103EPN18721404-A01 supports document viewers, electronic reading devices and industrial information panels with static or periodically updated content. Evaluate controller requirements, refresh behavior and enclosure fit against the intended reading environment.
Smart Office Signage
Electronic Shelf Labels
IoT Status Displays
Equipment Labels

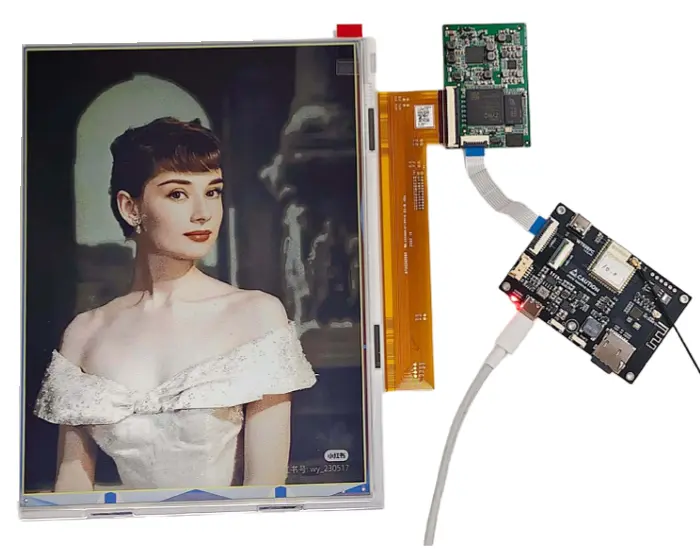

Matching Driver Board
ND103EPN18721404-A01 requires an external TCON to drive the panel. SPI, USB or MCU host connectivity depends on the selected controller board. Share your host platform and refresh requirements so NoseDisplay can review the 40-pin connection, supply sequencing, initialization and waveform configuration. Confirm board availability, firmware and package contents for the intended prototype before ordering.
Customization Options
For ND103EPN18721404-A01 OEM projects, NoseDisplay can review external TCON selection, the 40-pin connection, enclosure integration and cover lens options. Touch and controller configurations require evaluation against the selected hardware and application.
ePaper & FPC Options
Alternative display sizes, colors and FPC configurations can be evaluated for your project.
Touch Integration
Touch panel options can be evaluated according to enclosure and operating requirements.
Cover Lens Options
Custom cover glass or PMMA lenses with optional printing, shape and surface treatments.
Driver Board Support
Driver board and interface solutions can be evaluated for your host platform.
Quality & Compliance Support
We provide quality and compliance documentation for qualified OEM projects
based on the selected module, BOM and manufacturing configuration.
RoHS
EU RoHS compliant materials and process control
REACH
Support REACH regulation compliance
Reliability Testing
Environmental & mechanical reliability testing reports
ESD Control
ESD protection design and testing capability
Quality System
Manufactured under a certified quality management system
Documentation availability and scope are confirmed according to the selected module, BOM, manufacturing source and project requirements.
