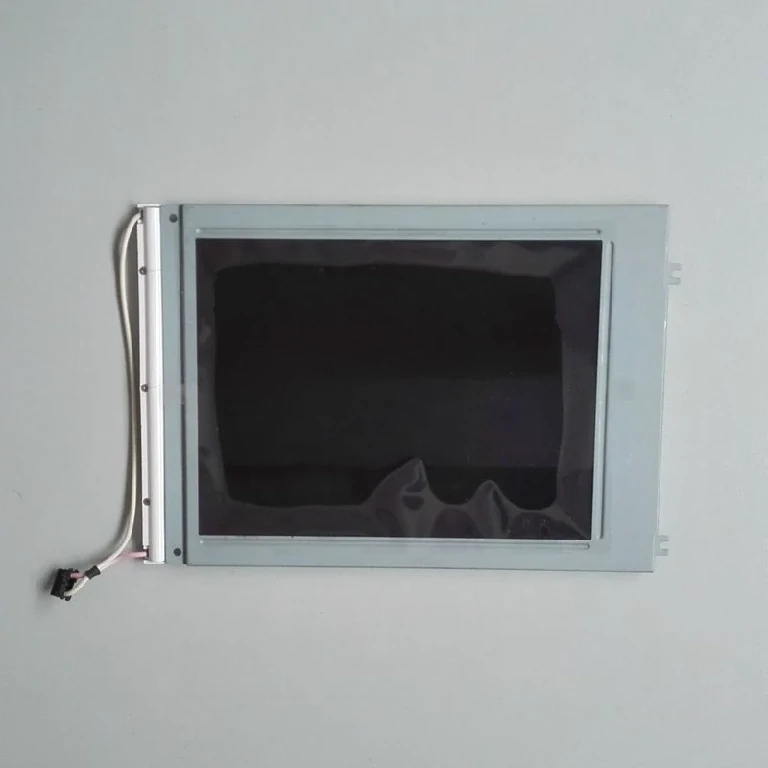

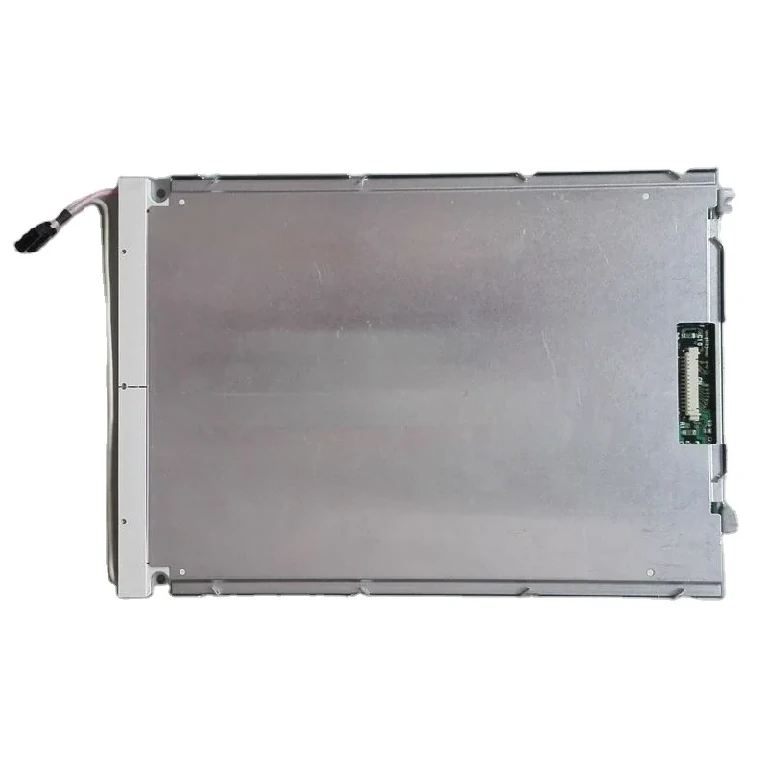

NDTG64048002 | 7.2 Inch 640x480 Screen LCD Module 640*480 Resolution Graphic Display VGA Compatible
The NDTG640480002 Graphic LCD Module offers a reliable 640×480 resolution for industrial and embedded applications. Featuring FSTN negative, transmissive technology, this module ensures sharp contrast and excellent readability under various conditions. With a large active area of 191.97 × 143.97 mm, it delivers clear and consistent visuals with a precise 640×480 screen resolution.
Powered by the S1D13700 controller (or equivalent), the display supports a 4-bit parallel interface and connects through a 15-pin connector, making it highly compatible with industrial MCUs, embedded systems, and dedicated LCD driver boards. The CCFL backlight (requires inverter) ensures uniform illumination across the entire screen.
Designed for long-term stability, this 640×480 vga display operates on 5V supply voltage and performs reliably across a wide temperature range (-20°C to 70°C). With its robust design, the module can function as a dependable 640×480 vga monitor or be used in systems requiring a standard 640×480 pixels VGA resolution.
This 640×480 monitor is widely applied in industrial control panels, testing equipment, embedded terminals, and legacy VGA systems, making it an ideal solution for projects demanding durable performance and consistent image quality.
General Specifications
| Part No.: | NDTG640480002 |
| Display Format: | 640 x 480 pixels |
| Display Type: | FSTN-, Negative |
| Display Mode: | Transmissive |
| Controller IC: | S1D13700 or Equivalent |
| Viewing Angle: | 6:00 |
| Outline Dimension: | 260 x 174 x 7mm |
| Active Area: | 191.97 x 143.97mm |
| Supply Voltage: | 5V |
| Backlight: | CCFL (requires inverter) |
| Interface: | 4-bit parallel |
| Connection Type: | 15 pin connector |
| Compatibility: | Most industrial MCUs, embedded systems, and dedicated LCD driver boards supporting 4-bit parallel interface |
| Operating Temperature: | -20°C ~ 70°C |
| Storage Temperature: | -30°C ~ 80°C |
Custom 7.2'' Graphic Display
We offer full customization of 7.2'' Graphic display modules, including resolution, brightness, interface, and touch options. Our service covers PCB design, connector modification, and cover glass solutions, ensuring a perfect fit and reliable performance for your specific application.
Cable Customization
Adjust the length, position, and pinout of your cables, or add extra connectors to create a custom solution that ensures reliable and secure connections for your 640×480 display module, optimizing integration with your system.
Connector Custom
Modify the 15-pin connector or other connectors for compatibility with your system. Our engineers can customize pin headers, right-angle headers, and more for industrial MCUs, embedded systems, and LCD driver boards.
Interface Custom
Select from a variety of interface options, including the 4-bit parallel interface, or consult our experts to ensure seamless integration with your system, whether it’s for industrial control, embedded systems, or custom applications.
Tailored PCB Design
Choose from a range of PCB modifications, including adjustments to shape, size, pinout, and layout, to ensure your 7.2 inch display module fits perfectly within your system’s design and requirements.
