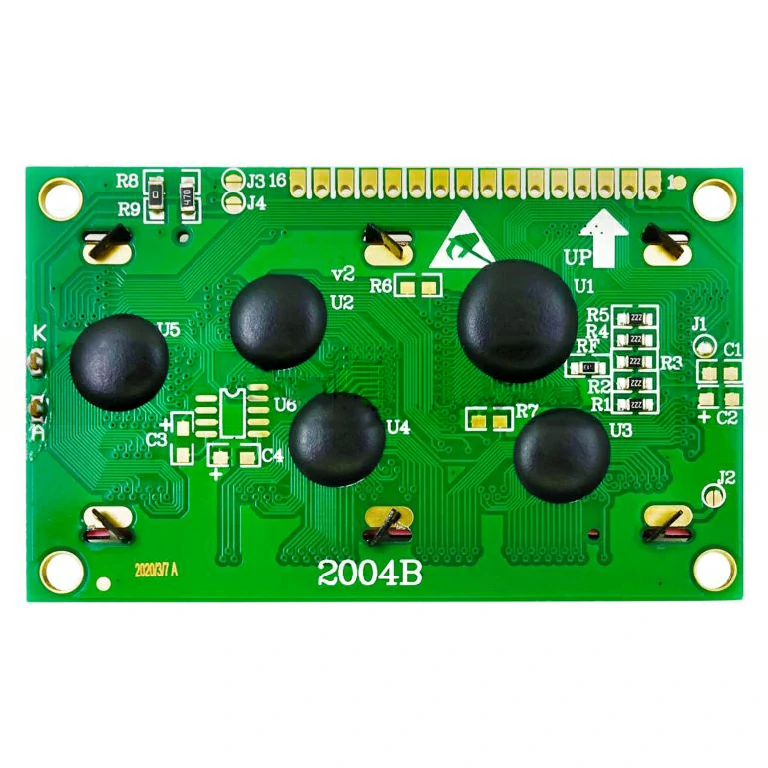

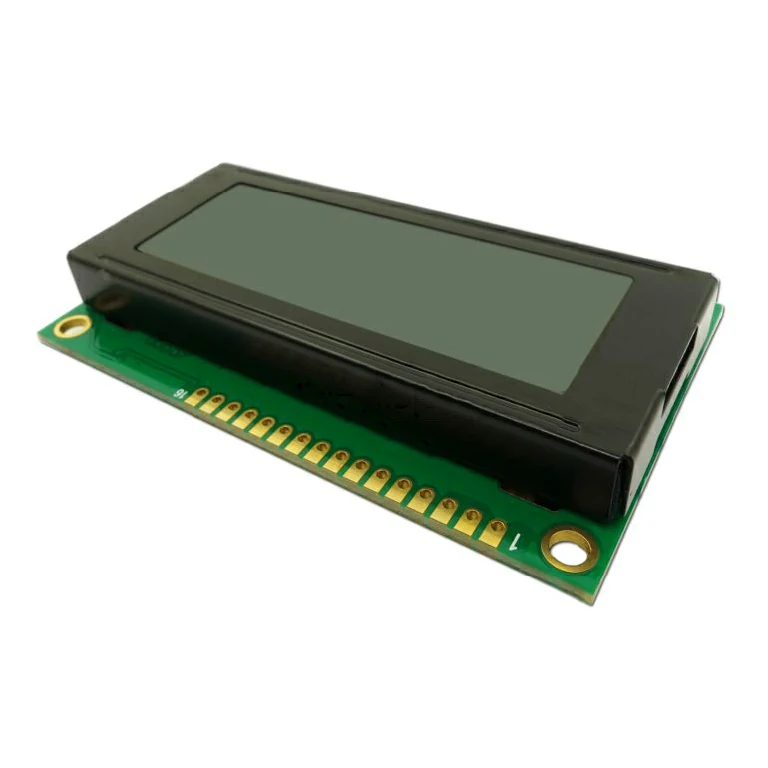

NDTC2004001 | Arduino LCD2004 20x4 LCD Display Module with I2C Support FSTN LCD Grey

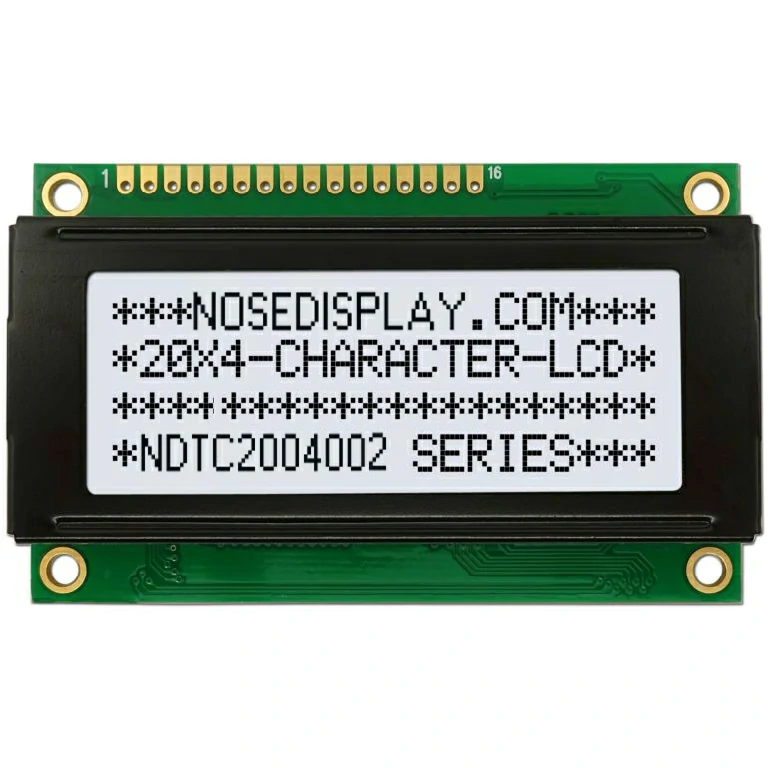

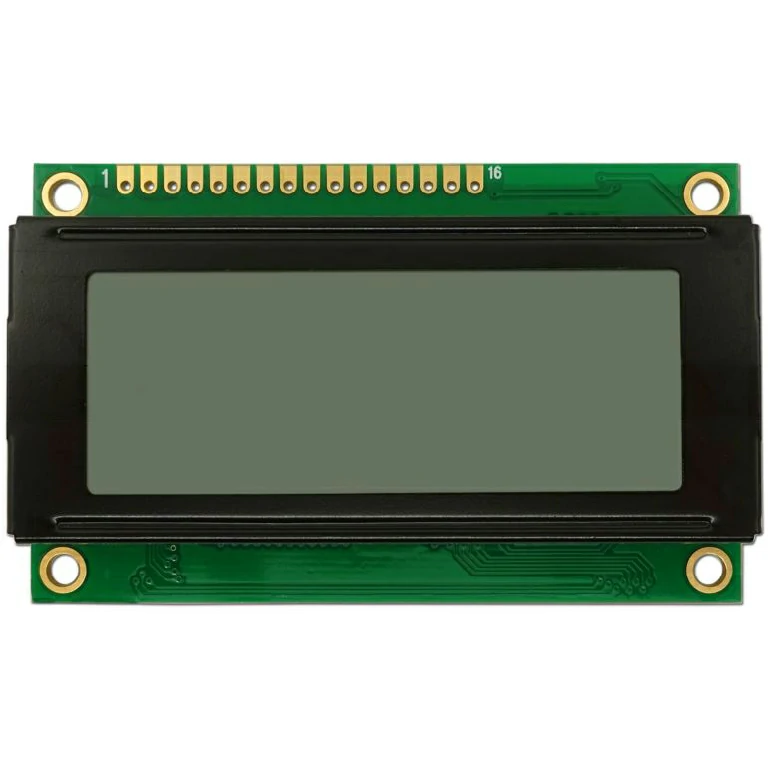

The display 20×4 LCD is a versatile character module that shows 4 lines of 20 characters each, making it perfect for text-rich applications such as control panels, instruments, and educational projects. Built with FSTN-LCD Grey technology and a transflective mode, it provides excellent contrast and readability under both indoor and outdoor lighting conditions.

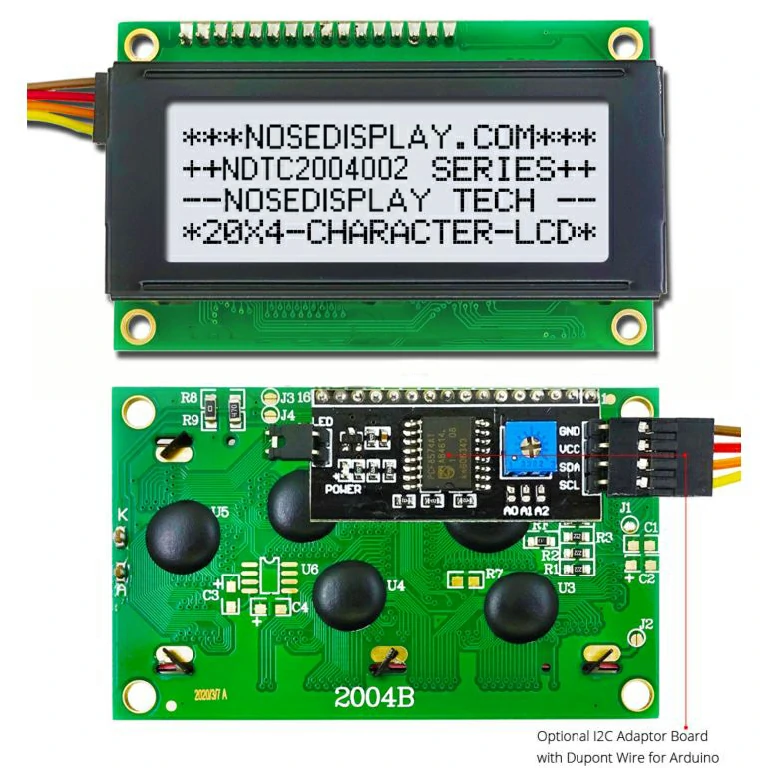

Designed for flexibility, this Arduino LCD display 20×4 supports both 3.3V and 5V operation. Developers can connect it via the standard 6800 4/8-bit parallel interface or simplify wiring by pairing it with an Arduino LCD 2004 I2C adapter. The i2c 2004 LCD option reduces pin usage while maintaining stable communication, making it ideal for compact embedded systems.
With an outline size of 77.0 × 47.0 × 13.0 mm and a viewing area of 60.6 × 22.6 mm, this Arduino LCD2004 module balances compact design with clear display capacity. Supported by reliable controller ICs (HD44780, KS0066, SPLC780), it ensures consistent performance and long-term availability for both DIY and industrial applications.
General Specifications
| Display Format: | 20×4 Characters |
| Display Type: | FSTN-LCD Grey |
| Display Mode: | Transflective |
| Controller IC: | HD44780, KS0066 ,SPLC780 |
| Viewing Angle: | 6:00 |
| Outline Dimension: | 77.0(W)x47.0(H)x13.0(T)mm |
| Viewing Area: | 60.60×22.60mm |
| Supply Voltage: | 3.3V, 5V |
| Backlight: | White Color |
| Interface: | 6800 4/8-bit parallel |
| Connection Type: | 16 Pin |
| Compatibility: | Arduino and similar development boards |
| Operating Temperature: | -20°C ~ 70°C |
| Storage Temperature: | -30°C ~ 80°C |
Pin Defenition
| Pin No. | Symbol | Function |
|---|---|---|
| 1 | VSS | Ground (0V) |
| 2 | VDD | Supply Voltage for Logic (+5.0V ) |
| 3 | VO | Contrast Adjustment |
| 4 | RS | Data/Instruction Select |
| 5 | R/W | Read/Write Select |
| 6 | E | Enable Signal |
| 7 | DB0 | Data Bus |
| 8 | DB1 | Data Bus |
| 9 | DB2 | Data Bus |
| 10 | DB3 | Data Bus |
| 11 | DB4 | Data Bus |
| 12 | DB5 | Data Bus |
| 13 | DB6 | Data Bus |
| 14 | DB7 | Data Bus |
| 15 | LED_A | LED Power Supply + (5.0V) |
| 16 | LED_K | LED Power Supply – (0V) |

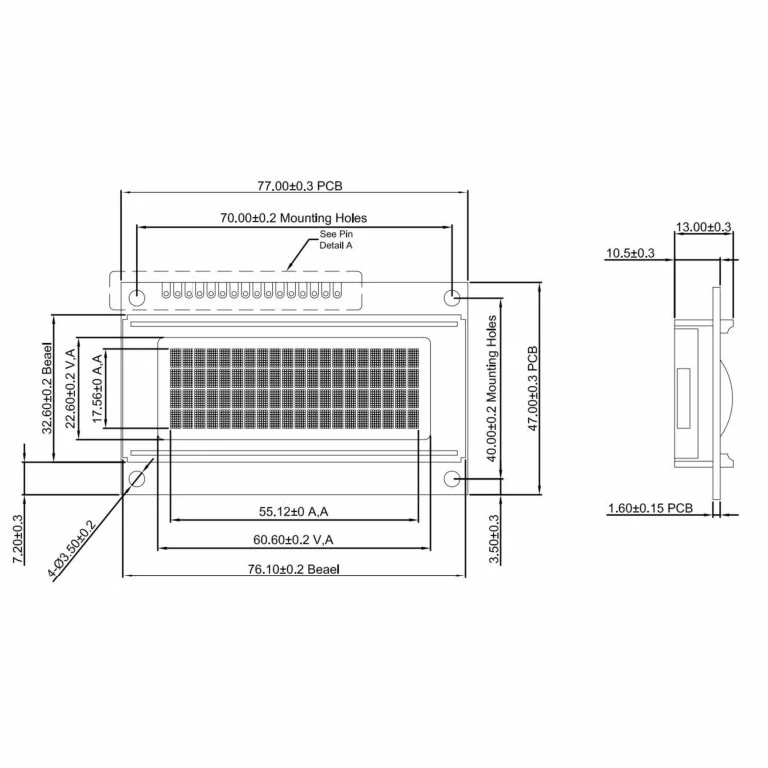

Display Drawing
Custom 20x4 Character Display Solutions
We offer bespoke display solutions with customizable sizes, interfaces, and designs, including 20x4 character display options, to perfectly align with your product's specific application requirements.
Cable Customization
Adjust the length, position, and pinout of your cables or add connectors to suit your 20×4 character FSTN-LCD display. Get a cable solution that ensures streamlined and secure connections.
Connector Custom
Easily modify connectors for your 20×4 character FSTN-LCD display to meet your application’s needs. Our engineers can perform soldering for pin headers, right angle headers, or any other connectors required.
Interface Custom
Choose from various interface options, including HDMI, USB, SPI, and more, to integrate with your 20×4 character LCD. Our experts will help select the ideal interface for your project.
Tailored PCB Design
Select from various changes in shape, size, pinout, and component layout to perfectly tailor your PCB for your 20×4 character FSTN-LCD display application.
