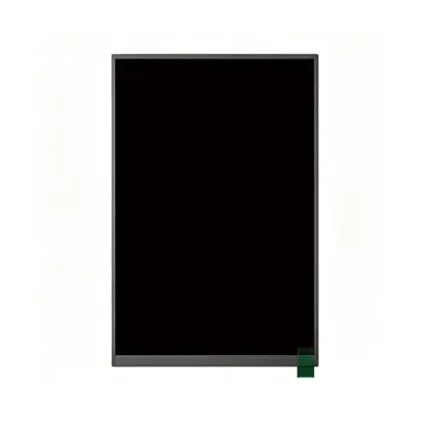

ND121FHM1280800-A01 12.1-Inch 1280 × 800 TN TFT LCD Module with LVDS
The ND121FHM1280800-A01 is a 12.1-inch TN TFT LCD module with a 1280 × 800 resolution and LVDS interface. It is intended for embedded and industrial equipment that requires a medium-format display panel with a standard LVDS connection.
This module is supplied without a touchscreen as standard. Touch integration may be evaluated for qualified projects after the enclosure structure, cover lens, touch controller, FPC routing and optical requirements have been confirmed.
Key Features
- 12.1-inch TN TFT LCD module
- 1280 × 800 resolution
- LVDS interface
- No touchscreen in the standard configuration
- Frame-free configuration
- Suitable for embedded and industrial display integration
Integration Considerations
Confirm the LVDS mapping, connector and FPC requirements, power and timing sequence, display orientation, mounting structure and operating conditions before selection. For project review, provide the host platform, required quantity, enclosure information and any touch or cover-lens requirements.
Display Drawing
Interface Definition
| PIN NO. | Symbol | Description | ||
|---|---|---|---|---|
| 1 | NC | No Connection. | ||
| 2-4 | VDD | Power Supply For LCD,VDD=3.3V. | ||
| 5 | NC | No Connection. | ||
| 6-7 | GND | Ground. | ||
| 8 | RINO- | LVDSData differential signal input pins. | ||
| 9 | RINO+ | LVDS Data differential signal input pins. | ||
| 10 | GND | Ground. | ||
| 11 | RIN1- | LVDS Data differential signal input pins. | ||
| 12 | RIN1+ | LVDS Data differential signal input pins. | ||
| 13 | GND | Ground. | ||
| 14 | RIN2- | LVDS Data differential signal input pins. | ||
| 15 | RIN2+ | LVDS Data differential signal input pins. | ||
| 16 | GND | Ground. | ||
| 17 | LVDS CLK- | LVDS CLOCK differential signal input pins. | ||
| 18 | LVDS CLK+ | LVDS CLOCK differential signal input pins. | ||
| 19 | GND | Ground. | ||
| 20 | RIN3- | LVDSData differential signal input pins. | ||
| 21 | RIN3+ | LVDS Data differential signal input pins. | ||
| 22 | GND | Ground. | ||
| 23-24 | NC | No Connection. | ||
| 25 | GND | Ground. | ||
| 26 | SDA | Serial data input/output for I2C Interface. | ||
| 27 | SCL | Clock Input for 12C interface. | ||
| 28 | GND | Ground. | ||
| 29-30 | NC | No Connection. | ||
| 31-33 | GND | Ground. | ||
| 34 | NC | No Connection. | ||
| 35 | PWM | No Connection | ||
| 36 | LED EN | No Connection | ||
| 37 | NC | No Connection | ||
| 38-40 | VLED | No Connection |
Custom 12.1-Inch TN TFT Integration
We support project-specific integration of this 12.1-inch TN TFT module, including cable and connector review, touch integration, and mechanical or PCB coordination where requirements are confirmed.
Cable and Connector Review
Cable length, pin layout and connector position can be reviewed against the host design and mechanical assembly.
Interface Integration
Confirm LVDS mapping, connector requirements and host timing before selecting this 12.1-inch module for a project.
12.1-Inch Display PCB and Mechanical Review
PCB shape, mounting structure and connector placement can be evaluated where project requirements are confirmed.
12.1-Inch Touchscreen Integration
Touchscreen integration can be evaluated with the cover lens, touch controller, FPC routing and enclosure design.
