Product Overview
NoseDisplay ND043TSN480272-B01 is a TN TFT LCD module for industrial operator panels, equipment status displays and embedded control interfaces. Its landscape format supports graphical menus, instrument readouts and compact dashboards, with a MIPI interface for integration with a compatible host controller. Engineers can evaluate the panel for enclosure designs that need clear operating information and visual feedback. Review the model-specific mechanical drawing, electrical requirements and pin assignment before finalizing the display connection. Sample testing should confirm viewing direction, readability and host compatibility under the intended installation conditions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND043TSN480272-B01 |
| Display Size | 4.30 Inch |
| Resolution | 480×272 pixels |
| Display Type | TN TFT LCD |
| Display Mode | Transmissive |
| Touchscreen | -- |
| Outline Dimensions | 105.40 × 67.10 × 2.90 mm |
| Active Area | 95.04 × 53.86 mm |
| Parameter | Specification |
| Supply Voltage | 3.2V |
| Luminance | 280cd/m² |
| Display Interface | MIPI |
| Connection Type | 40 pin connector |
| IC | ILI6485D-B0T0061 |
| Weight | -- |
| Operating Temperature | -20°C ~ 70°C |
| Storage Temperature | -30°C ~ 80°C |

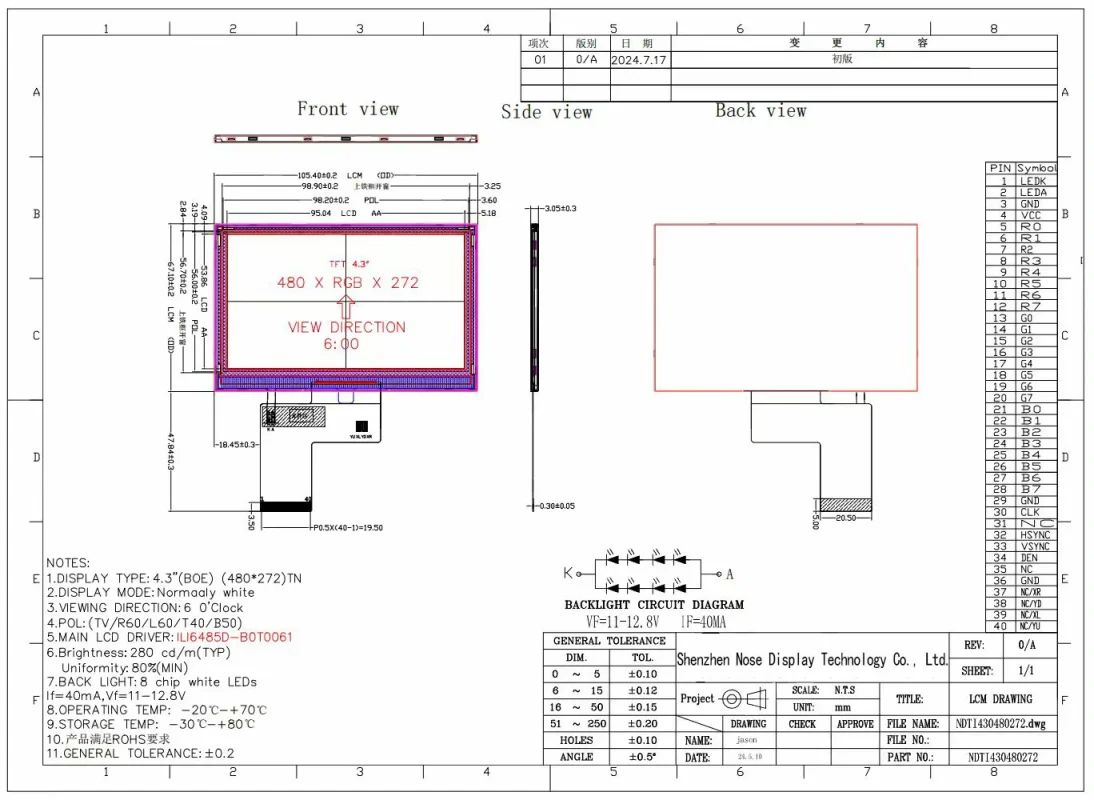

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | LEDK | Backlight Cathode |
| 02 | LEDA | Backlight Anode |
| 03 | GND | Ground |
| 04 | VCC | POWER SUPPLY |
| 05 | R0 | Data Bus |
| 06 | R1 | Data Bus |
| 07 | R2 | Data Bus |
| 08 | R3 | Data Bus |
| 09 | R4 | Data Bus |
| 10 | R5 | Data Bus |
| 11 | R6 | Data Bus |
| 12 | R7 | Data Bus |
| 13 | G0 | Data Bus |
| 14 | G1 | Data Bus |
| 15 | G2 | Data Bus |
| 16 | G3 | Data Bus |
| 17 | G4 | Data Bus |
| 18 | G5 | Data Bus |
| 19 | G6 | Data Bus |
| 20 | G7 | Data Bus |
| 21 | B0 | Data Bus |
| 22 | B1 | Data Bus |
| 23 | B2 | Data Bus |
| 24 | B3 | Data Bus |
| 25 | B4 | Data Bus |
| 26 | B5 | Data Bus |
| 27 | B6 | Data Bus |
| 28 | B7 | Data Bus |
| 29 | GND | Ground |
| 30 | CLK | Serial Clock |
| 31 | NC | No Connection |
| 32 | HS | Horizontal Sync |
| 33 | VS | Vertical Sync |
| 34 | DEN | Data Enable |
| 35 | NC | No Connection |
| 36 | GND | Ground |
| 37 | NC/XE | -- |
| 38 | NC/YD | -- |
| 39 | NC/XL | -- |
| 40 | NC/YU | -- |
