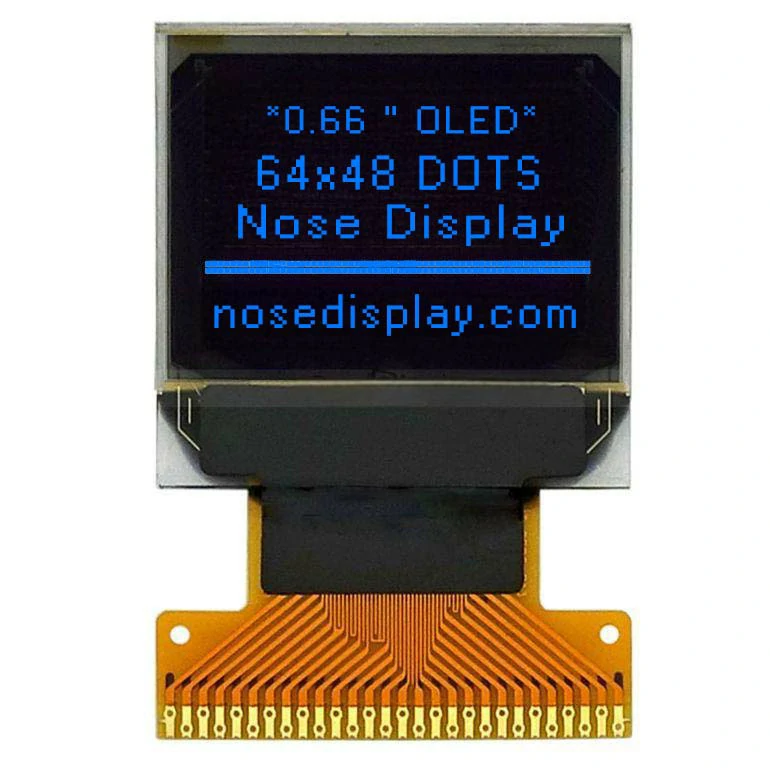

ND066PHM6448-A02 | 0.66 inch OLED Display 64x48 Resolution Touchscreen Option I2C Interface for Arduino and Embedded Applications
The ND066PHM6448-A02 is a compact 0.66 inch PMOLED display module featuring a 64×48 resolution and transmissive OLED technology, designed for developers who need high-contrast monochrome visuals combined with interactive touchscreen functionality. Powered by the SSD1315 controller and equipped with an I2C interface, this display offers easy integration with Arduino, ESP32, and similar microcontroller platforms. With a supply voltage of 3.3V and wide operating temperature range from -40°C to 70°C, it suits both industrial and wearable applications.
Ideal for smart wearables, portable instrumentation, and interactive embedded systems requiring energy-efficient, responsive displays.
Search Keywords:
0.66 inch PMOLED, OLED 0.6inch touchscreen display, 64×48 OLED screen, I2C 0.6 inch OLED module, Arduino 0.6 inch OLED touchscreen, industrial OLED display, monochrome OLED with touch, 0.6” OLED display, OLED 0.6 inch display
General Specifications
| Part No.: | ND066PHM6448-A02 |
| Size: | 0.66 inch |
| Display Format: | 64×48 Resolution |
| Display Type: | PMOLED Display |
| Display Mode: | Transmissive |
| Touchscreen: | Yes (Optional with No) |
| Optimal View: | 160° |
| Outline Dimension: | 14.26 X18.46 X1.05 mm |
| Active Area: | 13.42 (W) x 10.06 (H) |
| Supply Voltage: | 3.3V |
| Luminance | 110cd/m² |
| Interface: | I2C |
| Connection Type: | 16 pin connector |
| Controller： | SSD1315 |
| Compatibility: | Arduino and similar development boards |
| Operating Temperature: | -40°C ~ 70°C |
| Storage Temperature: | -40°C ~ 85°C |
| Mount Frame: | None |

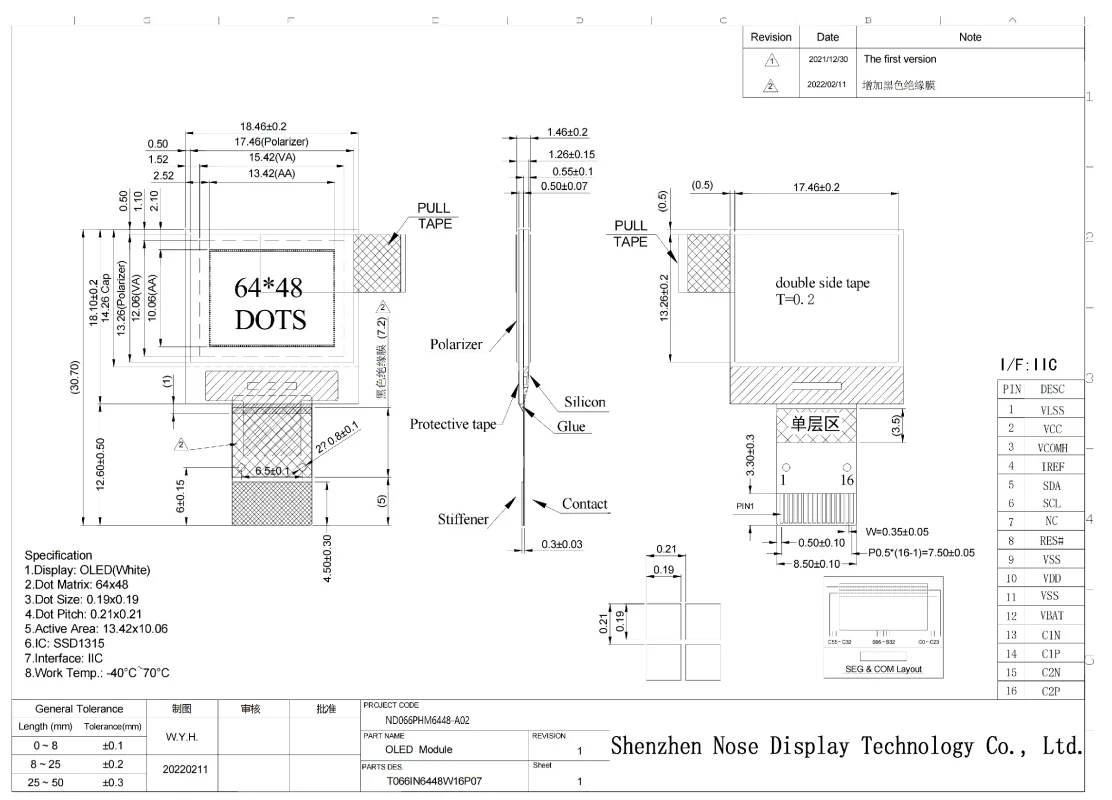

Display Drawing
Interface Definition
| NO. | Symbol | Function |
|---|---|---|
| 1 | VLSS | This is an analog ground pin. It should be connected to VSS |
| 2 | VCC | Power supply for panel driving voltage. This is also the most positive power voltage supply pin.When charge pump is enabled, a capacitor should be connected between this pin and VSS |
| 3 | VCOMH | The pin for COM signal deselected voltage level. A capacitor should be connected between this pin and VSS |
| 4 | IREF | This is segment output current reference pin. A resistor should be connected between this pin and VSS to maintain the IREF current at a maximum of 30 uA. |
| 5 | SDA | IIC data input pad. |
| 6 | SCL | IIC clock input pad |
| 7 | NC | NO CONNECTION |
| 8 | RES# | Power Reset for Controller and Driver This pin is reset signal input. When the pin is low, initialization of the chip is executed. |
| 9 | VSS | round of Logic Circuit This is a ground pin. It acts as a reference for the logic pins. It must be connected to external ground. |
| 10 | VDD | Power Supply for Logic This is a voltage supply pin. It must be connected to external source. |
| 11 | VSS | Ground of Logic Circuit This is a ground pin. It acts as a reference for the logic pins. It must be connected to external ground. |
| 12 | VBAT | Power Supply for DC/DC Converter Circuit This is the power supply pin for the internal buffer of the DC/DC voltage converter. It must be connected to external source when the converter is used. It should be connected to VDD when the converter is not used. |
| 13 | C1N | Positive Terminal of the Flying Inverting Capacitor Negative Terminal of the Flying Boost Capacitor The charge-pump capacitors are required between the terminals. They must be floated when the converter is not used |
| 14 | C1P | |
| 15 | C2N | |
| 16 | C2P |
