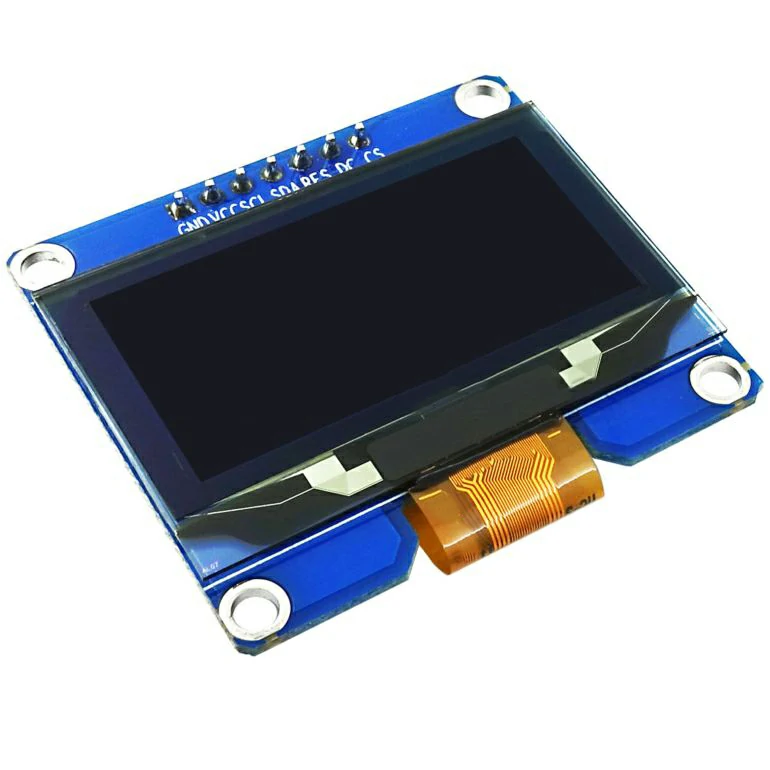

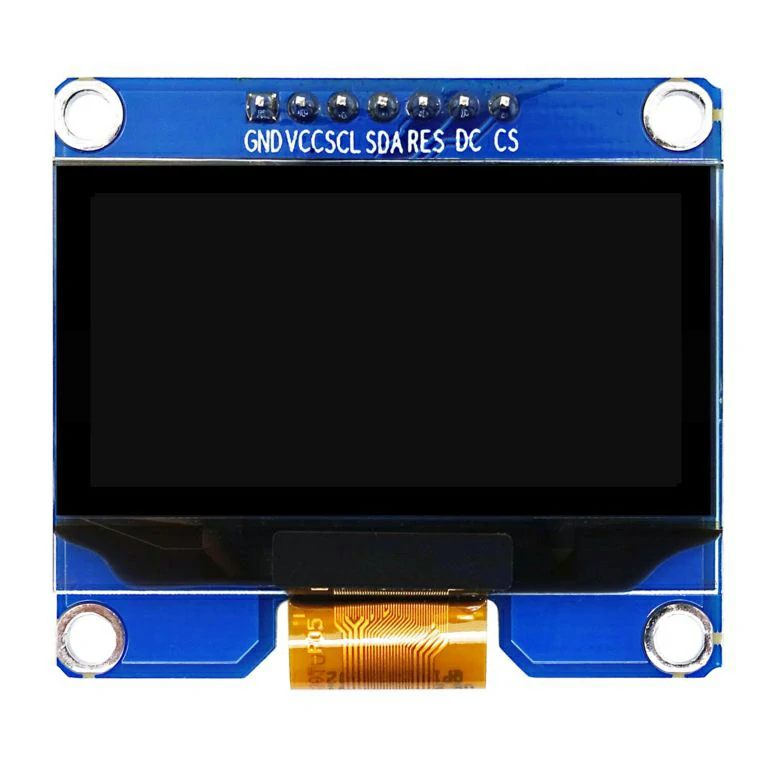

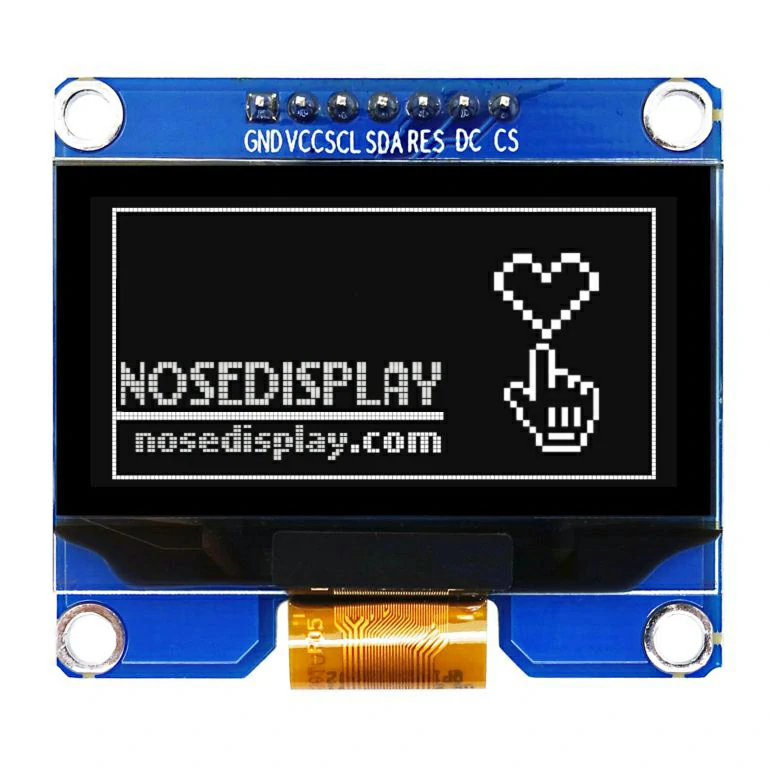

ND154PHM12864-A01 | 1.54 inch OLED Display 128x64 Resolution with SPI4 Interface Compatible with Arduino and ESP32
Enhance your embedded systems with this 1.54 inch OLED display, designed for engineers who demand high readability, broad viewing angles, and reliable integration in compact designs. Featuring 128×64 resolution, SPI4 interface, and the trusted SSD1309 controller, this module offers an ideal balance of size, clarity, and low-power performance for a wide range of electronic applications.
Whether you’re creating robot kits, IoT projects, or interactive electronics, this 1.54 inch screen provides exceptional clarity and responsiveness. Choose this 1.54 inch TFT display to bring your innovative ideas to life with a reliable, high-performance LCD solution.
Search Keywords:
1.54 inch oled, 1.54 inch screen, oled 1.5 inch, 1.5 oled display, oled 1.5 inch, 1.5” oled, oled display 1.5 inch
General Specifications
| Part No.: | ND154PHM12864-A01 |
| Size: | 1.54 inch |
| Display Format: | 128×64 Resolution |
| Display Type: | OLED Display |
| Display Mode: | Transmissive |
| Touchscreen: | No (Optional with Yes) |
| Optimal View: | 160 |
| Outline Dimension: | 42.04 (W) X27.22 (H) X1.46(T) mm |
| Active Area: | 35.05(W) X17.51 (H) mm |
| Supply Voltage: | 3.3V |
| Luminance | 110 Cd/㎡ |
| Interface: | SPI4 |
| Connection Type: | 14 pin connector |
| Controller： | SSD1309 |
| Compatibility: | Arduino and similar development boards |
| Operating Temperature: | -40°C ~ 70°C |
| Storage Temperature: | -40°C ~ 85°C |
| Mount Frame: | None |

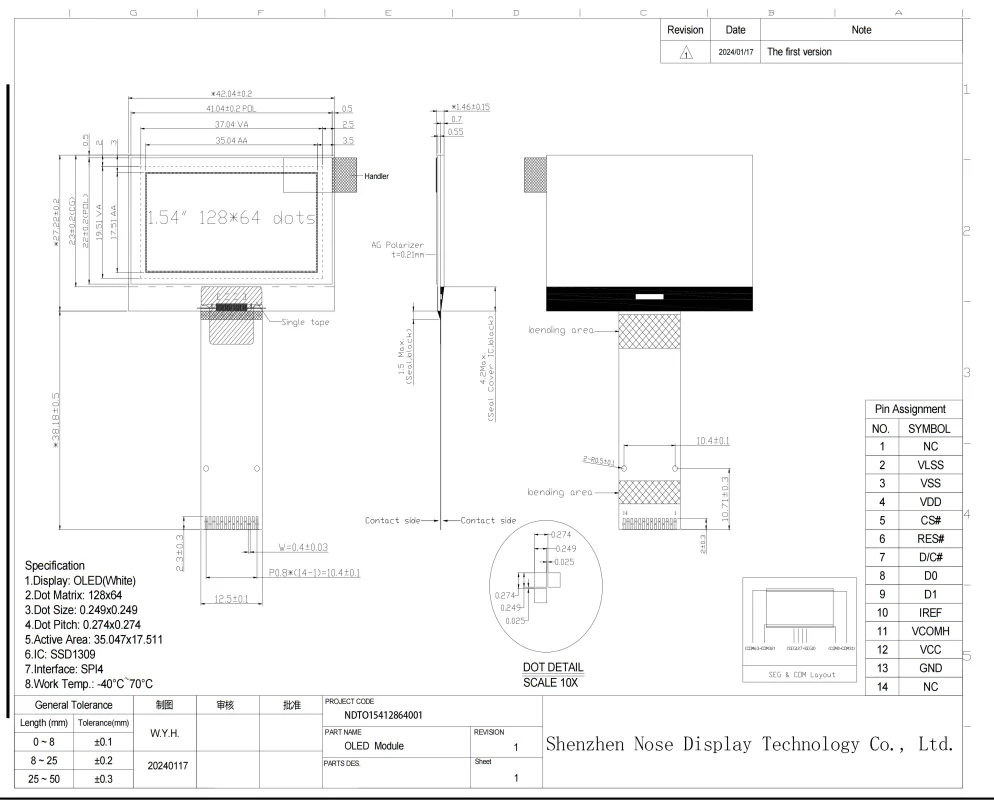

Display Drawing
Interface Definition
| NO. | Symbol | Level | Description |
|---|---|---|---|
| 1 | NC | No connection. | |
| 2 | VLSS | Analog system ground pin. | |
| 3 | VSS | Ground pin. | |
| 4 | VDD | Power supply for logic circuit. | |
| 5 | CS# | Chip select input. | |
| 6 | RES# | Reset signal input. | |
| 7 | D/C# | This is Data/Command control pin. | |
| 8 | D0 | D0 will be the serial clock input: SCLK; | |
| 9 | D1 | D1 will be the serial data input: SDIN | |
| 10 | IREF | Reference current input pin. A resistor should be connected between this pin and VSS. | |
| 11 | VCOMH | Com Voltage Output. A capacitor should be connected between this pin and VSS. | |
| 12 | VCC | Power supply for panel driving voltage. | |
| 13 | GND | Ground Pin. | |
| 14 | NC | No connection. |
Custom 1.54'' PMOLED display
We provide custom 1.54'' OLED display modules, enabling you to tailor essential specifications like resolution, brightness, and interface. Our solutions also feature personalized connector placements and smooth integration with platforms like Arduino, ensuring peak system performance.
Custom OLED Display
Create the ideal 1.54” OLED display with complete customization options for size, resolution, and configuration, perfectly suited to your design and application requirements.
Custom OLED Interfaces
With customizable cable lengths and connector configurations for 1.54” OLED modules, you can achieve precise system integration, ensuring consistent performance and seamless display alignment.

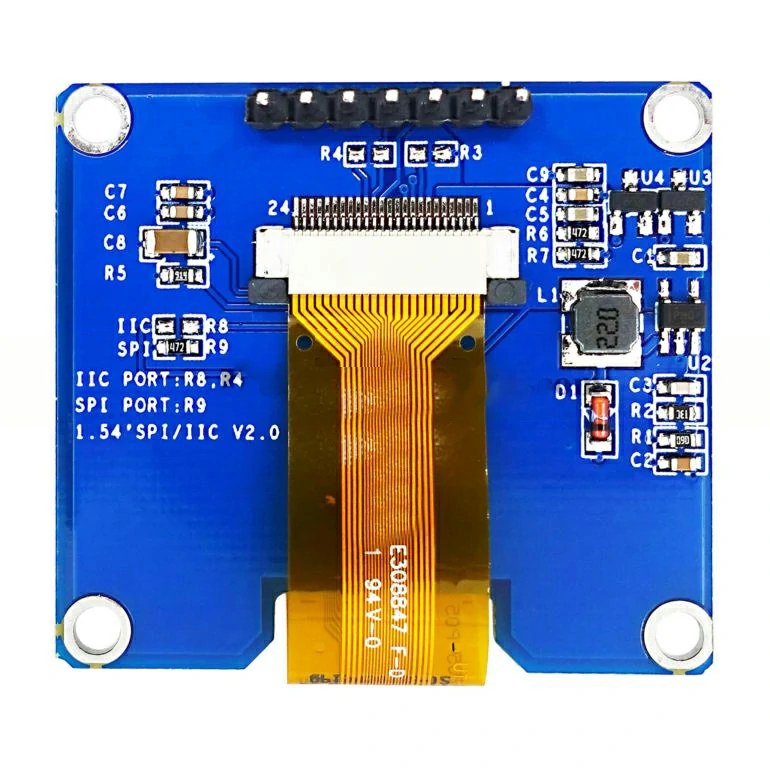

1.54'' OLED PCB Design
Optimized PCB design for 1.54” OLED modules enhances power distribution and signal integrity, ensuring stable and high-quality display performance in compact systems.
Different Color Options
Select from a range of color options for 1.54” OLED modules, delivering tailored visual experiences and greater design flexibility to perfectly fit your project or application.
