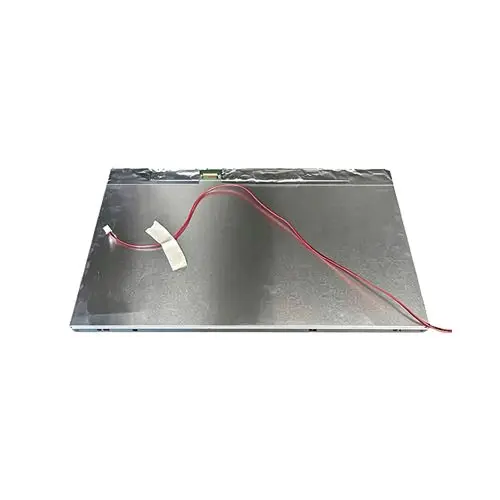

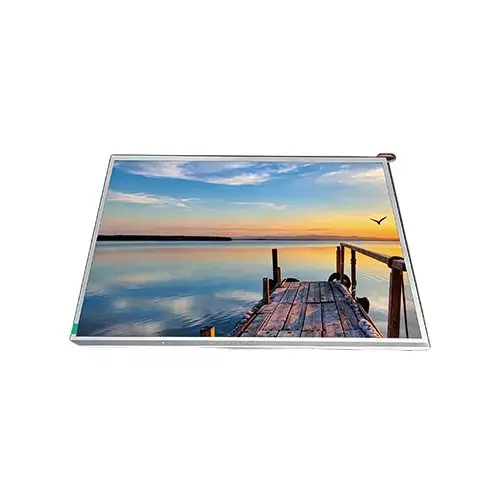

ND116THM19201080-A01 11.6 inch 1920x1080 IPS TFT Display with EPD Interface, Arduino Compatible
ND116THM19201080-A01 11.6 inch 1920×1080 Resolution IPS TFT Display with EDP Interface, Compatible with Arduino Development Boards, High Brightness for Industrial Use
Search Keywords：
11.6 inch TFT display, 1920×1080 resolution, EDP interface, industrial TFT panel, high brightness LCD, 850cd/m² display, Arduino compatible display, TFT LCD screen, TFT display module, TFT display, embedded system display, high luminance display, industrial LCD screen, 11.6 inch display, wide viewing angle LCD,
Specifications:
| Part No: | ND116THM19201080-A01 |
| Size: | 11.6 inch |
| Display Format: | 1920×1080 Resolution |
| Display Type: | IPS Display |
| Display Shape: | Landscape |
| Display Mode: | Transmissive |
| Touchscreen: | No |
| Optimal View: | Full View |
| Outline Dimension: | 267.72 (H) X 164.42 (V) X 6.2(D)mm |
| Active Area: | 256.320 (H) × 144.180(V)(mm) |
| Supply Voltage: | 3.3V |
| Luminance | 850Cd/m² |
| Interface: | EDP |
| Connection Type: | 30 pins connector |
| Compatibility: | Arduino and similar development boards |
| Operating Temperature: | -20° ~ 70° |
| Storage Temperature: | -30° ~ 80° |
| Mount Frame: | None |

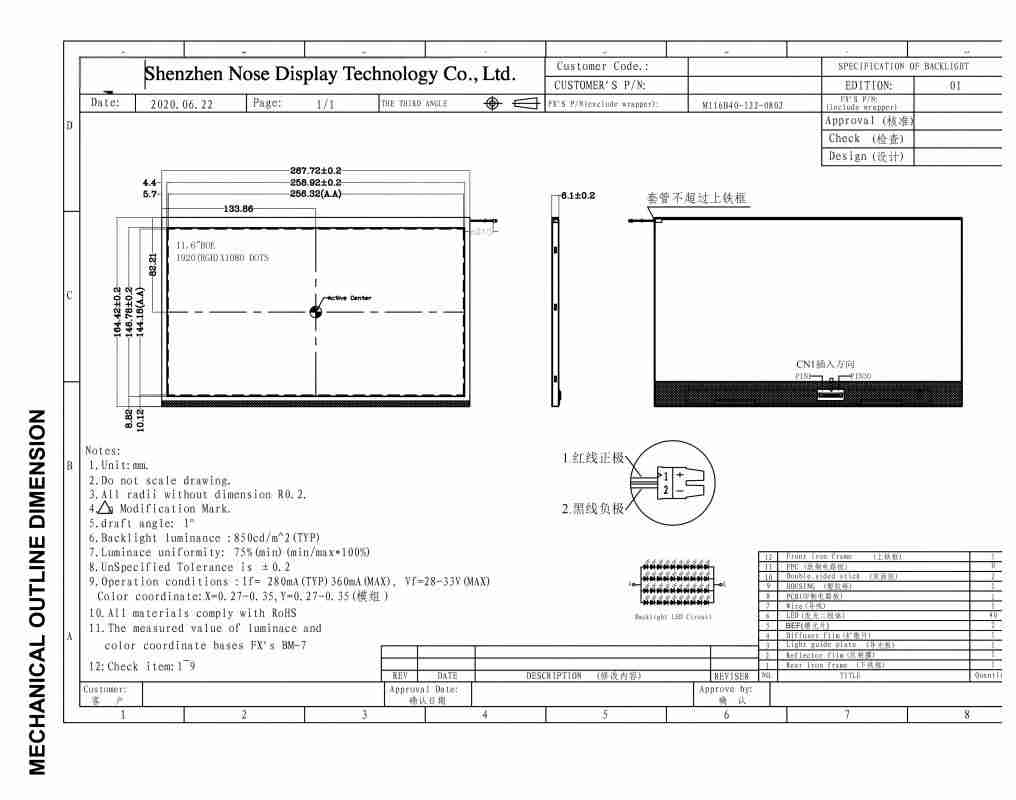

Display Drawing
Interface Definition
| PIN NO. | Symbol | Description |
|---|---|---|
| 1 | CABC-EN | CABC-EN |
| 2 | GND | Power Ground |
| 3 | LANE1-N | eDP RX channel 1 negative |
| 4 | LANE1-P | eDP RX channel 1 positive |
| 5 | GND | Power Ground |
| 6 | LANEO-N | eDP RX channel 0 negative |
| 7 | LANEO-P | eDP RX channel 0 positive |
| 8 | GND | Power Ground |
| 9 | AUX-CH-P | eDP AUX CH positive |
| 10 | AUX-CH-N | eDP AUX CH negative |
| 11 | GND | Power Ground |
| 12 | LDC-VCC | 3.3V |
| 13 | LCD-VCC | 3.3V |
| 14 | LCD-TEST | Panel self test enable |
| 15 | GND | Power Ground |
| 16 | GND | Power Ground |
| 17 | HPD | Hot plug detect output |
| 18 | BL-GND | Power Ground |
| 19 | BL-GND | Power Ground |
| 20 | BL-GND | Power Ground |
| 21 | BL-GND | Power Ground |
| 22 | BL-ENABLE | BL-ENABLE |
| 23 | BL-PW M | Reset low active |
| 24 | MSCL | FOR DEBUG |
| 25 | MSDA | FOR DEBUG |
| 26 | BL-POWER | BL-POWER |
| 27 | BL-POWER | BL-POWER |
| 28 | BL-POWER | BL-POWER |
| 29 | BL-POWER | BL-POWER |
| 30 | NC | NC |
Custom 11.6" TFT Display
We offer full customization of TFT 11.6" LCD display modules, including resolution,brightness, interface, and touch options. Our service covers PCB design, connector modification,and cover glass solutions, ensuring a perfect fit and reliable performance for your specific application.
LCD Cable Custom
Adjust LCD cable length, pin layout, and connector position of IPS display 11.6 inch to match your system. Engineered for reliable and optimized connectivity.
LCD Interface Custom
Choose interfaces of LCD 11.6 inch TFT from MCU parallel, LVDS, SPI, RGB, and beyond. We’ll guide you in selecting and integrating the best LCD interface fit for your project.
11.6'' LCD PCB Design
Customize PCB shape, size, pin configuration, and component layout of TFT 11.6 inch display to guarantee precise fit and smooth integration with your device.
11.6'' Touchscreen Adding
Enhance your TFT LCD 11.6 inch IPS display with resistive or capacitive touch. Seamless integration delivers smooth control and intuitive operation.
