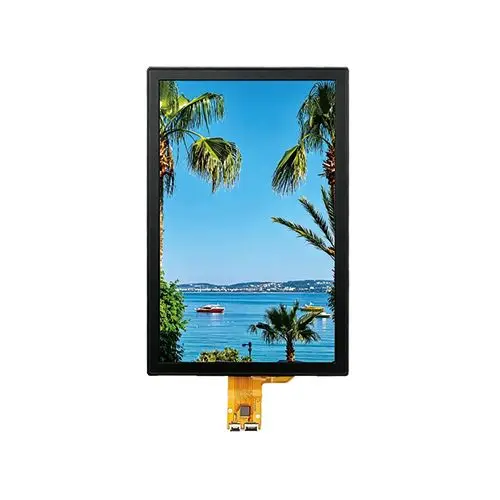

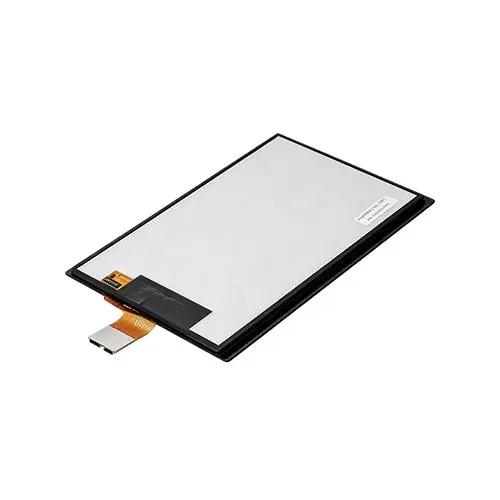

Product Overview
NoseDisplay’s ND080TSG8001280-A01 (previous model reference: ND080TNG8001280-A01) is an 8.0 inch IPS TFT LCD display with an 800×1280 pixel resolution and a MIPI interface. Its portrait layout provides room for equipment information, navigation menus and embedded user interfaces. This version uses a JD9366TC driver IC and a 40-pin connection. Review the host MIPI configuration, power requirements and full pin definition before integration. Confirm the cover-lens configuration, touch options and enclosure fit with NoseDisplay. Request model-specific documentation and sample availability to evaluate the display for your intended application.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND080TSG8001280-A01 |
| Display Size | 8.0 Inch |
| Resolution | 800×1280 pixels |
| Display Type | IPS TFT LCD |
| Display Mode | Transmissive |
| Touchscreen | No (Optional with Yes) |
| Outline Dimensions | 126.29 × 196.8 × 3.47 mm |
| Active Area | 107.64 × 172.224 mm |
| Parameter | Specification |
| Supply Voltage | 3.3 V |
| Luminance | 350 nits |
| Display Interface | MIPI |
| Connection Type | 40-pin connector |
| IC | JD9366TC |
| Weight | -- |
| Operating Temperature | −10°C to +60°C |
| Storage Temperature | −20°C to +70°C |

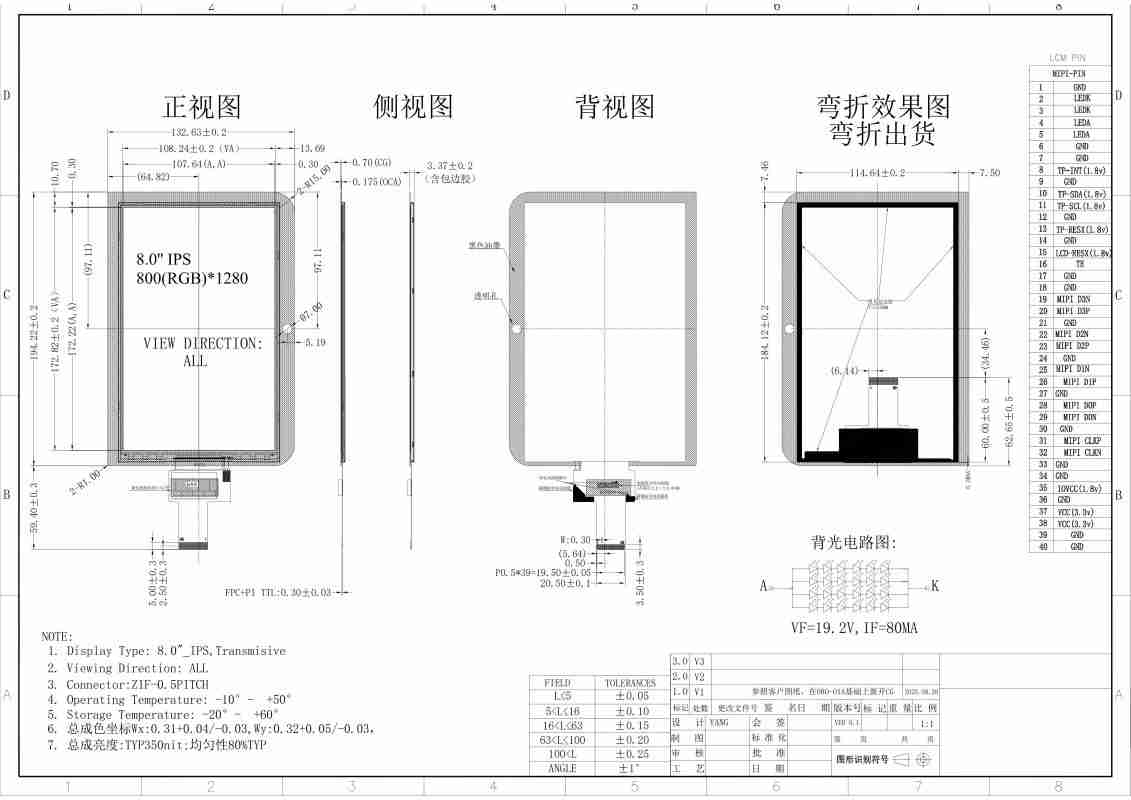

Mechanical Drawing & Interface Definition
Please refer to the model-specific TFT-LCD specification for mechanical drawings, dimensions, FPC connection details and pin definitions. Visit our Download Center for available datasheets, or contact an engineer to request documentation for your model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | GND | Ground |
| 02 | LEDK | Backlight Cathode |
| 03 | LEDK | Backlight Cathode |
| 04 | LEKA | -- |
| 05 | LEKA | -- |
| 06 | GND | Ground |
| 07 | GND | Ground |
| 08 | TP_INT | Touch Interrupt |
| 09 | GND | Ground |
| 10 | TP_SDA | Touch I2C Data |
| 11 | TP_SCL | Touch I2C Clock |
| 12 | GND | Ground |
| 13 | TP_RST | Touch Reset |
| 14 | GND | Ground |
| 15 | LCD-RST | Reset |
| 16 | TE | Tearing Effect Output |
| 17 | GND | Ground |
| 18 | GND | Ground |
| 19 | DSI_D3N | Differential Data - |
| 20 | DSI_D3P | Differential Data + |
| 21 | GND | Ground |
| 22 | DSI_D2N | Differential Data - |
| 23 | DSI_D2P | Differential Data + |
| 24 | GND | Ground |
| 25 | DSI_D1N | Differential Data - |
| 26 | DSI_D1P | Differential Data + |
| 27 | GND | Ground |
| 28 | DSI_D0N | Differential Data - |
| 29 | DSI_D0P | Differential Data + |
| 30 | GND | Ground |
| 31 | DSI_CKN | Differential Clock - |
| 32 | DSI_CKP | Differential Clock + |
| 33 | GND | Ground |
| 34 | GND | Ground |
| 35 | IOVCC | I/O POWER SUPPLY |
| 36 | GND | Ground |
| 37 | VCI | POWER SUPPLY |
| 38 | VCI | POWER SUPPLY |
| 39 | GND | Ground |
| 40 | GND | Ground |
