1.54 Inch ePaper Display Overview

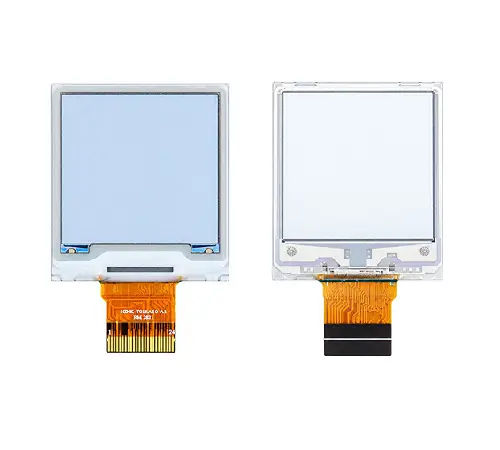

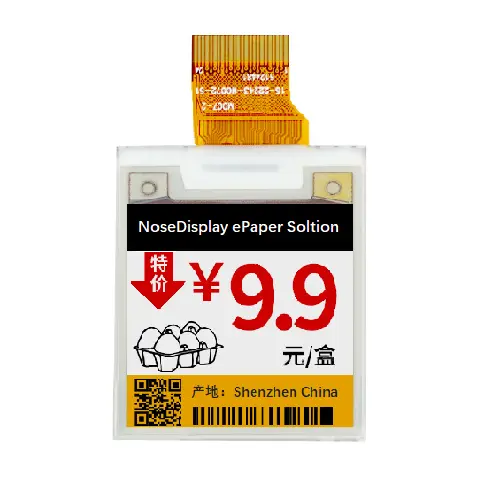

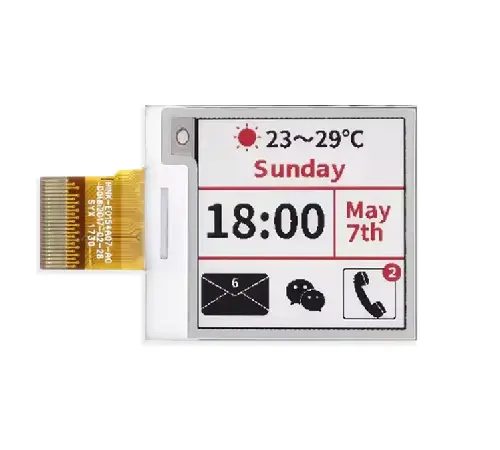

The ND015EPN200200-A03 is a 1.54-inch four-color E Ink ePaper display with 200 × 200 resolution, an SSD1681 controller and a 24-pin FPC. Its square reflective panel separates black, white, red and yellow content for compact labels. Engineers should verify the selected three-wire or four-wire SPI configuration, logic supply, panel power sequencing, initialization and color waveform before designing a host board.
Electronic shelf labels, inventory tags and compact equipment identifiers can use color to distinguish status without a backlight. For ESP32, STM32, Arduino or Raspberry Pi prototypes, NoseDisplay can review driver-board selection, FPC wiring and image conversion. OEM evaluation can cover protective lenses and enclosure clearances. Refresh current and system power consumption require measurement under the intended update schedule.
The ND015EPN200200-A03 is a 1.54-inch four-color E Ink ePaper display with 200 × 200 resolution, SSD1681 control and a 24-pin SPI FPC. Its square reflective screen suits shelf labels, inventory tags and equipment identifiers. ESP32 or STM32 projects require verified interface settings, power sequencing, initialization and color waveforms. NoseDisplay can assess driver boards, enclosure fitting and cover-lens options for OEM prototypes.
Technical Specifications

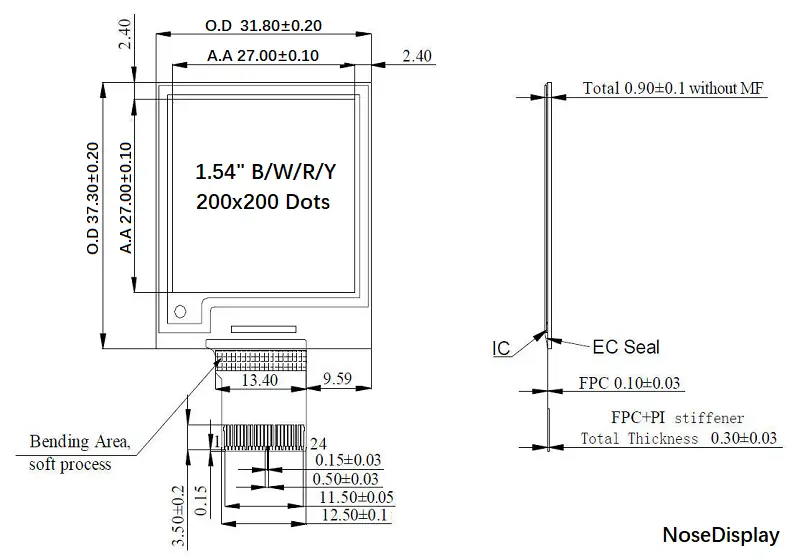

Mechanical Drawing & Interface Definition
Model: ND015EPN200200-A03
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | NC | No connection; keep open |
| 02 | GDR | N-channel MOSFET gate drive control |
| 03 | RSE | Current sense input for control loop |
| 04 | NC | No connection; keep open |
| 05 | VDH | Positive source driving voltage |
| 06 | GND | Ground |
| 07 | GND | Ground |
| 08 | BS | SPI selection: LOW = 4-wire; HIGH = 3-wire (9-bit) |
| 09 | BUSY_N | Busy output; LOW = busy, do not issue commands |
| 10 | RST_N | Reset input, active low |
| 11 | DC | Data/command: HIGH = data; LOW = command |
| 12 | CSB | Chip select input, active low |
| 13 | SCL | SPI serial clock |
| 14 | SDA | SPI serial data |
| 15 | VDDIO | Interface logic supply: 2.4–3.6 V |
| 16 | VDD | Chip power supply: 2.4–3.6 V (typ. 3.0 V) |
| 17 | GND | Ground |
| 18 | VDDD | Core logic power |
| 19 | VPP | OTP programming supply |
| 20 | VSH | Positive source driver voltage |
| 21 | VGH | Positive gate driving voltage |
| 22 | VSL | Negative source driver voltage |
| 23 | VGL | Negative gate voltage |
| 24 | VCOM | VCOM driving voltage |
Sample Ordering & Delivery
Order ND015EPN200200-A03 1.54-inch four-color ePaper samples for label prototypes and SSD1681 SPI evaluation. Shipping is charged separately; duties and taxes are excluded. Delivery includes preparation; final terms are confirmed before payment.
Sample MOQ
3 pcs per modelMinimum 3 pcs per model.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
1.54 Inch ePaper Display Applications
The ND015EPN200200-A03 suits color-coded shelf labels, inventory tags and equipment identification panels. Black, white, red and yellow content can distinguish status in compact battery-powered IoT products, with text layout and update behavior evaluated for the intended system.

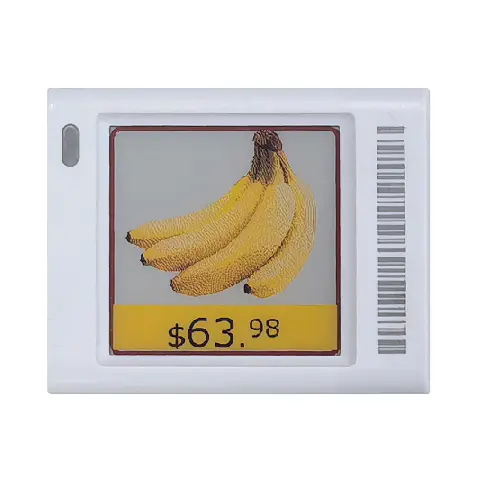

Electronic Shelf Labels
Smart Home Status
IoT Status Displays
Equipment Labels
Matching Driver Board
For the ND015EPN200200-A03, NoseDisplay can evaluate SSD1681 SPI driver-board arrangements with a 24-pin FPC. Three-wire or four-wire interface selection, logic supply, initialization and four-color waveforms require configuration-specific review. ESP32, STM32, Arduino and Raspberry Pi prototypes also need suitable image conversion and verified wiring. Engineers should measure ePaper refresh current and system power consumption under the selected supply and update schedule; board availability and sample contents are confirmed for each project.
Customization Options
For the ND015EPN200200-A03 four-color module, NoseDisplay can evaluate 24-pin FPC routing, SSD1681 driver-board selection, protective cover lenses and compact label-enclosure fitting for OEM prototypes.
ePaper & FPC Options
Alternative display sizes, colors and FPC configurations can be evaluated for your project.
Touch Integration
Touch panel options can be evaluated according to enclosure and operating requirements.
Cover Lens Options
Custom cover glass or PMMA lenses with optional printing, shape and surface treatments.
Driver Board Support
Driver board and interface solutions can be evaluated for your host platform.
Quality & Compliance Support
We provide quality and compliance documentation for qualified OEM projects
based on the selected module, BOM and manufacturing configuration.
RoHS
EU RoHS compliant materials and process control
REACH
Support REACH regulation compliance
Reliability Testing
Environmental & mechanical reliability testing reports
ESD Control
ESD protection design and testing capability
Quality System
Manufactured under a certified quality management system
Documentation availability and scope are confirmed according to the selected module, BOM, manufacturing source and project requirements.
