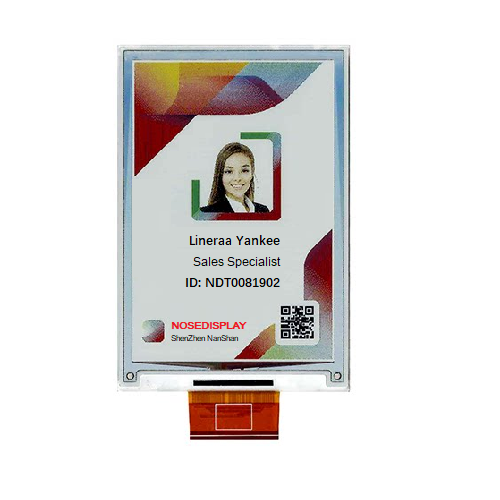

Product Overview
NoseDisplay ND040EPN600400-A01 is a six-color ePaper display module for retail product signs, smart home information panels, electronic labels and battery-powered IoT devices. Its compact E Ink screen provides a low-power electronic paper option for embedded information displays with static or periodically updated content. Its UC8179 controller uses SPI for host-controlled display updates, while driver board selection, initialization and waveform requirements should be reviewed for each project. The reflective screen retains information between updates, helping OEM teams build readable status displays for compact enclosures and energy-conscious applications. NoseDisplay can review FPC connections, enclosure requirements and project-specific integration options during evaluation.
NoseDisplay ND040EPN600400-A01 is a six-color ePaper display module for retail product signs, smart home information panels, electronic labels and battery-powered IoT devices. Its compact E Ink screen retains information between updates for low-power embedded applications. Its UC8179 controller uses SPI for host-controlled display updates; driver board selection, initialization and waveform requirements should be reviewed against the requirements of each OEM project.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | ND040EPN600400-A01 |
| Display Size | 4.0 inch |
| Resolution | 600 × 400 pixels |
| Display Type | ePaper (E Ink Spectra 6) |
| Display Color | Six Color (Spectra 6) |
| Shape | Rectangle |
| Display Mode | Reflective |
| Pixel Density | 180 DPI |
| Parameter | Specification |
| Outline Dimensions | 90.00 × 66.00 × 0.85 mm |
| Active Area | 84.60 × 56.40 mm |
| Display Interface | SPI |
| Connection Type | FH34SRJ-S05-0.5SH (50 Pin) |
| IC | UC8179 |
| Weight | 11.0 ± 1 g |
| Operating Temperature | 0°C to +50°C |
| Storage Temperature | −25°C to +60°C |

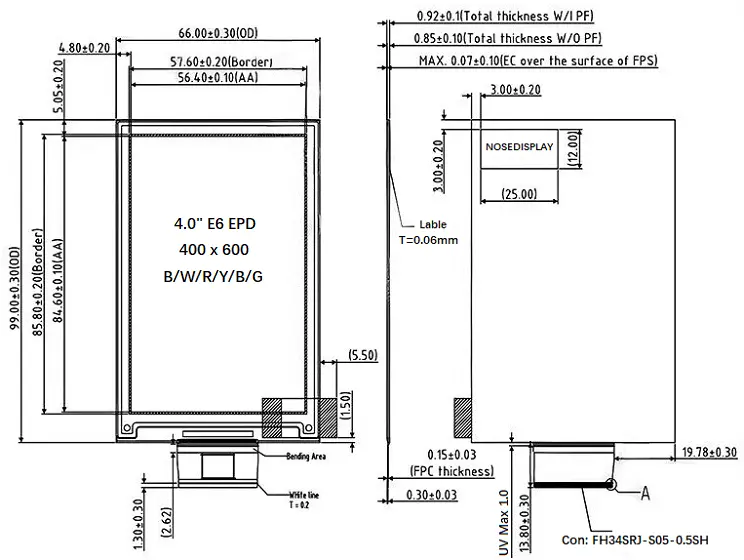

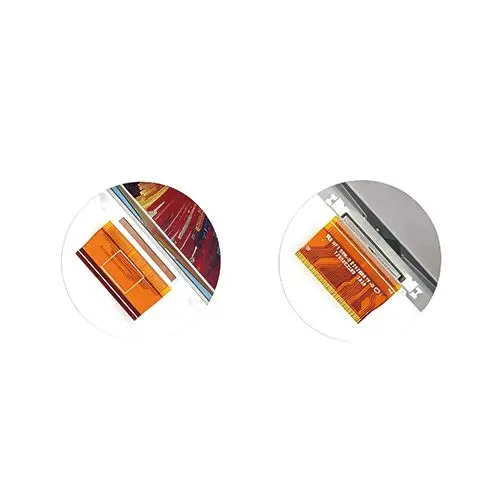

Mechanical Drawing & Interface Definition
Please refer to the model-specific ePaper display specification for mechanical drawings, dimensions, FPC connections and pin definitions. Visit our Download Center to view available datasheets, or contact an engineer to request the specification for your selected model.
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | NC | No connection; do not connect to other NC pins. |
| 02 | TFT_VCOM | Type: P. TFT_VCOM driving voltage. |
| 03 | FPL_VCOM | Type: P. FPL_VCOM driving voltage. |
| 04 | NC | No connection. |
| 05 | GDRH | Type: I/O. N-channel MOSFET gate drive control. |
| 06 | RESEH | Type: I/O. Current sense input for the control loop. |
| 07 | GDRL | Type: I/O. Reserved. |
| 08 | GND | Type: P. Ground. |
| 09 | GDRC | Type: I/O. P-channel MOSFET gate drive control. |
| 10 | RESEC | Type: I/O. Current sense input for the control loop. |
| 11 | VPC | Type: P. VPC driving voltage. |
| 12 | GND | Type: P. Ground. |
| 13 | VGL | Type: P. Negative gate driving voltage. |
| 14 | VPH | Type: P. VPH driving voltage. |
| 15 | VSH | Type: P. Positive source driving voltage. |
| 16 | VSH_LV | Type: P. Positive source driving voltage. |
| 17 | VSH_LV2 | Type: P. Positive source driving voltage. |
| 18 | VSL | Type: P. Negative source driving voltage. |
| 19 | VSL_LV | Type: P. Negative source driving voltage. |
| 20 | VSL_LV2 | Type: P. Negative source driving voltage. |
| 21 | GNDA | Type: P. Ground; connect to GND. |
| 22 | REFN | Reserved. |
| 23 | REFP | Reserved. |
| 24 | TSCL | Type: O. I²C interface to digital temperature sensor clock pin. |
| 25 | TSDA | Type: I/O. I²C interface to digital temperature sensor data pin. |
| 26 | BS0 | Type: I. Bus selection pin: L = 4-wire interface; H = 3-wire interface (default). |
| 27 | BS1 | Type: I. Bus selection pin: L = refer to BS0 (default); H = standard 4-wire SPI / dual SPI / quad SPI. |
| 28 | RES# | Type: I. Reset. |
| 29 | BUSY_N | Type: O. Busy state output pin. |
| 30 | D/C# | Type: I. Data/command control pin (D/C). |
| 31 | CS# | Type: I. Chip select input pin (CSB). |
| 32 | SCL | Type: I. Serial clock pin (SPI). |
| 33 | SI0 | Type: I/O. Serial data pin (SPI). |
| 34 | SI1 | Type: I/O. Serial data pin; reserved. |
| 35 | SI2 | Type: I/O. Serial data pin; reserved. |
| 36 | SI3 | Type: I/O. Serial data pin; reserved. |
| 37 | VDDD0 | Type: P. Core logic power pin; connect to VDDD. |
| 38 | VDD | Type: P. Supply voltage. |
| 39 | GND | Type: P. Ground; connect to GNDA. |
| 40 | VDDIO | Type: P. Supply voltage. |
| 41 | VCP2 | Type: P. Charge pump pin. |
| 42 | CP2N | Type: P. Charge pump pin. |
| 43 | CP2P | Type: P. Charge pump pin. |
| 44 | VCP1 | Type: P. Charge pump pin. |
| 45 | CP1N | Type: P. Charge pump pin. |
| 46 | CP1P | Type: P. Charge pump pin. |
| 47 | CGH1N | Charge pump pin; reserved. |
| 48 | CGH1P | Charge pump pin; reserved. |
| 49 | VGH | Type: P. Positive gate driving voltage. |
| 50 | VCOMBD | Type: P. VCOMBD driving voltage. |
