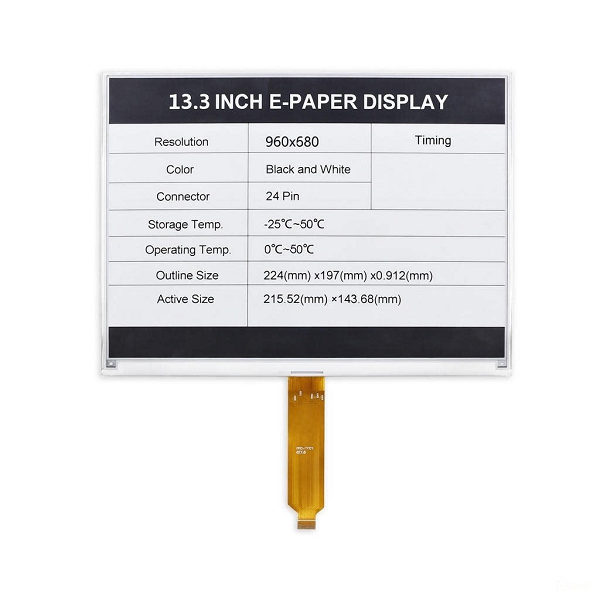

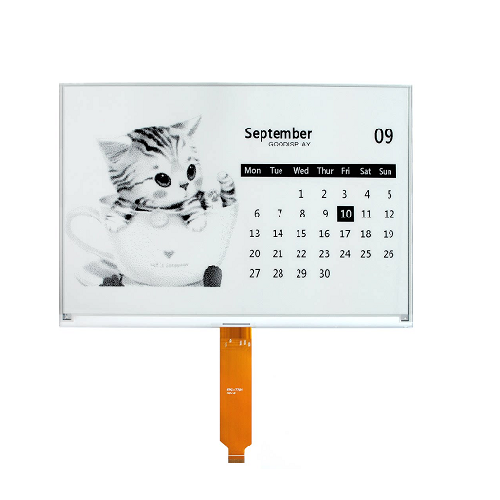

13.3 Inch ePaper Display Overview
ND133EPN960680-A01 is a 13.3-inch black-and-white ePaper display with a 960 × 680 reflective E Ink panel, SSD1677 controller and SPI interface. Its 24-pin connection requires suitable driving circuitry and verified supply levels. Review power sequencing, initialization, waveform selection and image conversion before integrating the module with a host PCB or embedded system.
The display suits industrial information panels, warehouse notices, equipment dashboards and room schedules that use static or periodically updated content. Evaluate full and partial refresh behavior under the intended operating conditions rather than assuming identical performance for every image. NoseDisplay can review ESP32, STM32 or Linux single-board-computer host arrangements with appropriate hardware and firmware, alongside FPC routing, cover lens dimensions and enclosure requirements for an OEM prototype.
ND133EPN960680-A01 is a 13.3-inch 960 × 680 black-and-white E Ink ePaper display with SPI, an SSD1677 controller and a 24-pin connection. It suits industrial information panels, warehouse notices and equipment dashboards. Evaluate full and partial refresh behavior, supply levels, power sequencing, initialization and waveforms with appropriate driver circuitry. NoseDisplay can review image conversion, host firmware and enclosure requirements for OEM prototypes.
Technical Specifications

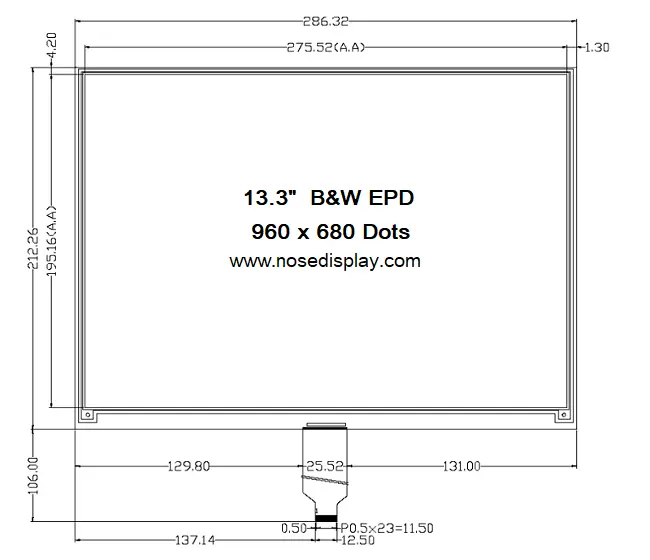

Mechanical Drawing & Interface Definition
Model: ND133EPN960680-A01
Download Center Contact an Engineer
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | NC | -- |
| 02 | GDR | -- |
| 03 | RESE | -- |
| 04 | NC | -- |
| 05 | VSH | -- |
| 06 | TSCL | -- |
| 07 | TSDA | -- |
| 08 | BS1 | -- |
| 09 | BUSY | -- |
| 10 | RES# | -- |
| 11 | D/C# | -- |
| 12 | CS# | -- |
| 13 | SCL | -- |
| 14 | SDA | -- |
| 15 | VDDIO | -- |
| 16 | VCI | -- |
| 17 | VSS | -- |
| 18 | VDD | -- |
| 19 | VPP | -- |
| 20 | VSH1 | -- |
| 21 | VGH | -- |
| 22 | VSL | -- |
| 23 | VGL | -- |
| 24 | VCOM | -- |
Sample Ordering & Delivery
Evaluate ND133EPN960680-A01 13.3-inch engineering samples before integration. Shipping is charged separately; import duties and taxes are excluded. Estimated delivery includes preparation. Confirm final terms before payment.
Sample MOQ
2 pcs per modelMinimum 2 pcs per model.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
13.3 Inch ePaper Display Applications
ND133EPN960680-A01 suits warehouse notices, industrial information panels, room schedules and equipment dashboards. Its monochrome reflective screen supports structured text and status information; select an update strategy after evaluating full and partial refresh behavior for the intended content.
Smart Office Signage
Electronic Shelf Labels
IoT Status Displays
Equipment Labels
Matching Driver Board

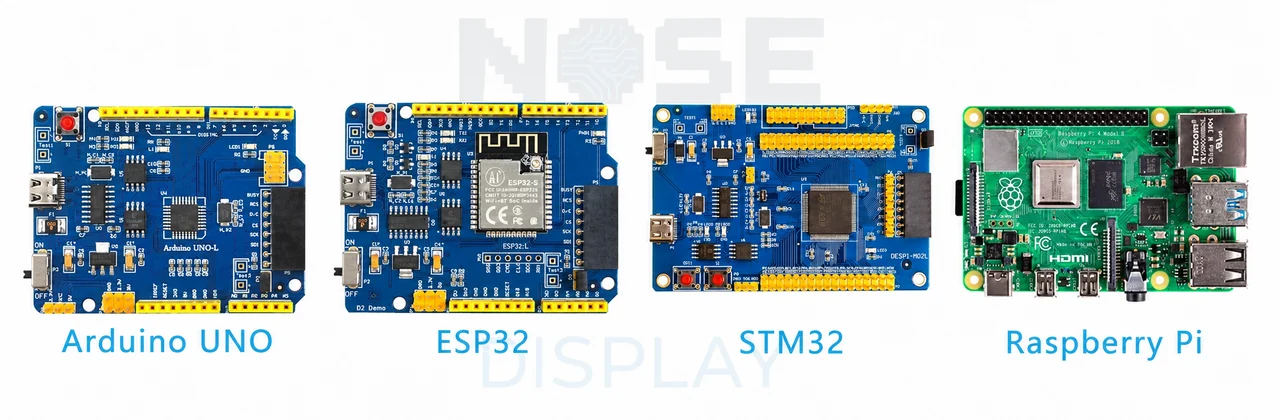

For ND133EPN960680-A01, evaluate SPI driver circuitry for the SSD1677 controller and 24-pin connection. Review logic levels, supply rails, power sequencing, initialization and waveform support, including full and partial refresh behavior for the selected operating conditions. Image conversion and application update control must match 960 × 680 output. Confirm host compatibility, firmware adaptation and board package contents for the intended prototype.
