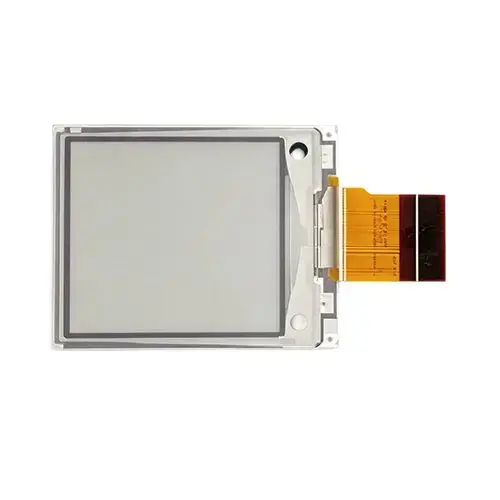

1.54 Inch ePaper Display Overview
The ND015EPN200200-A01 is a 1.54-inch black-and-white E Ink ePaper display with 200 × 200 resolution, an SSD1681 controller and a 24-pin SPI FPC. This reflective, low-power ePaper display retains static images without a backlight between updates. Engineers integrating the bare module should verify the FPC pinout, interface voltage, power sequencing, initialization and waveform requirements before PCB layout or firmware development.
Its compact square panel suits electronic shelf labels, equipment tags, sensor readouts and battery-powered IoT status devices. For ESP32, STM32, Arduino or Raspberry Pi projects, NoseDisplay can evaluate driver-board arrangements and host-specific wiring. OEM reviews may include FPC routing, protective cover lenses, enclosure clearances and prototype testing. Actual ePaper refresh current and standby power consumption depend on the selected drive configuration and require model-specific verification.
The ND015EPN200200-A01 is a 1.54-inch black-and-white E Ink ePaper display with 200 × 200 resolution, an SSD1681 controller and SPI interface. Its reflective square panel suits shelf labels, equipment tags and battery-powered IoT status devices. Engineers should verify 24-pin FPC wiring, driver circuitry, power sequencing and waveform support before connecting an ESP32 or STM32 host. NoseDisplay can review OEM integration and protective cover-lens options.
Technical Specifications

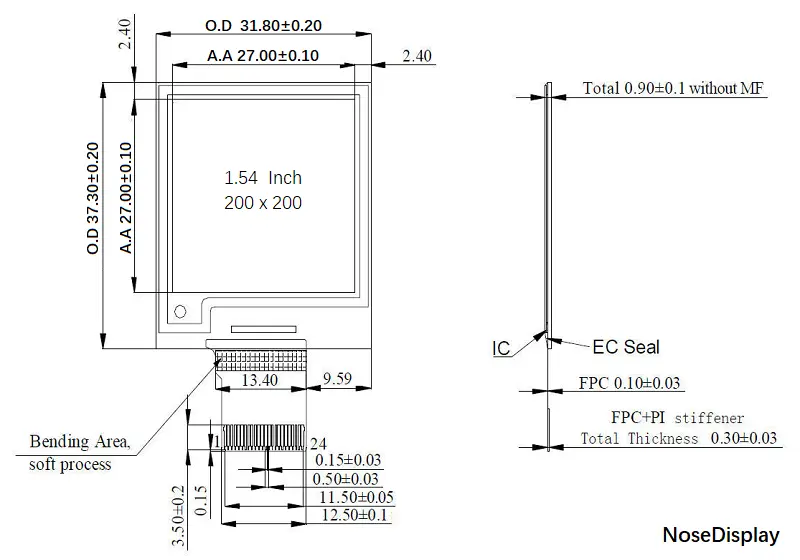

Mechanical Drawing & Interface Definition
Model: ND015EPN200200-A01
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | NC | No connection |
| 02 | GDR | N-Channel MOSFET Gate Drive Control |
| 03 | RSE | Current Sense Input for the Control Loop |
| 04 | NC | No connection |
| 05 | VDH | Positive Source Driving Voltage |
| 06 | GND | Ground |
| 07 | GND | Ground |
| 08 | BS | Bus Selection Pin (3-line/4-line SPI) |
| 09 | BUSY_N | Busy State Output Pin |
| 10 | RST_N | Reset Signal Input (Active Low) |
| 11 | DC | Data/Command Control Pin |
| 12 | CSB | Chip Select Input Pin |
| 13 | SCL | Serial Clock Pin (SPI) |
| 14 | SDA | Serial Data Pin (SPI) |
| 15 | VDDIO | Power for Interface Logic Pins |
| 16 | VDD | Power Supply Pin for the Chip |
| 17 | GND | Ground |
| 18 | VDDD | Core Logic Power Pin |
| 19 | VPP | Power Supply for OTP Programming |
| 20 | VSH | Positive Source Driver Voltage |
| 21 | VGH | Positive Gate Driving Voltage |
| 22 | VSL | Negative Source Driver Voltage |
| 23 | VGL | Negative Gate Voltage |
| 24 | VCOM | VCOM Driving Voltage |
Sample Ordering & Delivery
Order ND015EPN200200-A01 1.54-inch ePaper samples for prototype evaluation and SSD1681 SPI driver testing. Shipping is charged separately; import duties and taxes are excluded. Final delivery estimates are confirmed before payment.
Sample MOQ
3 pcs per modelMinimum 3 pcs per model.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
1.54 Inch ePaper Display Applications
The ND015EPN200200-A01 suits compact electronic shelf labels, equipment identification tags, sensor readouts and status modules in battery-powered IoT systems. Its square E Ink panel supports short text and periodic updates, subject to the host system's refresh and power design.
Electronic Shelf Labels
Smart Home Status
IoT Status Displays
Equipment Labels
Matching Driver Board
For the ND015EPN200200-A01 1.54-inch ePaper display, NoseDisplay can assess SPI driver-board options for the SSD1681 controller and 24-pin FPC. Compact shelf-label and sensor projects require a review of interface levels, panel power sequencing, initialization and waveform support. ESP32, STM32, Arduino or Raspberry Pi hosts need configuration-specific wiring and firmware assessment, including conversion of 200 × 200 images. Board compatibility, software support and sample package contents are confirmed for each project. For battery-powered designs, ePaper refresh current and E Ink display power consumption should be checked under the intended supply voltage, waveform and update schedule before estimating battery life.
Customization Options
OEM evaluation for the 1.54-inch ePaper display can cover 24-pin FPC routing, SSD1681 driver-board selection, cover lenses and compact enclosure fitting.
ePaper & FPC Options
Alternative display sizes, colors and FPC configurations can be evaluated for your project.
Touch Integration
Touch panel options can be evaluated according to enclosure and operating requirements.
Cover Lens Options
Custom cover glass or PMMA lenses with optional printing, shape and surface treatments.
Driver Board Support
Driver board and interface solutions can be evaluated for your host platform.
Quality & Compliance Support
We provide quality and compliance documentation for qualified OEM projects
based on the selected module, BOM and manufacturing configuration.
RoHS
EU RoHS compliant materials and process control
REACH
Support REACH regulation compliance
Reliability Testing
Environmental & mechanical reliability testing reports
ESD Control
ESD protection design and testing capability
Quality System
Manufactured under a certified quality management system
Documentation availability and scope are confirmed according to the selected module, BOM, manufacturing source and project requirements.
