2.66 Inch ePaper Display Overview – E Ink SPI SSD1680

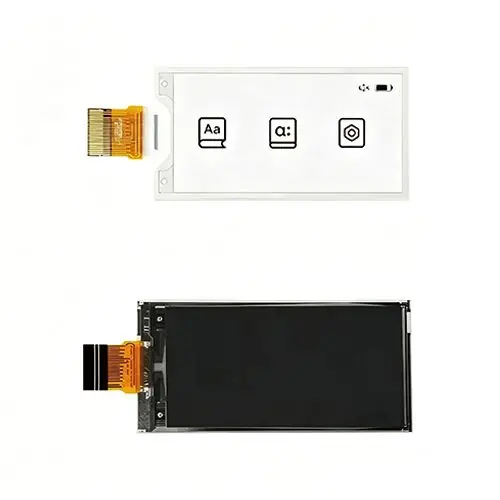

NoseDisplay ND026EPN152296-A01 is a 2.66-inch black-and-white ePaper display with a 152 × 296 E Ink panel, SSD1680 controller and SPI interface. Its elongated format supports narrow information layouts without a backlight. Integrating the bare module requires a suitable driver circuit, verified FPC assignments, logic levels, power sequencing, controller initialization and waveform settings for the selected panel.
Shelf-edge labels, logistics tags, equipment nameplates and battery-powered IoT readouts can use this low-power ePaper display for periodic updates. Check text orientation and enclosure clearances against the mechanical drawing. NoseDisplay can evaluate ESP32 or STM32 host connections and suitable Arduino or Raspberry Pi driver arrangements, with FPC routing, protective lenses and prototype firmware support assessed for each OEM project.
ND026EPN152296-A01 is a 2.66-inch black-and-white E Ink ePaper module with 152 × 296 pixels, an SSD1680 controller and SPI interface. Its narrow format suits shelf labels, logistics tags and battery-powered IoT readouts with periodic updates. Integration requires an appropriate driver circuit, verified pin assignments, power sequencing and panel-specific waveforms. NoseDisplay can evaluate host connections, enclosure fitting and OEM prototype requirements.
Technical Specifications

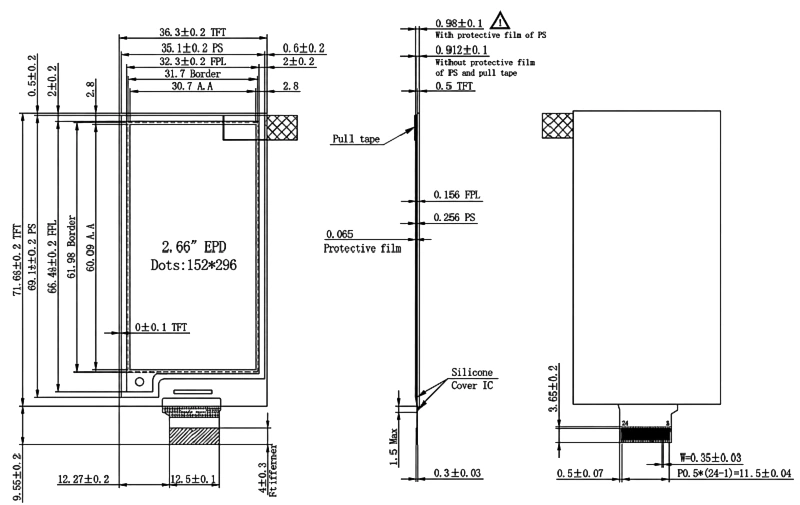

Mechanical Drawing & Interface Definition
Model: ND026EPN152296-A01
Download Center · Contact an Engineer
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | NC | No connection. Leave open; do not connect to other NC pins. |
| 02 | GDR | Gate drive control for an N-channel MOSFET. |
| 03 | RESE | Current-sense input for the control loop. |
| 04 | NC | No connection. Leave open. |
| 05 | VSH2 | Positive source driving voltage. |
| 06 | TSCL | I²C clock to the digital temperature sensor. |
| 07 | TSDA | I²C data to the digital temperature sensor. |
| 08 | BSI | Bus selection pin. |
| 09 | BUSY | Busy status output. |
| 10 | RES# | Reset input, active low. |
| 11 | D/C# | Data/command control: high for data, low for command. |
| 12 | CS# | Chip-select input, active low. |
| 13 | SCL | SPI serial clock. |
| 14 | SDA | SPI serial data. |
| 15 | VDDIO | Interface logic power supply. |
| 16 | VCI | Chip power supply. |
| 17 | VSS | Ground. |
| 18 | VDD | Core logic power supply. |
| 19 | VPP | OTP programming power supply. |
| 20 | VSH1 | Positive source driving voltage. |
| 21 | VGH | Positive gate driving voltage. |
| 22 | VSL | Negative source driving voltage. |
| 23 | VGL | Negative gate driving voltage. |
| 24 | VCOM | VCOM driving voltage. |
Sample Ordering & Delivery
ND026EPN152296-A01 2.66-inch engineering samples support label prototypes and driver evaluation. Shipping is charged separately; duties and taxes are excluded. Estimated delivery includes preparation. Confirm final terms before payment.
Sample MOQ
3 pcs per modelMinimum 3 pcs per model.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
2.66 Inch ePaper Display Applications
ND026EPN152296-A01 fits narrow shelf-edge labels, logistics tags, equipment nameplates and compact IoT readouts. Its 152 × 296 E Ink layout can separate identification text from changing status information in battery-powered products with periodic updates.
Electronic Shelf Labels
Smart Home Status
IoT Status Displays
Equipment Labels
Matching Driver Board
Driver-board evaluation for the ND026EPN152296-A01 2.66-inch ePaper display must match its SSD1680 controller, SPI signals and 24-pin connection. Review supply rails, logic levels, power sequencing, initialization and waveform handling for the selected panel. Shelf-label or tracking-tag projects using ESP32, STM32, Arduino or Raspberry Pi also need a plan for 152 × 296 image preparation and update control. NoseDisplay can assess wiring and firmware requirements; board availability, compatibility and package contents are confirmed for each configuration.
Customization Options
For ND026EPN152296-A01, OEM evaluation can cover narrow enclosure fitting, 24-pin FPC routing, protective lenses and SSD1680 driver-board requirements.
ePaper & FPC Options
Alternative display sizes, colors and FPC configurations can be evaluated for your project.
Touch Integration
Touch panel options can be evaluated according to enclosure and operating requirements.
Cover Lens Options
Custom cover glass or PMMA lenses with optional printing, shape and surface treatments.
Driver Board Support
Driver board and interface solutions can be evaluated for your host platform.
Quality & Compliance Support
We provide quality and compliance documentation for qualified OEM projects
based on the selected module, BOM and manufacturing configuration.
RoHS
EU RoHS compliant materials and process control
REACH
Support REACH regulation compliance
Reliability Testing
Environmental & mechanical reliability testing reports
ESD Control
ESD protection design and testing capability
Quality System
Manufactured under a certified quality management system
Documentation availability and scope are confirmed according to the selected module, BOM, manufacturing source and project requirements.
