5.83 Inch ePaper Display Overview
ND058EPN648480-A01 is a 5.83-inch black-and-white ePaper display with a 648 × 480 reflective E Ink panel, UC8179 controller and SPI interface. It retains an image between updates without a backlight, suiting periodically refreshed information. The 24-pin FPC requires suitable driver circuitry; verify supply levels, power sequencing, controller initialization and supported waveforms before host PCB layout or firmware integration.
Industrial status panels, smart home dashboards, warehouse labels and energy monitoring terminals can use its landscape information area. Evaluate text size, mounting orientation and refresh scheduling against the application. NoseDisplay can assess ESP32 or STM32 host connections and suitable Raspberry Pi or Linux single-board-computer driver arrangements, with FPC routing, enclosure clearances, cover lenses and optional touch requirements reviewed for OEM prototypes.
ND058EPN648480-A01 is a 5.83-inch 648 × 480 black-and-white E Ink ePaper module with UC8179, SPI and a 24-pin FPC. It suits industrial status panels, warehouse labels and energy monitoring terminals with periodic updates. Integration requires matched driver circuitry, verified supply levels, power sequencing, initialization and panel-specific waveforms. NoseDisplay can review ESP32 or STM32 host connections, image conversion and OEM enclosure requirements.
Technical Specifications

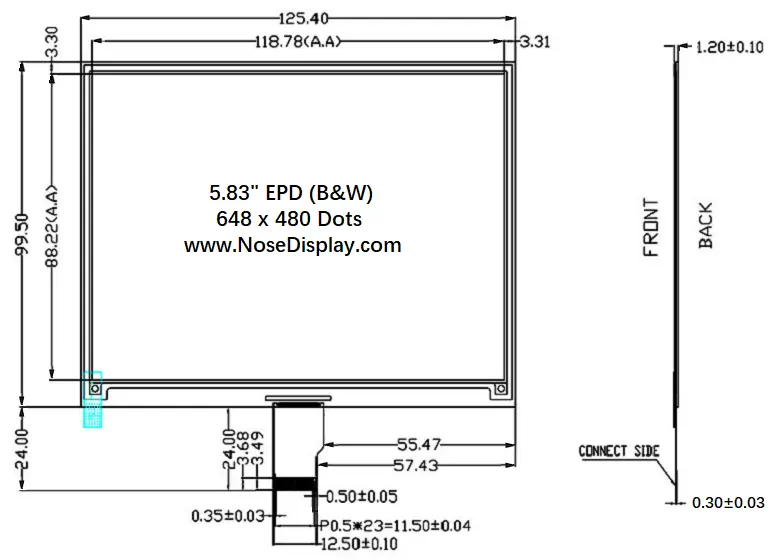

Mechanical Drawing & Interface Definition
Model: ND058EPN648480-A01
Download Center Contact an Engineer
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 01 | NC | Do not connect with other NC pins. Keep open. (I/O: —) |
| 02 | GDR | N-Channel MOSFET Gate Drive Control. (I/O: O) |
| 03 | RESE | Current Sense Input for the Control Loop. (I/O: I) |
| 04 | NC | Do not connect with other NC pins. Keep open. (I/O: NC) |
| 05 | VSH2 | Positive Source driving voltage 2. (I/O: C) |
| 06 | TSCL | I²C Interface to digital temperature sensor Clock pin. This pin connects to VSS. (I/O: NC) |
| 07 | TSDA | I²C Interface to digital temperature sensor Data pin. This pin connects to VSS. (I/O: NC) |
| 08 | BS1 | Bus Interface selection pin. (Note 5-5) (I/O: I) |
| 09 | BUSY | Busy state output pin. (Note 5-4) (I/O: O) |
| 10 | RES# | Reset signal input. Active Low. (Note 5-3) (I/O: I) |
| 11 | D/C# | Data /Command control pin. (Note 5-2) (I/O: I) |
| 12 | CS# | Chip select input pin. (Note 5-1) (I/O: I) |
| 13 | SCL | Serial Clock pin (SPI). (I/O: I) |
| 14 | SDA | Serial Data pin (SPI). (I/O: I/O) |
| 15 | VDDIO | Power Supply for interface logic pins. It should be connected with VCI. (I/O: P) |
| 16 | VCI | Power Supply for the chip. (I/O: P) |
| 17 | VSS | Ground. (I/O: P) |
| 18 | VDD | Core logic power pin. VDD can be regulated internally from VCI. A capacitor should be connected between VDD and VSS. (I/O: C) |
| 19 | VPP | For test. Keep open. (I/O: P) |
| 20 | VSH1 | Positive Source driving voltage. (I/O: C) |
| 21 | VGH | Power Supply pin for Positive Gate driving voltage and VSH1. (I/O: C) |
| 22 | VSL | Negative Source driving voltage. (I/O: C) |
| 23 | VGL | Power Supply pin for Negative Gate driving voltage, VCOM and VSL. (I/O: C) |
| 24 | VCOM | VCOM driving voltage. (I/O: C) |
Sample Ordering & Delivery
ND058EPN648480-A01 5.83-inch engineering samples support prototypes and driver evaluation. Shipping is charged separately; duties and taxes are excluded. Estimated delivery includes preparation. Confirm final terms before payment.
Sample MOQ
3 pcs per modelMinimum 3 pcs per model.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
5.83 Inch ePaper Display Applications
ND058EPN648480-A01 suits industrial equipment status panels, smart home dashboards, warehouse inventory labels and energy monitoring terminals. Its reflective monochrome image area can present measurements and periodic status updates in low-power systems, with mounting orientation and text readability assessed during evaluation.
Electronic Shelf Labels
Smart Home Status
IoT Status Displays
Equipment Labels
Matching Driver Board
For ND058EPN648480-A01, driver-board evaluation must match the UC8179 controller, SPI signals and 24-pin FPC. Review supply rails, logic levels, power sequencing, initialization and panel-specific waveform support. Plan 648 × 480 image conversion and application refresh control for ESP32, STM32, Arduino or Raspberry Pi hosts. NoseDisplay can assess wiring and firmware requirements; board availability, electrical compatibility and package contents are confirmed for the selected configuration.
Customization Options
OEM review for ND058EPN648480-A01 can cover 24-pin FPC routing, SPI driver-board adaptation, protective cover lenses, enclosure clearances and optional touch integration. Prototype firmware and refresh requirements are assessed for the intended industrial dashboard or monitoring terminal.
ePaper & FPC Options
Alternative display sizes, colors and FPC configurations can be evaluated for your project.
Touch Integration
Touch panel options can be evaluated according to enclosure and operating requirements.
Cover Lens Options
Custom cover glass or PMMA lenses with optional printing, shape and surface treatments.
Driver Board Support
Driver board and interface solutions can be evaluated for your host platform.
