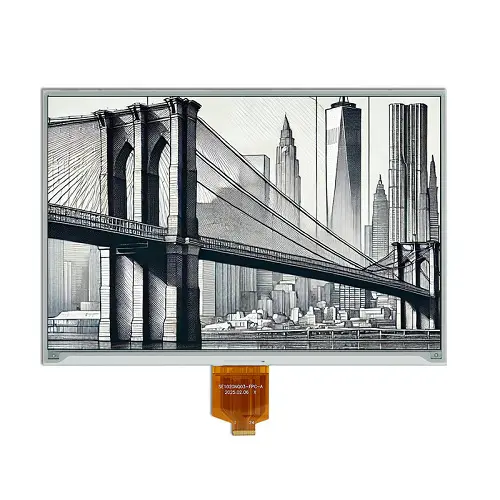

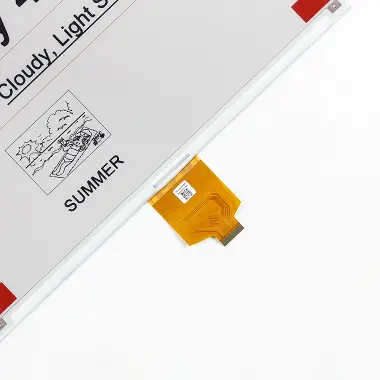

10.2 Inch ePaper Display Overview
ND102EPN960640-B01 is a 10.2-inch black, white and red ePaper display with a 960 × 640 reflective E Ink panel, SSD1677 controller and SPI interface. Its landscape layout provides space for information boards with highlighted warnings or labels. Integration requires review of the 24-pin connection, supply levels, power sequencing, controller initialization and waveform settings for the intended operating environment.
This low-power ePaper display suits warehouse notices, production information, room schedules and equipment status boards where content changes periodically. ESP32, STM32 or Raspberry Pi host designs can be evaluated with suitable driving hardware and firmware. NoseDisplay can review image conversion, FPC routing, enclosure dimensions, cover lens and optional touch requirements before OEM prototype development; full system power consumption depends on the selected design.
ND102EPN960640-B01 is a 10.2-inch 960 × 640 black, white and red E Ink ePaper display with SPI and an SSD1677 controller. Its landscape format suits warehouse notices, production information and equipment status boards. Integration requires suitable driving hardware, 24-pin wiring, supply checks, initialization and waveform support. NoseDisplay can evaluate host firmware, image conversion, cover lens dimensions and OEM enclosure requirements.
Optional four-color version: A black, white, red and yellow version with an SSD267 controller is available at an additional cost of approximately US$10 per module.
Technical Specifications

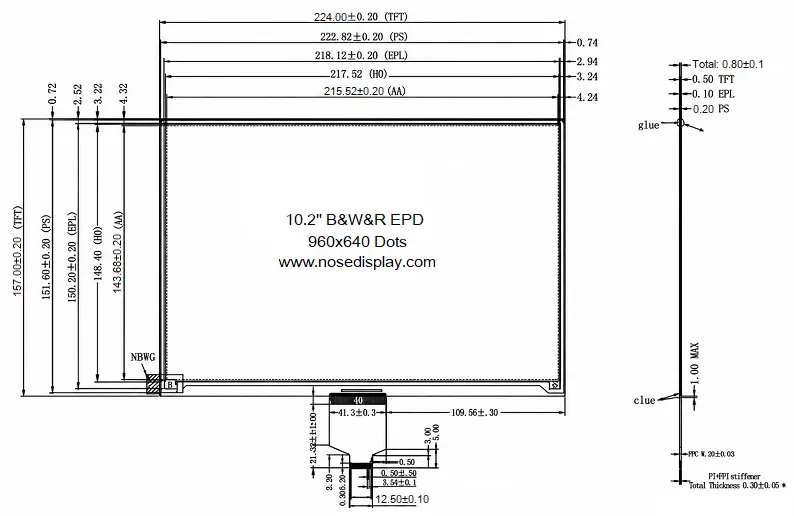

Mechanical Drawing & Interface Definition
Model: ND102EPN960640-B01
PIN Description
| Pin No. | Symbol | Description |
|---|---|---|
| 1 | NC | Do not connect with other NC pins; keep open |
| 2 | GDR | N-channel MOSFET gate drive control |
| 3 | RESE | Current sense input for the control loop |
| 4 | NC | Do not connect with other NC pins; keep open |
| 5 | VSH2 | Positive source driving voltage (red) |
| 6 | TSCL | I²C interface to digital temperature sensor: clock pin |
| 7 | TSDA | I²C interface to digital temperature sensor: data pin |
| 8 | BS1 | Bus interface selection pin |
| 9 | BUSY | Busy state output pin |
| 10 | RES# | Reset signal input, active low |
| 11 | D/C# | Data / command control pin |
| 12 | CS# | Chip select input pin |
| 13 | SCL | Serial clock pin (SPI) |
| 14 | SDA | Serial data pin (SPI) |
| 15 | VDD/VDDIO | Power supply for interface logic pins; connect to VCI |
| 16 | VDD/VCI | Power supply for the chip |
| 17 | VSS | Ground |
| 18 | VDDD | Core logic power, internally regulated from VCI; connect a capacitor between VDDD and VSS |
| 19 | VPP | For test |
| 20 | VSH1 | Positive source driving voltage |
| 21 | VGH | Power supply for positive gate driving voltage and VSH1 |
| 22 | VSL | Negative source driving voltage |
| 23 | VGL | Power supply for negative gate driving voltage, VCOM and VSL |
| 24 | VCOM | VCOM driving voltage |
Sample Ordering & Delivery
Evaluate ND102EPN960640-B01 10.2-inch engineering samples before integration. Shipping is charged separately; import duties and taxes are excluded. Estimated delivery includes preparation. Confirm final terms before payment.
Sample MOQ
2 pcs per modelMinimum 2 pcs per model.
Preparation Time
4 daysAfter order and payment confirmation.
Standard Delivery
Shipping Fee
Transit Time: ～11 days
Total Time: ～15 days
Express Delivery
Shipping Fee
Transit Time: ～4 days
Total Time: ～8 days
10.2 Inch ePaper Display Applications
ND102EPN960640-B01 suits warehouse notices, production information boards, room schedules and equipment status displays. Its black, white and red landscape panel supports periodically updated information with color highlights for labels, alerts or priorities.
Smart Office Signage
Electronic Shelf Labels
IoT Status Displays
Equipment Labels
Matching Driver Board
For ND102EPN960640-B01, evaluate an SPI driver solution matched to the SSD1677 controller and 24-pin connection. Review supply requirements, power sequencing, initialization, waveform configuration and image conversion before selecting host firmware. ESP32, STM32 or Raspberry Pi integration requires suitable driving hardware; board compatibility, availability and package contents must be confirmed for the selected project.
Customization Options
For ND102EPN960640-B01 three-color information boards, NoseDisplay can evaluate FPC routing, SPI driving hardware, enclosure fit, cover lens and optional touch requirements. Prototype and OEM configurations are reviewed separately for the intended application.
ePaper & FPC Options
Alternative display sizes, colors and FPC configurations can be evaluated for your project.
Touch Integration
Touch panel options can be evaluated according to enclosure and operating requirements.
Cover Lens Options
Custom cover glass or PMMA lenses with optional printing, shape and surface treatments.
Driver Board Support
Driver board and interface solutions can be evaluated for your host platform.
